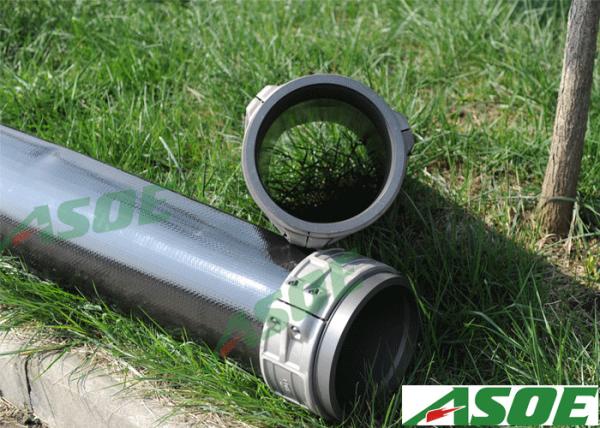

TPU Lay Flat Discharge Hose With Couplings Long Distance Water Transfer
TPU Lay Flat Discharge Hose With Couplings Long Distance Water Transfer
Specifications
Brand Name :
ASOE
Model Number :
Mileflex
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
Lay Flat Discharge Hose
Inner tube and cover :
Smooth PU cover and tube
Reinforcement :
Circular woven polyester jacket
Operating Temperature Range :
From -60° F to 176° F (-50° C to 80° C)
Couplings :
LDHC V couplings, LDHC FM Couplings, LDHC S (Storz) Couplings, etc.
Standard Length :
50ft, 100ft, 300ft/91.5m, 330ft/100m, 660ft/200m; other lengths available per request
Warranty :
5 years guarantee
Description

TPU Lay Flat Discharge Hose With Couplings Long Distance Water Transfer

TPU Lay Flat Discharge Hose with Couplings Long Distance Water Transfer 8inch 215psi 660ft

MILEFLEX PU LAYFLAT HOSES

This hose is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties.
The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation.
The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines.
The outer cover has been designed with extra thickness in order to add wear & tear material. This extends the useful lifespan of the hose.
The circular woven filament polyester reinforcement ensures very high tensile strength and facilitates easy towing with tractors without risk of damage.
The interlocking weave prevents the hose from lengthwise extension when pulled or pressurized.
This avoids delamination of cover or lining from the woven reinforcement and minimizes "snaking" and twisting.
This hose can operate in a temperature range from -58 F deg to +167 F deg and can withstand intermittent use up to +176 F deg.
Standard lengths up to 660ft (200 meters). Longer lengths available on request.

1. Extra abrasion resistance for rugged terrain and extreme conditions

2. Puncture resistant

3. Oil and chemicals resistant

4. UV resistant

5. Smooth surfaces for easy wash down.

Comparable to

Super Aquaduct of Angus, Mineflex of Hose solutions Inc., Superman HVT of Mandals

TPU Lay Flat Discharge Hose With Couplings Long Distance Water Transfer

Mileflex™TPU Layflat Hose
ID
Wall Thickness
Weight
Working Pressure
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
bar
PSI
bar
8
204+3.0
0.175
4.5
2.3
3.43
215
15
645
45
10
254+3.0
0.18
4.6
3.08
4.59
200
14
600
42
12
305+3.0
0.185
4.7
3.36
5.01
150
10
450
30

Couplings: LDHC V couplings, LDHC FM Couplings, LDHC S (Storz) Couplings, etc.
Application: Suitable for use and recommended for frac water transferring, dewatering in mining and water transfer in harsh environment.
