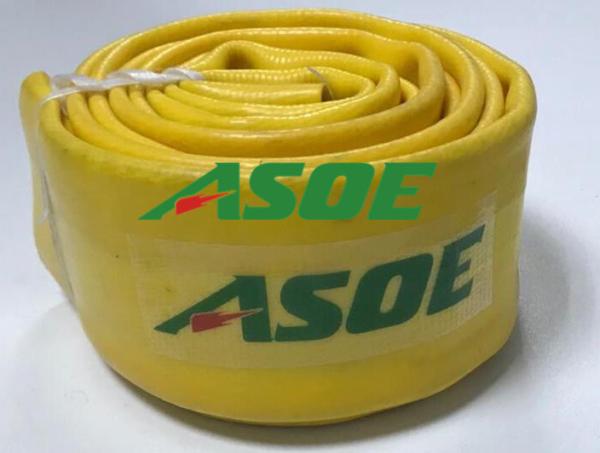

NBR Heavy Duty Discharge Hose For Water Discharge High Tensile Strength
NBR Heavy Duty Discharge Hose For Water Discharge High Tensile Strength
Specifications
Brand Name :
ASOE
Model Number :
Wovenflex
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
PVC Layflat Hose
Raw Material :
PVC and Nitrile Rubber Compound
Reinforcement :
Circular woven polyester jacket
Standard Color :
Yellow or Black or Others
Standard Length :
100, 300,330 , etc
Operating Temperature Range :
-40° To 150°F (-40° To 65°C)
Description

PVC / NBR Compound Layflat Hose Abrasion Resistance Heavy Duty

Product Application

• Water Discharge

• Temporary installations (by-passes)

• Construction

• Irrigation

Product Introduction

Wovenflex shall be made from 100% high tenacity synthetic yarn circular woven and completely, protected and locked-in by tough highly resistant synthetic nitrile rubber, forming a single homogenous construction without the use of glues or adhesives of any type.

♦ Construction: Circular polyester weave extruded internally and externally with PVC-NBR.

♦ Inner tube: Very smooth with minimum friction loss

♦ Cover: Smooth cover for flexibility and abrasion resistant

♦ Reinforcement: Circular woven polyester jacket

Product Features

Color: Yellow, other colors are available

Elongation at WP:<1.5%

Expansion at WP:<5%

Temperature range:-40° to 150°F (-40° to 65°C)

Standard Length: 50ft, 100ft, 300ft/91.5m, 330ft/100m, 660ft/200m, other length available per request

Product Specification

Wovenflex PVC/NBR Layflat Hoses
Nominal ID Wall thickness Weight Pressure rating
Inches mm Inches mm lbs/ft kg/m psi/bar
1 1/2" 38 0.09 2.2 0.2 0.3 250psi/17bar,200psi/14bar
2" 52 0.11 2.7 0.33 0.49 250psi/17bar, 200psi/14bar
2 1/2" 64 0.12 2.9 0.42 0.63 250psi/17bar, 200psi/14bar
3" 78 0.12 3 0.48 0.72 250psi/17bar, 200psi/14bar
4" 104 0.13 3.2 0.75 1.12 200psi/14bar, 150psi/10bar
6" 154 0.16 3.9 1.5 2.24 200psi/14bar, 150psi/10bar
8" 205 0.17 4.4 2.25 3.36 150psi/10bar
10" 255 0.18 4.5 3 4.47 150psi/10bar
12" 305 0.18 4.5 3.2 4.92 150psi/10bar
