Synthetic 1.07KG/M 78MM 3 Pvc Lay Flat Discharge Hose Pipe
Synthetic 1.07KG/M 78MM 3 Pvc Lay Flat Discharge Hose Pipe
Specifications
Brand Name :
ASOE
Model Number :
Wovenflex Extra
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P, MoneyGram
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Pallet, Carton, Wooden Carton, Other Standard Export Package
Product Name :
PVC Lay-Flat Discharge Hose
Raw Material :
PVC and NBR Rubber Compound
Operating Temperature Range :
From -36° F to 178° F (-37° C to 81° C)
Standard Length :
50, 100, 300,330ft , etc
Elongation at WP :
<1.5%
Expansion at WP :
<5%
Description

3" PVC Lay-Flat Discharge Hose, duty PVC hose for farm irrigation

Synthetic 1.07KG/M 78MM 3

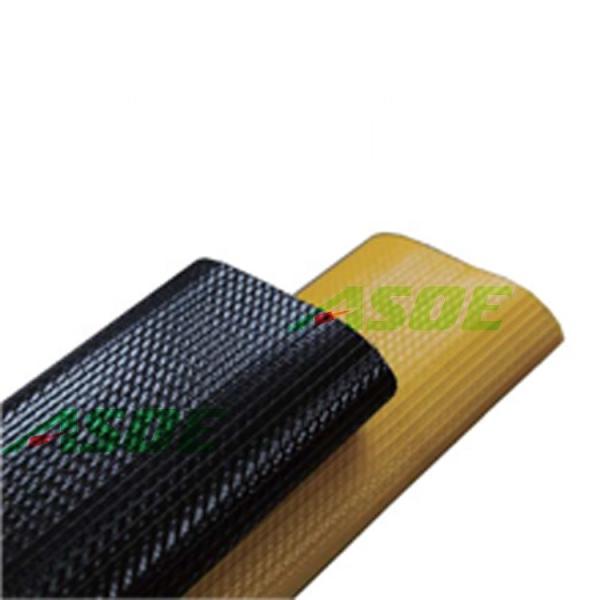

Wovenflex Extra is one type of “through-the-weave” heavy duty PVC/NBR layflat hose.

This hose features a unique one-piece, through-the-weave construction and attains its higher working pressure from a synthetic woven polyester reinforcement than Spiral plies; its excellent durability is derived from a high-tensile PVC/NBR rubber compound, which completely encases the jacket.

The ribs on the cover surface greatly increase abrasion resistance.

Construction: Circular polyester weave extruded internally and externally with PVC-NBR.

Hose shall be made from 100% high tenacity synthetic yarn circular woven and completely, protected and locked-in by tough highly resistant synthetic nitrile rubber, forming a single homogenous construction without the use of glues or adhesives of any type.

ribbed cover for flexibility and abrasion resistant.
Color: Black, Yellow or Red
Temperature range:--40° to 150°F (-40° to 65°C)
Elongation at WP:<1.5%
Expansion at WP:<5%

Standard Length: 50ft, 100ft, 300ft, 330ft, 20m, 30m, 91.5m, 100m etc.

Synthetic 1.07KG/M 78MM 3

Nominal ID

Wall thickness

Weight

Working Pressure

Inches

mm

Inches

mm

lbs/ft

kg/m

psi/bar

1 1/2"

39

0.11"

2.9

0.33

0.49

250psi/17bar, 200psi/14bar

2"

52

0.12"

3.0

0.42

0.62

250psi/17bar, 200psi/14bar

2 1/2"

64

0.12"

3.0

0.60

0.90

250psi/17bar, 200psi/14bar

3"

78

0.13"

3.4

0.72

1.07

250psi/17bar, 200psi/14bar

4"

104

0.14"

3.5

0.89

1.32

200psi/14bar, 150psi/10bar

6"

155

0.15"

3.9

1.51

2.25

150psi/10bar, 200psi/14bar

8"

204

0.17"

4.2

2.40

3.62

150psi/10bar, 200psi/14bar

10"

254

0.17"

4.2

3.10

4.52

150psi/10bar

Synthetic 1.07KG/M 78MM 3

Application: suitable for agricultural irrigation, mining, industrial and construction water discharge, water transfer for quarries, relay supply lines, portable hydrants etc.

♦ Water Discharge

♦ Temporary installations (by-passes)

♦ Construction

♦ Agricultural Irrigation Solutions
♦ Industrial Water Discharge Solutions
♦ Mining Dewatering Solutions
Others

Comparable to: Oroflex 10, Oroflex 20 etc.
