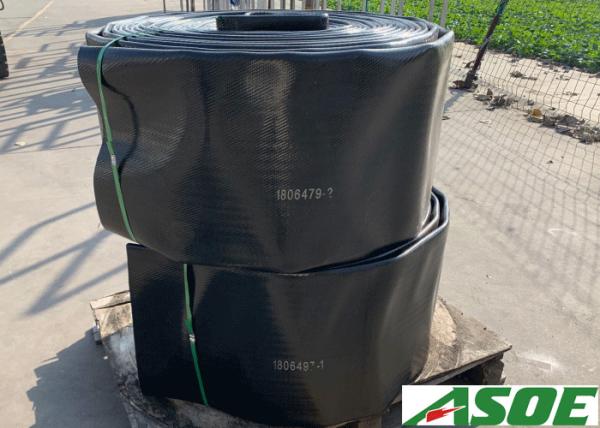

12 Inch TPU Lay Flat Water Transfer Hose 10 Bar Working Pressure Smooth PU Cover
12 Inch TPU Lay Flat Water Transfer Hose 10 Bar Working Pressure Smooth PU Cover
Specifications
Brand Name :
ASOE
Model Number :
Mileflex
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
PU layflat Water hose
Raw Material :
Polyurethane
Application :
frac water transferring, etc
Operating Temperature Range :
From -60° F to 176° F (-50° C to 80° C)
Standard Length :
300,330,660ft, etc
Description

12 Inch TPU Lay Flat Water Transferring Hose 10bar Working Pressure

PRODUCT INTRODUCTION

12 Inch TPU Lay Flat Water Transferring Hose 10bar Working Pressure

Mileflex is one type of super heavy-duty through-the-weave polyurethane (PU) covered hose.

Mileflex hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.

  • Inner tube and cover: Smooth PU cover and tube.
  • Reinforcement: Circular woven polyester jacket
  • Operating Temperature Range: From -60° F to 176°F (-50° C to 80° C)
  • Standard Color: Black, other colors available per request
  • Standard Length: 50ft, 100ft, 300ft/91.5m, 330ft/100m, 660ft/200m; other lengths available per request;
  • Couplings: LDHC V couplings, LDHC FM Couplings, LDHC S (Storz) Couplings, etc.
  • Warranty: 5 years guarantee

PRODUCT PARAMETER

Mileflex™TPU Layflat Hose
ID
Wall Thickness
Weight
Working Pressure
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
bar
PSI
bar
3
76+2.0
0.12
3
0.5
0.75
250
17
750
51
4
103+2.0
0.13
3.2
0.78
1.16
250
17
750
51
6
154+2.5
0.17
4.2
1.56
2.33
200
14
600
42
8
204+3.0
0.175
4.5
2.3
3.43
215
15
645
45
10
254+3.0
0.18
4.6
3.08
4.59
200
14
600
42
12
305+3.0
0.185
4.7
3.36
5.01
150
10
450
30

PRODUCT APPLICATION

  • Frac water transferring
  • Dewatering in mining
  • Water transfer in harsh environment
  • Long distance water transferring
