Lay Flat Water Pump Delivery Pipe Water Well Hose 39mm Inner Diameter NSF61
Lay Flat Water Pump Delivery Pipe Water Well Hose 39mm Inner Diameter NSF61
Specifications
Brand Name :
ASOE
Model Number :
Welline
Certification :
ISO, NSF61
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A, D/P, MoneyGram, PayPal
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Pallet, Wooden Case, Carton with Pallet, other Standard Export Package
Product Name :
Lay Flat Water Pump Discharge Hose
Raw Material :
BASF Polyurethane
Standard :
NSF 61，ISO
Standard Color :
Blue or others
Warranty :
5 years guarantee
Application :
groundwater abstraction in a borehole, Mining dewatering
ID :
1 inch to 8 inch
Working Pressure :
20 bar to 30 bar
Description

1.5 Inch Lay Flat Water Pump Discharge Hose 39mm Inner Diameter

Welline is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties. The reinforcement is made from circular woven filament polyester yarn. The "extrusion through the weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.

The structure of Welline ensures that exposure to seawater and contamination by most chemical substances, hydrocarbons, oils, alkalis, acids and greases have no effect on the short or long term performance of Welline hoses.

Welline is approved according to NSF 61 standard.

Structure

Inner tube and cover: Smooth PU cover and tube. One strip of reinforced polyurethane on the side of cover to support the electrical cables and accessories
Reinforcement: Circular woven polyester jacket
Standard Color: Blue, other colors available per request
Couplings: Stainless steel couplings with BSP thread,etc.
Standard Length: 300ft/91.5m, 330ft/100m,660ft/200m; other lengths available per request;
Operating Temperature Range: From -60° F to 176° F(-50° C to 80° C)
Advantages
■ No joints between pumps and well head
■ No corrosion
■ No bacteria growth

■No money and time to waste on transporting, installing and maintaining rising main

Technical Specification on Welline

Welline™ PU Layflat Hoses
ID
Wall Thickness
Weight
Working Pressure
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
bar
Kg
Lbs
1 1/2
39+1.5
0.1
2.4
0.22
0.33
425
30
920
65
2
52+1.5
0.1
2.4
0.37
0.55
425
30
920
65
2 1/2
65+1.5
0.11
2.9
0.41
0.61
425
30
920
65
3
77+2.0
0.1
2.5
0.64
0.95
390
27
860
60
4
104+2.0
0.13
3
0.94
1.4
380
26
840
58
5
128+2.0
0.15
3.8
1.14
1.7
360
25
800
55
6
155+2.5
0.15
3.8
1.68
2.5
360
25
800
55
8
204+3.0
0.17
4.3
2.3
3.4
260
18
645
45
Flexible Rising Pipe Solution
Couplings

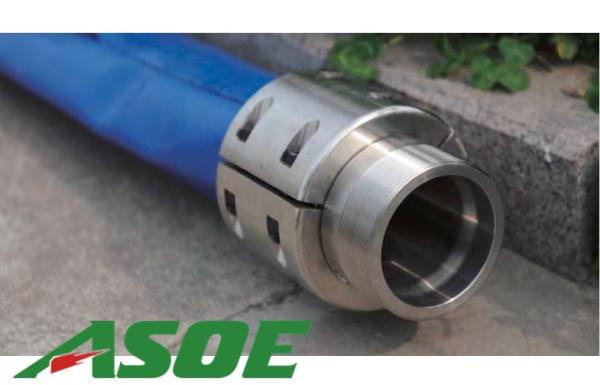

Stainless Steel 316L Couplings
No corrosion
Well Head
made of carbon steel Anti-rust Processed
Elbow
made of carbon steel Anti-rust Processed

Applications
Mining Dewatering

Fresh Water Supply Solutions in mines
Water utilities
Agriculture
Groundwater rising
Sports field, playgrounds and parks

Installation

1. Assemble Weline HP hoses with WLHC coupling
2. Connecting WLHC coupling with submersible pumps
3. Attach power cable using Welline HP cable Straps
4. Hang Welline HP hose and pump
5. Lower Welline HP hose and pump into well
6. Assemble the other end of hose with WLHC coupling
7. Connecting WLHC coupling with well head base
8. Fix well head base
9. Install elbows, valve and other output pipes

For some large boreholes, vehicles and cranes are required to assist installation.
