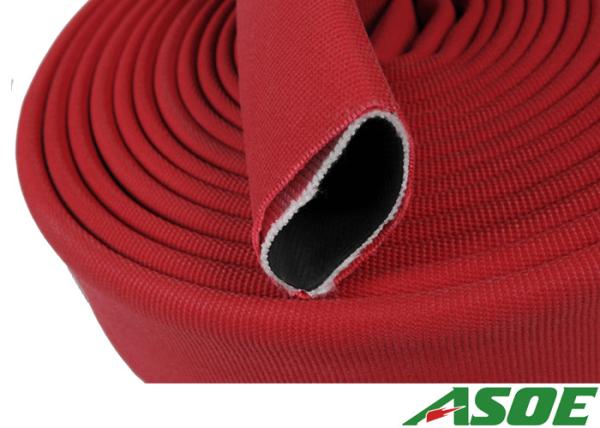

EPDM Lined Red Red Lay Flat Fire Hose Abrasion Resistance Plain Weave
EPDM Lined Red Red Lay Flat Fire Hose Abrasion Resistance Plain Weave
Specifications
Brand Name :
ASOE
Model Number :
Ironman AED
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
Lay Flat Fire Hose
Inner tube :
EPDM rubber lining
Jacket :
Double Jacket
Operating Temperature Range :
-40° to 150°F (-40° to 65°C)based on water
Standard Color :
White (no coating), yellow, red, other colors (coated with Durablux™)
Standard Length :
50ft, 1Couplings: Aluminum or Brass NH/NST couplings, Storz couplings for supply hoses00ft; other lengths
Couplings :
Aluminum or Brass NH/NST couplings, Storz couplings for supply hoses
Description

EPDM Rubber Lined Lay Flat Fire Hoses Double Jackets 3inch 400psi

Ironman AED is designed for fire-fighting application in compliance with American standards. Ironman AED is recommended for American market, Asian market etc. Small ID Ironman AED are also called as attack hoses and large ID Ironman AED are also called as supply hoses. Ironman AED is a polyester double jackets style hose with an EPDM rubber lining that can also handle some chemicals and petroleum based products. It can be coated with Asoe's optional Polyurethane-based Durablux™ treatment for a higher level of heat and abrasion resistance.

Inner tube: EPDM rubber lining
Jacket: Double jackets, circular woven polyester jacket, plain weave, warp yarn is made of spun polyester yarn, strips available per request
Operating Temperature Range: -40° to 150°F (-40° to 65°C)based on water
Standard Color: White (no coating), yellow, red, other colors (coated with Durablux™) available per request.
Standard Length: 50ft, 100ft; other lengths available per request;
Couplings: Aluminum or Brass NH/NST couplings, Storz couplings for supply hoses
Standards: Meets or exceeds NFPA 1961, UL19, FM2111 etc.

Ironman™AED EPDM lined Fire Hoses, double Jackets
ID
Working Pressure
Bursting Pressure
Inch
mm
psi
bar
psi
bar
1 1/2
38+1.5
300,400
21,28
900/1200
63,84
1 3/4
45+1.5
300,400
21,28
900/1200
63,84
2
51+1.5
300,400
21,28
900/1200
63,84
2 1/2
64.1.5
300,400
21,28
900/1200
63,84
3
76+2.0
300,400
21,28
900/1200
63,84
4
104+2.0
300
21
900
63
5
128+2.0
300
21
900
63
6
155+2.0
30
21
900
63

Application: Suitable for military, industrial and municipal fire brigades etc.

Recommended for:
Chemical Transfer Solutions
Fire Fighting Solutions
