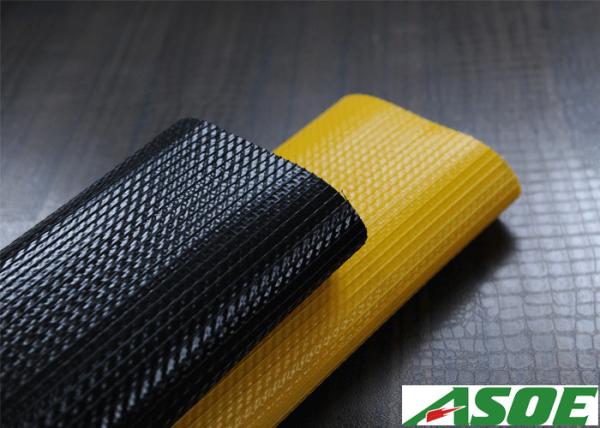

10 Bar Flat PVC Pipe , PVC Flat Hose Pipe With Circular Woven Polyester Jacket
10 Bar Flat PVC Pipe , PVC Flat Hose Pipe With Circular Woven Polyester Jacket
Specifications
Brand Name :
ASOE
Model Number :
Wovenflex Extra
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
PVC Layflat Hose
Raw Material :
PVC and NBR Rubber Compound
Application :
agricultural irrigation, water discharge, etc
Operating Temperature Range :
From -36° F to 178° F (-37° C to 81° C)
Standard Color :
Yellow or Black or Others
Standard Length :
100, 300,330 , etc
Reinforcement :
Circular woven polyester jacket
Description

PVC / NBR Rubber Compound Layflat Hose Abrasion Resistance 10inch 10bar

Wovenflex Extra is one type of “through-the-weave” heavy duty PVC/NBR layflat hose. This hose features a unique one-piece, through-the-weave construction and attains its higher working pressure from a synthetic woven polyester reinforcement than Spiral plies; its excellent durability is derived from a high-tensile PVC/NBR rubber compound, which completely encases the jacket. The ribs on the the cover surface greatly increase abrasion resistance.

Designed for water discharge for irrigation,mining, quarries, industrial use, construction

1. Inner tube and cover: PVC/NBR compound, smooth cover, both tube and cover are co-extruded to obtain maximum bending.
2. Reinforcement: Circular woven polyester jacket
3. Operating Temperature Range: From -36° F to 178° F (-37° C to 81° C)
4. Standard Color: Yellow, other colors available per request
5. Standard Length: 50ft, 100ft, 300ft/91.5m, 330ft/100m; other lengths available per request.

Wovenflex™ Extra Heavy Duty PVC/NBR Layflat Hose
ID
Wall Thickness
Weight
Working Pressure
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
Bar
PSI
Bar
4
103+2.0
0.13
3.2
0.87
1.29
150,200
10,14
450,600
30,42
6
155+2.5
0.15
3.8
1.5
2.24
150,200
10,14
450,600
30,42
8
204+3.0
0.16
4
2.4
3.5
150
10
450

30
10
255+3.0
0.17
4.2
2.89
4.32
150
10
450
30

Application: suitable for agricultural irrigation, mining, industrial and construction water discharge, water transfer for quarries, relay supply lines, portable hydrants etc.
