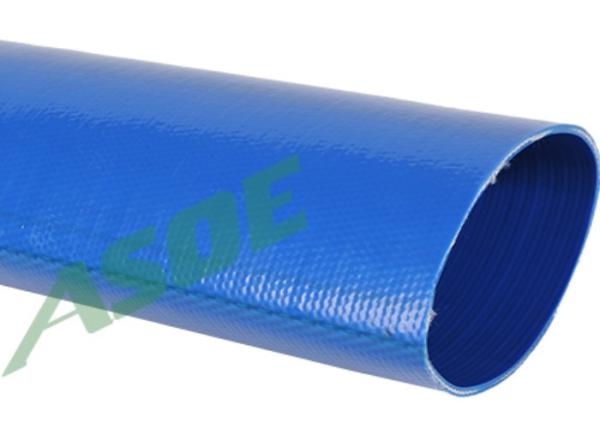

1 1 / 2 - 8 Marine Fresh Water Hose , Lay Flat Type TPE-P Industrial Hose Pipe
1 1 / 2 - 8 Marine Fresh Water Hose , Lay Flat Type TPE-P Industrial Hose Pipe
Specifications
Brand Name :
ASOE
Model Number :
Polyriser
Certification :
ISO, NSF 61
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
Water Transfer Hose
Inner tube and cover :
Smooth TPE-P cover and tube
Reinforcement :
Circular woven polyester jacket
Operating Temperature Range :
From -60° F to 176° F (-50° C to 80° C)
ID :
1 1 / 2inch - 8inch
Wall Thickness :
0.10inch - 0.17inch
Description

1 1 / 2

ID
Wall Thickness
Weight
Working
Pressure
Bursting
Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
bar
PSI
bar
1 1/2
39+1.5
0.1
2.4
0.21
0.32
425
30
920
65
2
52+1.5
0.1
2.4
0.35
0.52
425
30
920
65
2 1/2
65+1.5
0.11
2.9
0.39
0.58
425
30
920
65
3
77+2.0
0.1
2.5
0.61
0.9
390
27
860
60
4
104+2.0
0.13
3
0.89
1.33
380
26
840
58
5
128+2.0
0.15
3.8
1.09
0.62
360
25
800
55
6
155+2.5
0.15
3.8
1.6
2.38
360
25
800
55
8
204+3.0
0.17
4.3
2.17
3.23
260
18
645
45

1 1 / 2
Inner tube and cover: Smooth TPE-P cover and tube. A strip of reinforced TPE-P on the side of cover to support the electrical cables and accessories
Reinforcement: Circular woven polyester jacket
Operating Temperature Range: From -60° F to 176° F (-50° C to 80° C)
Standard Color: Blue, other colors available per request
Standard Length: 300ft/91.5m, 330ft/100m,660ft/200m; other lengths available per request;
Couplings: Stainless steel couplings with BSP thread, Stainless steel conical couplings with BSP thread etc.
Warranty: 10 years

1 1 / 2

Polyriser is one type of through-the-weave TPE-P covered hose which is made of TPE-P materials approved according to NSF 61 standard.

Polyriser hoses shall be made from 100% high tenacity virgin synthetic yarn circular woven and completely, totally embedded in the TPE-P compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type. Polyriser is a flexible rising pipe, but not so flexible as Welline hose.

Polyriser hoses perform better in age-resistance than Welline hoses. It is theoretically supposed to be used for 30-50 years. Its usage period is longer than that of any other comparable flexible rising pipes in the world.

1 1 / 2

Pumping Well Water

Fresh Water Supply Solutions in mines, agriculture, water utilities, industrial, solar etc.

Fresh Water Supply Hose TPE-P Material Blue Color NSF 61 Standard
