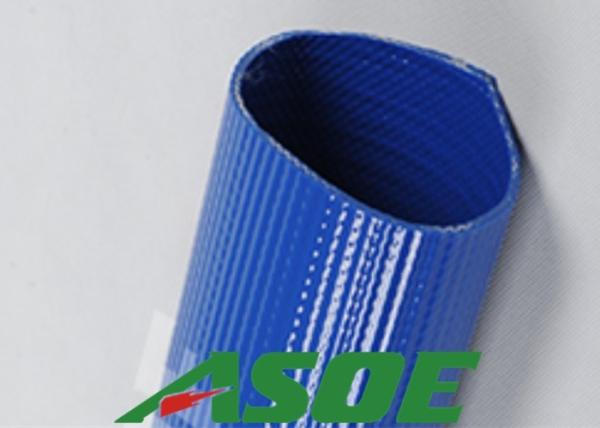

12 - 21 Bar TPU Water Transfer Hose With Superior Hydraulic Performance
12 - 21 Bar TPU Water Transfer Hose With Superior Hydraulic Performance
Specifications
Brand Name :
ASOE
Model Number :
Irrigator PU
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
Water Transfer Hose
Material :
polyurethane (TPU)
Bursting Pressure :
36 - 63bar
Standard Length :
50m, 100m, 200m
Standard Color :
Blue
Application :
Irrigation
Wall Thickness :
0.09 -0.14 "(2.2mm - 3.4mm)
Description

12 - 21 Bar TPU Water Transfer Hose With Superior Hydraulic Performance

ID
Wall Thickness
Weight
Working Pressure
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
Bar
PSI
Bar
1 1/2
35+1.5
0.09
2.2
0.2
0.3
250
17
750
51
2
51+1.5
0.11
2.7
0.34
0.5
250
17
750
51
2 1/2
64+1.5
0.12
2.9
0.44
0.65

250
17
750
51
3
76+2.0
0.12
3
0.5
0.75
250
17
750
51
4
103+2.0
0.13
3.2
0.78
1.16
250
17
750
51
6
153+2.0
0.17
4.2
1.56
2.33
200
14
600
42
8
204+3.0
0.175
4.5
2.3
3.43
215
15
645
45


12 - 21 Bar TPU Water Transfer Hose With Superior Hydraulic Performance
Inner tube and cover: Smooth PU cover and tube. The ribs on the cover surface greatly increase abrasion resistance and help to provide a long service life.
Reinforcement: Circular woven polyester jacket
Operating Temperature Range: From -60° F to 176° F(-50° C to 80° C)
Standard Color: Blue, other colors available per request
Standard Length: 50m, 100m, 200m, other lengths available per request
Standards/requirement: Meets and exceeds NSF61
Packaging: Coils or flaked in cartons
Warranty: 5 years guarantee
12 - 21 Bar TPU Water Transfer Hose With Superior Hydraulic Performance

►Superior abrasion resistance

►Extremely hardwearing and durable for long service life

►Resistance to weathering and ozone

►Flexible, lightweight and good handling


12 - 21 Bar TPU Water Transfer Hose With Superior Hydraulic Performance
Irrigator PU is one type of through-the -weave polyurethane (PU) covered hose.

Irrigator PU hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.

Irrigator PU hoses is UV resistant and kink resistant.

12 - 21 Bar TPU Water Transfer Hose With Superior Hydraulic Performance

Application: Agricultural irrigation solutions.


TPU Lay Flat Irrigation Hose UV Resistant Kink Resistant Polyurethane Covered

12 - 21 Bar TPU Water Transfer Hose With Superior Hydraulic Performance
