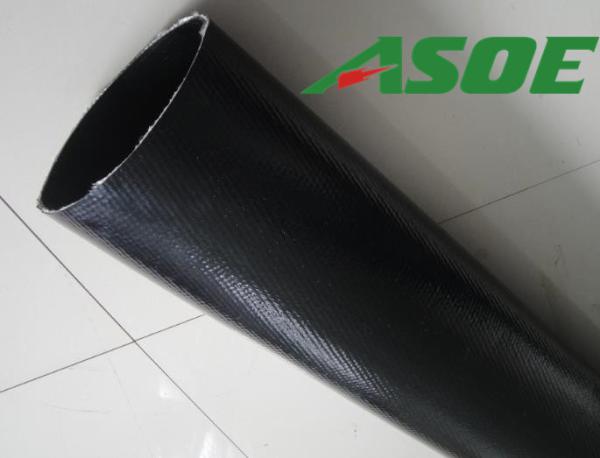

8” Heavy Duty PE Lay Flat Hose For Flowback Water Transfer Solutions
8” Heavy Duty PE Lay Flat Hose For Flowback Water Transfer Solutions
Specifications
Brand Name :
ASOE
Model Number :
Backflex
Certification :
ISO, NSF 61
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
Water Transfer Hose
Inner tube and cover :
Smooth TPE-P cover and tube
Reinforcement :
Circular woven polyester jacket
Operating Temperature Range :
From -60° F to 176° F (-50° C to 80° C)
Color :
Black or others
Coupling :
Storz couplings, Camlocks etc
Description

8” Heavy Duty PE Hose designed for Flowback Water Transfer Solutions

Product Application

Long Distance Fresh Water Transfer

Mining Dewater Soluiongs

Flowback Water Transfer Solutions
Pipe rehabilitation
By-pass Water Transfer Solution

Product Introduction

1.Backflex is one type of through-the-weave TPE-P covered hose which is made of TPE-P materials approved according to NSF 61 standard.

2.Backflex hoses shall be made from 100% high tenacity virgin synthetic yarn circular woven and completely, totally embedded in the TPE-P compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.

3.Backflex performs excellently in age-resistance. It is theoretically supposed to be used for 30-50 years.

4.Backflex is a press-flat hose and can keep round shape under the condition of no pressure. Backflex hoses can be pressed flat and can be easily laid down and retrieved as layflat hoses.

Product Specification

Backflex™ TPE-P Layflat Flexible Pipe
ID
Wall Thickness
Weight
Working
Pressure
Bursting
Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
bar
PSI
bar
2
52+1.5
0.1
2.4
0.35
0.52
300
21
900
63
3
77+2.0
0.1
2.5
0.61
0.9
250
17
750
51
4
104+2.0
0.13
3
0.89
1.33
250
17
750
51
6
155+2.5
0.15
3.8
1.6
2.38
200
14
600
42
8
204.3.0
0.17
4.3
2.17
3.23
200
14
600
42

Product Features

Inner tube and cover: Smooth TPE-P cover and tube.
Reinforcement: Circular woven polyester jacket
Operating Temperature Range: From -60° F to 176° F(-50° C to 80° C)
Standard Color: Blue, black, other colors available per request
Standard Length: 300ft/91.5m, 330ft/100m, 660ft/200m; other lengths available per request;
Couplings: Storz couplings, Camlocks etc.
