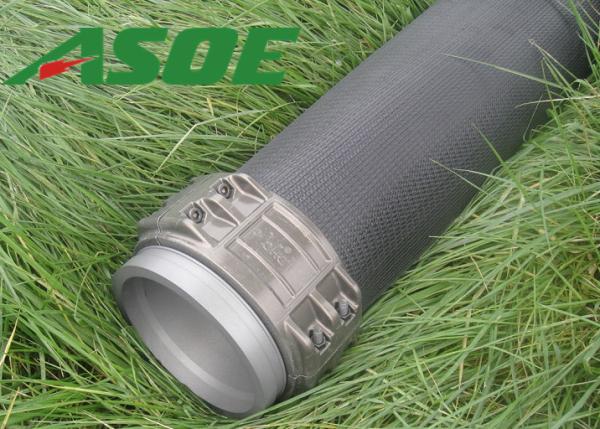

Agriculture Irrigation 8 Inch Lay Flat Discharge Hose NBR Material Cold Proof
Agriculture Irrigation 8 Inch Lay Flat Discharge Hose NBR Material Cold Proof
Specifications
Brand Name :
ASOE
Model Number :
Longman 450
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
NBR Layflat Irrigation Hose
Raw Material :
Nitrile Rubber
Application :
irrigation, washdown, water discharge etc.
Operating Temperature Range :
-20°C up to +80°C (-4°F up to 176°F) based on water
Standard Color :
Black or others
Standard Length :
50, 100, 300,330 , 660ft , etc
Description

Nitrile Rubber ( NBR ) Layflat Hose Designed for Agriculture Irrigation

Applications

• Washdown

• Drainage pumps

• Water Discharge

• Drainage

• Irrigation installations

• Pumping of sludge and liquid fertilizers

• Temporary installations (by-passes)

Recommended for Industrial Water Discharge Solution.

Product Introduction

Longman 450 is one type of through-the-weave Nitrile Rubber (NBR) covered hoses.

Longman 450 hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the NBR/PVC compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type. NBR compound is composed of NBR and PVC. High percentage of NBR content contributes to better abrasion-resistance.

Construction: Circular polyester weave extruded internally and externally with NBR-PVC.

Product Features


Color:Black ribbed
Temperature range:From -20 C deg to 80 C deg (-4 F deg to 176 F deg)
Elongation at WP:<1.5%
Expansion at WP:<6%
Abrasion:6000 DIN cycles

Standard Length: 50ft, 100ft, 300ft/91.5m, 330ft/100m, 660ft/200m, other length available per request

Coupling: Camlocks, Pinlug, Expansion Ring coupling, etc.

Product Specification

Longman™450 Nitrile Rubber Layflat Hose
ID
Wall Thickness
Weigth
Working Pressure
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
Bar
PSI
Bar
1 1/2
38+1.5
0.08
2.2
0.21
0.32
150
10
450
30
2
51+1.5
0.08
2.2
0.32
0.47
150
10
450
30
2 1/2
64+1.5
0.08
2.2
0.44
0.65
150
10
450
30
3
76+2.0
0.1
2.5
0.18
0.72
150
10
450
30
4
103+2.0
0.1
2.5
0.66
0.98
150
10
450
30
6
154+2.5
0.12
3.2
1.14
1.7
150
10
450
30
8
204+3.0
0.12
3.2
1.54
2.3
150
10
450
30
10
254+3.0
0.14
3.6
2.05
3.05
150
10
450
30
12
305+3.0
0.18
4.5
2.41
3.6
150
10
450
30
