8×200Ft Layflat Oil Transfer Hose Anti Static Wire Designed Large Diameter
8×200Ft Layflat Oil Transfer Hose Anti Static Wire Designed Large Diameter
Specifications
Brand Name :
ASOE
Model Number :
Oilvey 20
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
TPU layflat hose for Oil transfer
Raw Material :
Polyurethane
Specification :
8"
Working Pressure :
25Bar
Standard Color :
Green, others
Standard Length :
50,100, 660,990ft etc
Description


8

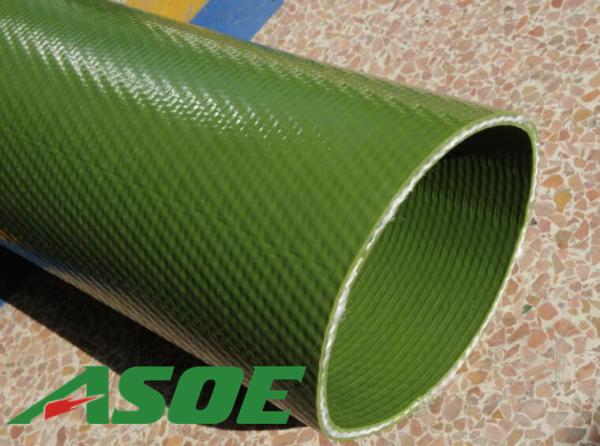

8"×200Ft Layflat PU Hose with Copper Anti-static Wire Designed for Oil Transferring Through the Weave Large Diameter

Oilvey 20 is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties.
The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
Incorporated copper wire is used to transfer static electricity.

Inner tube and cover: Smooth PU cover and tube.
Reinforcement: Circular woven polyester jacket with static wire incorporated
Operating Temperature Range: From -60° F to 176° F (-50° C to 80° C)
Standard Color: Green, other colors available per request
Standard Length: 50ft, 100ft, 330ft/100m, 660ft/200m; other lengths available per request
Couplings: Steel HPHC FM couplings, etc.
Warranty: Ten years guarantee

Features & Benefits

• Lightweight and easy to handle
• High Pressure rating
• Good resistance to fuel and chemicals
• Easy to repair and patch
• Compact storage
• UV Stabilised hardwearing
• Supplied with copper anti-static wire for electrical continuity
• Available in different colours

8
8
Oilvey™20 PU Layflat Hoses
ID
Wall Thickness
Weight

Working Pressre
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
Bar
PSI
Bar
8
204+3.0
0.24
6.2
3.5
5.21
365
25
1100
75



8

♦ Temporarily oil or fuel transfer solutions
♦ Produced Water Transfer Solutions
♦ Frac water transfer in mountain area
