4 Oil Transfer Pipe , Diesel Delivery Hose With Extrusion Weave Production Method
4 Oil Transfer Pipe , Diesel Delivery Hose With Extrusion Weave Production Method
Specifications
Brand Name :
ASOE
Model Number :
Oilvey 20
Certification :
ISO
Place of Origin :
China
MOQ :
10cm
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m per week
Delivery Time :
depends on your order quantity
Packaging Details :
Standard Export Package
Product Name :
TPU layflat hose for Oil transfer
Raw Material :
Polyurethane
Reinforcement :
Circular woven polyester jacket with static wire incorporated
Specification :
4"
Working Pressure :
28Bar
Standard Length :
50,100, 660,990ft etc
Description

4

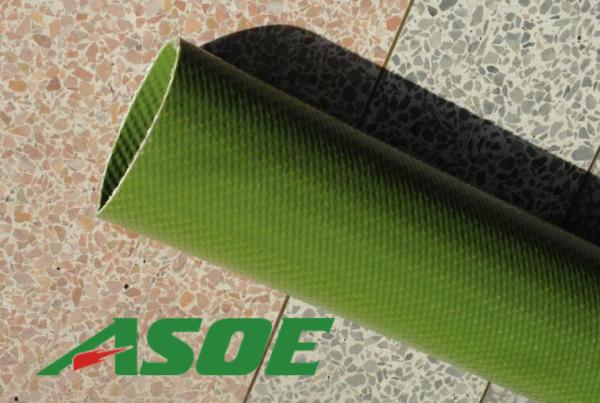

4"×100Ft Oil or Fuel Transferring Layflat PU Hose with Copper Anti-static Wire Through the Weave Heavy Duty

Oilvey 20 is one type of through-the -weave polyurethane (PU) covered hose.

►The reinforcement is made from circular woven filament polyester yarn.

►The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.

Inner tube and cover: Smooth PU cover and tube.

Reinforcement: Circular woven polyester jacket with static wire incorporated

Operating Temperature Range: From -60° F to 176° F (-50° C to 80° C)

Standard Color: Green, other colors available per request

Standard Length: 50ft, 100ft, 330ft/100m, 660ft/200m; other lengths available per request

Couplings: Steel HPHC FM couplings, etc.

Warranty: Ten years guarantee

Advantage

♦ Static Protection: Incorporates anti-static wire

♦ Chemical Resistance: Resistant to hydrocarbons and most chemicals

♦ Impact Damage: High abrasion resistance

♦ Ozone Properties: UV stabilised

♦ Handling: Easy to handle & roll

♦ Properties: Lightweight, durable & maintenance free

4
Oilvey™20 PU Layflat Hoses
ID
Wall Thickness
Weight

Working Pressre
Bursting Pressure
Inch
mm
Inch
mm
lbs/ft
kg/m
PSI
Bar
PSI
Bar
4
103+2.0
0.2
5.2
1.29
1.93
400
28
1200
84

4

Temporarily oil or fuel transfer solutions

Produced Water Transfer Solutions

Frac water transfer in mountain area

Others
