Specifications
Description
PRODUCT PARAMETERS

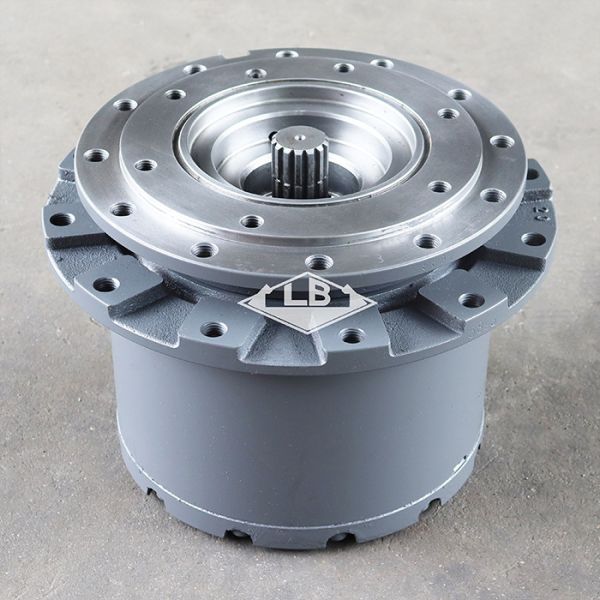

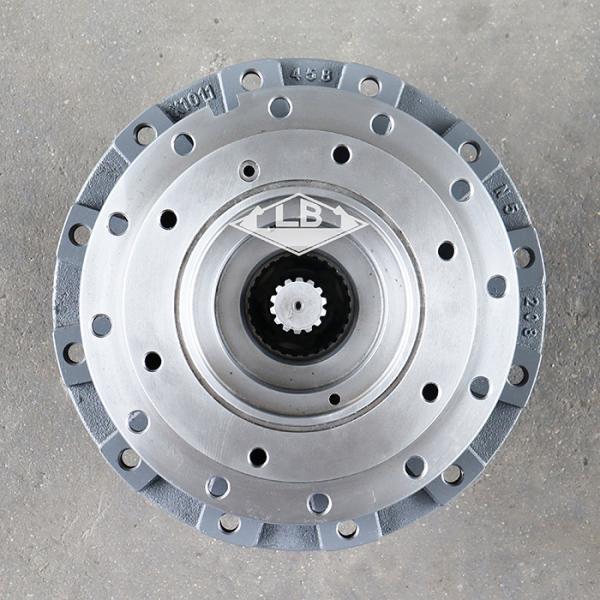

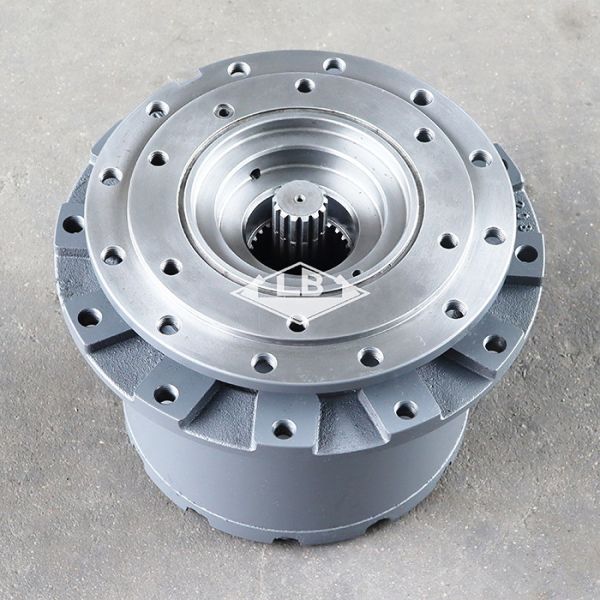

Part name
 EX60-1 Travel gearbox
Equipment Apply to HITACHI EXCAVATOR
Part no. 9069295 9096479 9138927
Frame holes 12
Sprocket holes 12
Item condition New
Logo LB
Gross weight 90 KG
MOQ 1 pc


Product Description

EX60 EX60-1 TRAVEL REDUCER 9069295 9096479 9138927 TRAVEL DEVICE EX60-1 TRAVEL GEARBOXEX60 EX60-1 TRAVEL REDUCER 9069295 9096479 9138927 TRAVEL DEVICE EX60-1 TRAVEL GEARBOXEX60 EX60-1 TRAVEL REDUCER 9069295 9096479 9138927 TRAVEL DEVICE EX60-1 TRAVEL GEARBOXEX60 EX60-1 TRAVEL REDUCER 9069295 9096479 9138927 TRAVEL DEVICE EX60-1 TRAVEL GEARBOX

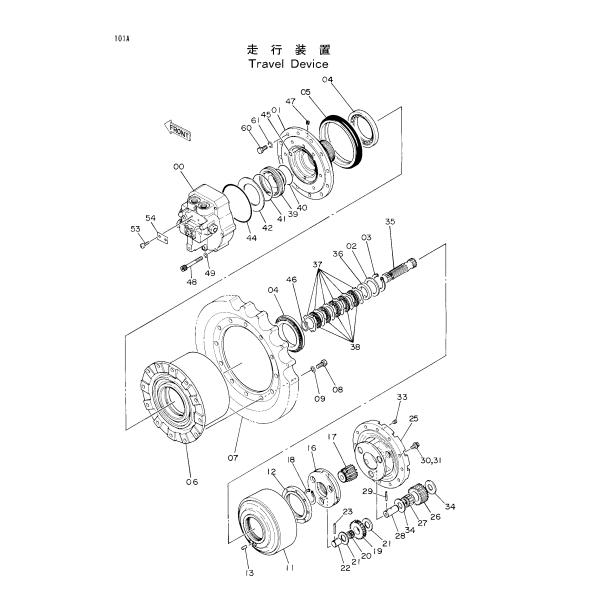

Parts on group TRAVEL DEVICE:

Pos. Part No Qty Parts name Comments
00. 9069509 [1] MOTOR;OIL I 9123069
00. 9123069 [1] MOTOR;OIL Y 9138838
00. 9138838 [1] MOTOR;OIL
00-49. 9069295 [2] TRAVEL DEVICE ASS'Y Y 9096479
00-54. 9096479 [2] TRAVEL DEVICE ASS'Y I 9138927
00-54. 9138927 [2] TRAVEL DEVICE ASS'Y
01. 1011457 [1] HOUSING
02. 4092443 [1] SPACER
03. 991726 [1] RING;RETAINING
04. 4148014 [2] BRG.;ROL
05. 4092483 [1] SEAL;GROUP
06. 1011458 [1] DRUM
07. 1010447 [1] SPROCKET
08. J931635 [12] BOLT Y J931640
08. J931635 [12] BOLT
08. J931640 [12] BOLT Y J931635
09. A590916 [12] WASHER;SPRING
11. 2023132 [1] GEAR;RING
12. 3027147 [1] NUT
13. 4148012 [1] PIN;KNOCK
16. 2023175 [1] CARRIER
17. 3027146 [1] GEAR;SUN
18. 959499 [1] RING;RETAINING
19. 3027148 [3] GEAR;PLANETARY
20. 4177007 [3] BRG.;NEEDLE
21. 4192910 [6] PLATE;THRUST
22. 4178202 [3] PIN
23. 4169566 [3] PIN;SPRING
23. 4173093 [3] PIN;SPRING Y 4169566
25. 1010450 [1] CARRIER
26. 3027149 [3] GEAR;PLANETARY
27. 4148013 [3] BRG.;NEEDLE
28. 4148016 [3] PIN
29. 4144017 [3] PIN;SPRING
30. J011230 [12] BOLT;SEMS
30. M221232 [12] BOLT I J011230
31. A590912 [12] WASHER;SPRING
33. 4245797 [3] PLUG
33. 94-2013 [2] PLUG
33. 94-2013 [3] PLUG Y 4245797
34. 4148080 [6] PLATE;THRUST
35. 2017872 [1] SHAFT;PROP.
36. 4092444 [1] SPACER
37. 3036156 [6] PLATE T 3070674
37. 3036156 [6] PLATE T 3070675
37. 3070675 [6] PLATE
38. 3036157 [5] PLATE;FRICTION T 3070674
38. 3036157 [5] PLATE;FRICTION T 3070675
38. 3070674 [5] PLATE;FRICTION
39. 3036158 [1] PISTON
40. 4092712 [1] D-RING
41. 4092713 [1] D-RING
42. 3017067 [1] SPRING;DISC
44. 4154877 [1] O-RING
45. 957366 [1] O-RING
46. 929231 [1] RING
47. 94-2010 [1] PLUG
48. 4192042 [6] BOLT;SOCKET
49. A590914 [6] WASHER;SPRING
53. M492564 [2] SCREW;DRIVE
54. 3053559 [1] NAME-PLATE Y 3071686
54. 3071686 [1] NAME-PLATE (FOR TRANSMISSION)
60. J931650 [24] BOLT
61. A590916 [24] WASHER;SPRING
