Specifications
Description

EX200-5 TRAVEL DEVICE Travel Gearbox With Motor 9134825 9148909 9150472 9155253 9142964 9144136 EX200-5 Final Drive

PRODUCT PARAMETERS
Part name EX200-5 Final drive
Equipment Apply to HITACHI EXCAVATOR
Part no. 9134825 9148909 9150472 9155253 9142964 9144136
Frame holes 14
Sprocket holes 16
Item condition New
Logo LB
Gross weight 290 KG
MOQ 1 pc

Product Description

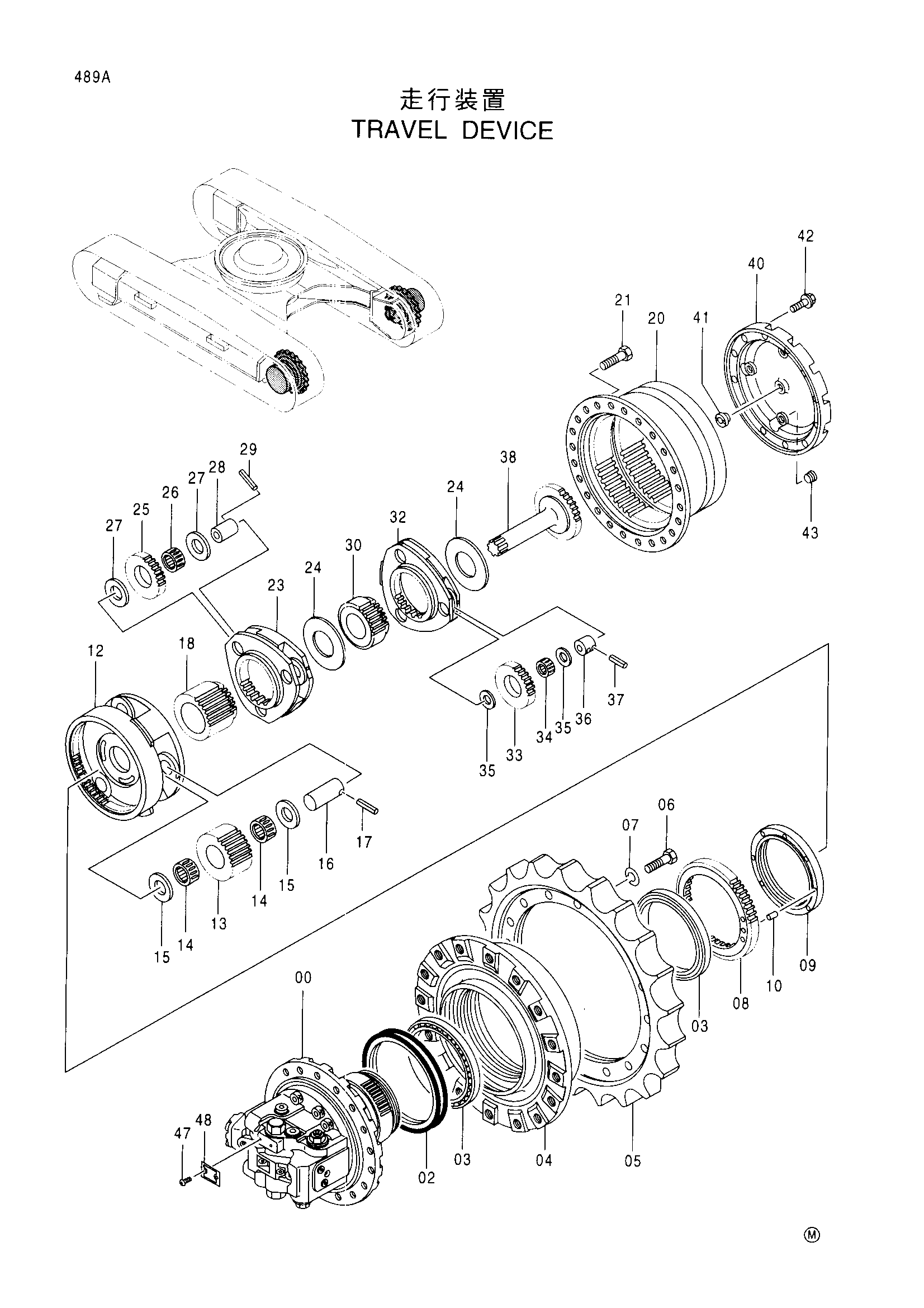

Parts on group TRAVEL DEVICE:

EX200-5 TRAVEL Final Drive Travel Gearbox With Motor 9134825 9148909 9150472 9155253 9142964 9144136 EX200-5

Pos. Part No Qty Parts name Comments
9134825 [2] TRAVEL DEVICE ASSY I 9148909 (for assembly of machine)
(9148909) [2] TRAVEL DEVICE ASSY (for transportation)
9150472 [2] TRAVEL DEVICE ASSY I 9155253 (for assembly of machine)
(9155253) [2] TRAVEL DEVICE ASSY (for transportation)
9142964 [2] TRAVEL DEVICE ASSY I 9144136 (for assembly of machine)
(9144136) [2] TRAVEL DEVICE ASSY (for transportation)
00. 9146471 [1] MOTOR;OIL I 9149087 (for assembly of machine)
00. (9144066) [1] MOTOR;OIL (for transportation)
00. (9149087) [1] MOTOR;OIL (for transportation)
00. (9149085) [1] MOTOR;OIL (for transportation)
00. 9133918 [1] MOTOR;OIL I 9149085 (for assembly of machine)
00. 9142661 [1] MOTOR;OIL I 9144066 (for assembly of machine)
02. 4114753 [1] SEAL;GROUP
03. 4246793 [2] BRG.;ROL.
04. 1018736 [1] DRUM
05. 1020990 [1] SPROCKET Y 1018740
05. 1018740 [1] SPROCKET
06. J932055 [16] BOLT
07. A590920 [16] WASHER;SPRING
08. 3047448 [1] HUB
09. 3057125 [1] NUT
10. 4246783 [1] PIN;KNOCK
12. 1019147 [1] CARRIER
13. 3063957 [3] GEAR;PLANETARY
14. 4317122 [6] BRG.;NEEDLE
15. 4284521 [6] PLATE;THRUST
16. 4315838 [3] PIN
17. 4116309 [3] PIN;SPRING
18. 3063959 [1] GEAR;SUN
20. 1020184 [1] GEAR;RING
20. 1018789 [1] GEAR;RING
21. J931640 [24] BOLT
23. 2034836 [1] CARRIER
24. 4192979 [2] SPACER
25. 3063956 [3] GEAR;PLANETARY
26. 4317121 [3] BRG.;NEEDLE
27. 4210851 [6] PLATE;THRUST
28. 4309995 [3] PIN
29. 4192020 [3] PIN;SPRING
30. 3063958 [1] GEAR;SUN
32. 2034835 [1] CARRIER
33. 3063955 [3] GEAR;PLANETARY
34. 4210849 [3] BRG.;NEEDLE <200,SS,HG,LV,X,E,H,K>
34. 4317120 [3] BRG.;NEEDLE
35. 4192910 [6] PLATE;THRUST
36. 4210853 [3] PIN
37. 4173093 [3] PIN;SPRING
38. 2034834 [1] SHAFT;PROP.
40. 2034833 [1] COVER
41. 4285323 [1] PIN;STOPPER
42. J011230 [12] BOLT;SEMS
43. 4245797 [3] PLUG
47. M492564 [2] SCREW;DRIVE
48. 3053559 [1] NAME-PLATE
