MachineU > China Products > Machinery > Engineering & Construction Machinery > Construction Machinery Parts

Specifications

Description

PRODUCT PARAMETERS

Product Description

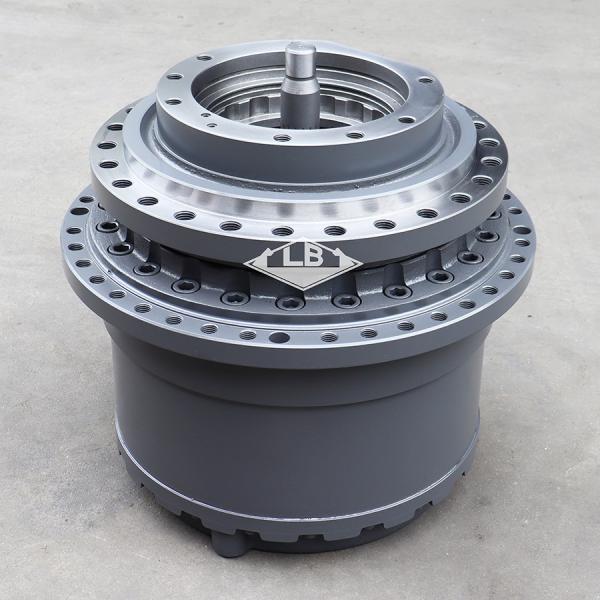

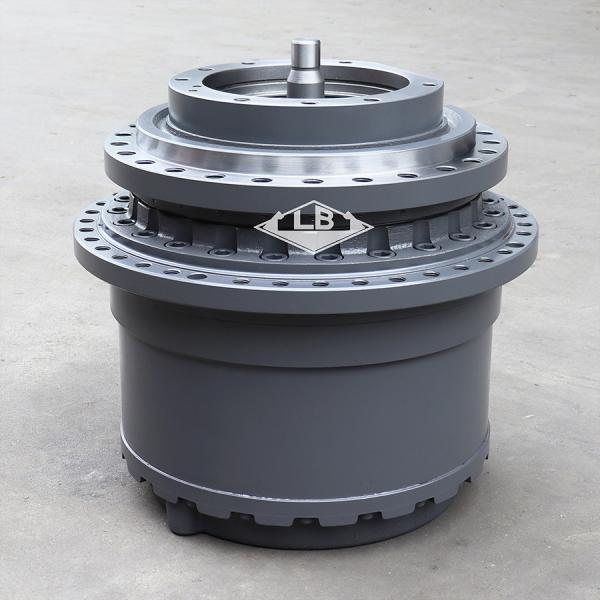

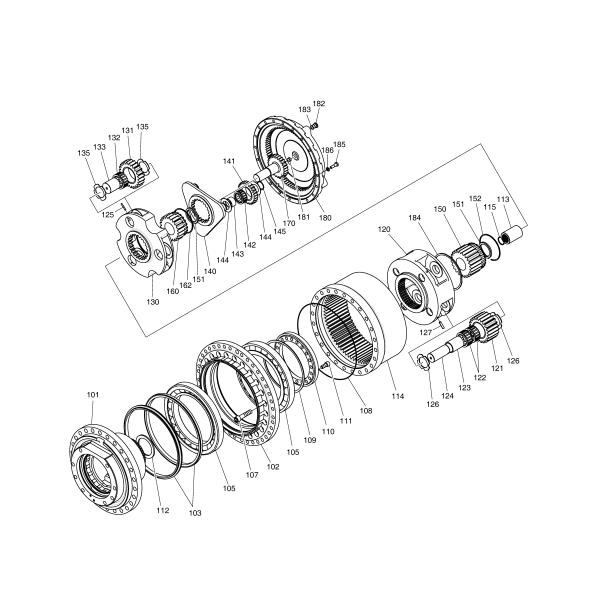

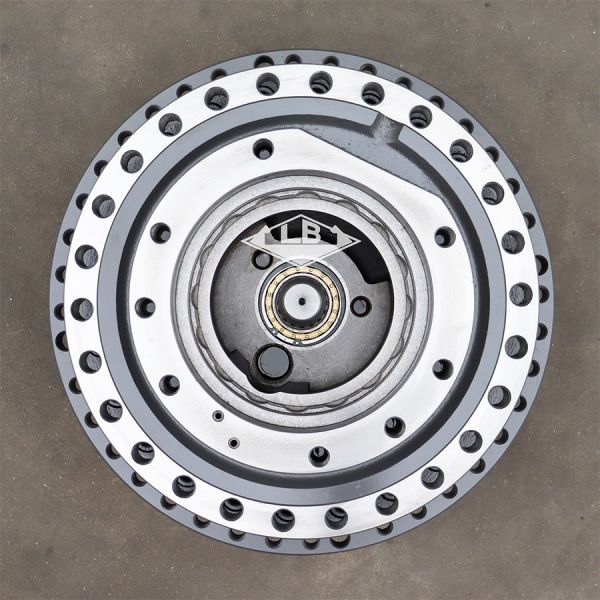

DX500 DX520 DX530 Final drive 170401-00009 170401-00120 MZEB241E DX500 Travel reduction gearbox

Pos.	Part No	Qty	Parts name	Comments
101.	130713-01308B	[1]
101.	130713-01308A	[1]		130713-01308B
102.	900122-00085	[1]
103.	401111-00032	[2]
105.	140105-00316	[2]
107.	S2228463	[24]
108.	401002-00763	[1]
109.	101558-00021	[1]
110.	430210-00218	[1]
111.	S2221361	[20]
112.	1.412-00164	[1]	PLATE;THRUST
113.	130801-00021	[1]
114.	130422-00054	[1]
115.	S6510420	[1]	RING
120.	100502-00177A	[1]		100502-00177B
120.	100502-00177B	[1]
120.	100502-00177	[1]
121.	130418-00392	[4]
122.	140104-00073	[8]
123.	131002-00423	[4]
124.	130712-00861	[4]
125.	S5740960	[3]	PIN;SPRING
126.	120816-00104	[8]
127.	S5741380	[4]
130.	100502-00178	[1]
131.	130418-00393	[3]
132.	140104-00073	[3]
133.	130712-00862	[3]
135.	120816-00105	[6]
140.	100502-00179	[1]
141.	130418-00394	[1]
142.	1.216-00017	[3]	CAGE,NEEDLE
143.	1.115-00232	[3]	RING;INNER
144.	1.412-00121	[6]	PLATE;SIDE E
145.	S6500450	[3]	RING;SNAP
150.	130425-00028	[1]
151.	114-00348	[2]	RING;THRUST 90
152.	401003-00383	[1]
160.	130425-00029	[1]
162.	401003-00384	[1]
170.	130412-00108	[1]
180.	110508-09954	[1]
181.	K9004304	[1]	WASHER;THRUST
182.	2181-1890D4	[3]	PLUG
183.	S8000181	[3]	O-RING
184.	401003-00385	[1]
185.	S0560553	[20]	BOLT M12X1.75X40
186.	S5102703	[20]	WASHER

DX500 DX520 DX530 Final drive 170401-00009 170401-00120 MZEB241E DX500 Travel reduction gearbox
