Specifications
Description
PRODUCT PARAMETERS
Part name

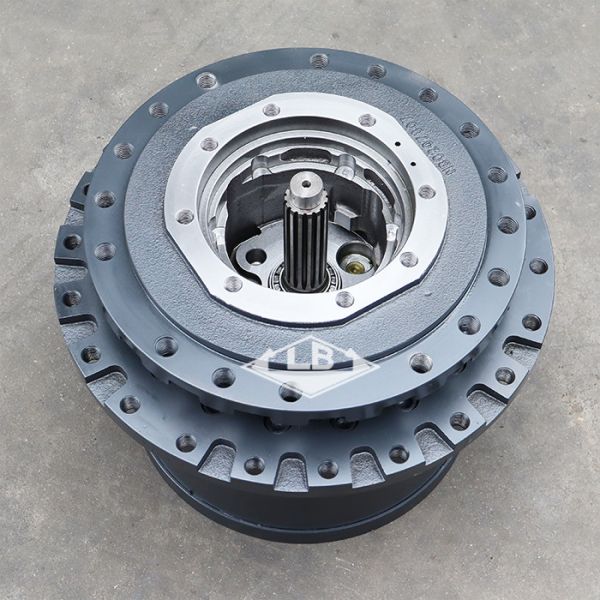

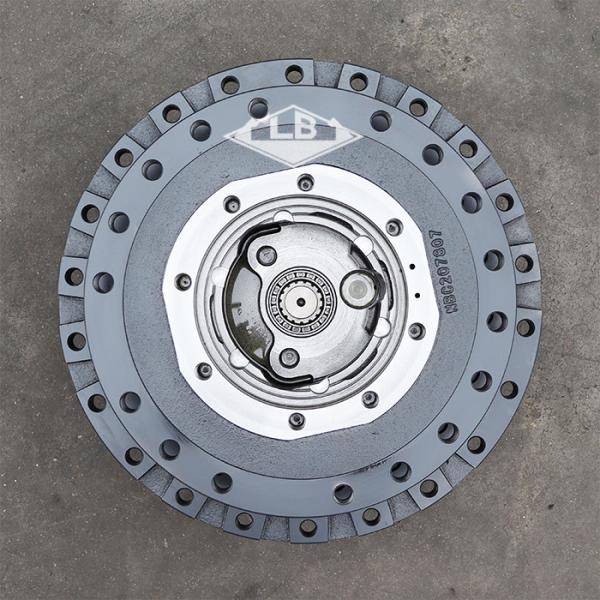

 SK200-6 Travel gearbox
Equipment Apply to Kobelco EXCAVATOR
Part no. YN53D00008F1 YN53D00008F2 YN53D00008F3
Frame holes 17
Sprocket holes 22
Item condition New
Logo LB
Gross weight --
MOQ 1 pc


Product Description
SK200-6 ED150 TRAVEL MOTOR REDUCER YN53D00008F1 YN53D00008F2 YN53D00008F3 SK200-6 TRAVEL GEARBOX

SK200-6 ED150 TRAVEL MOTOR REDUCER YN53D00008F1 YN53D00008F2 YN53D00008F3 SK200-6 TRAVEL GEARBOXSK200-6 ED150 TRAVEL MOTOR REDUCER YN53D00008F1 YN53D00008F2 YN53D00008F3 SK200-6 TRAVEL GEARBOXSK200-6 ED150 TRAVEL MOTOR REDUCER YN53D00008F1 YN53D00008F2 YN53D00008F3 SK200-6 TRAVEL GEARBOX

Pos. Part No Qty Parts name Comments
. . YN53D00008F1 [1] HYDRAULIC MOTOR KOB (PROPELLING) Superseded by part number: YN53D00008F3
. . YN53D00008F2 [1] REDUCER KOB ASSY (PROPELLING) Superseded by part number: YN53D00008F3
. . YN53D00008F3 [1] HYDRAULIC MOTOR KOB REDUCTION ASSY (PROPELLING)
1. YN53D00008S001 [1] COVER KOB
2. YN53D00008S002 [1] ROTOR DISTRIBUTOR KOB (F1 ONLY)
3. YN53D00008S003 [3] PIN KOB (F1 ONLY)
4. LQ15V00005S004 [3] BEARING KOB NEEDLE
5. YN53D00008S005 [6] WASHER KOB
6. YN53D00008S006 [3] GEAR KOB PLANETARY
7. ZP26D04022 [3] PIN KOB SPRING (F1 Only)
8. LQ15V00005S008 [1] PLATE KOB THRUST
9. YN53D00008S009 [1] GEAR KOB SUN
10. YN53D00008S010 [1] GEAR KOB SUN
11. YN53D00008S011 [1] SHAFT, PLANETARY CAR KOB ROTOR (F1 ONLY)
12. YN53D00008S012 [3] PIN KOB (F1 ONLY)
13. YN53D00004S013 [3] BEARING KOB NEEDLE
14. YN53D00008S014 [3] GEAR KOB PLANETARY
15. ZP26D06036 [3] PIN KOB Roll, OD 06 x 36mm Long (F1 Only)
16. YN53D00008S016 [6] THRUST WASHER KOB
17. YN53D00008S017 [1] GEAR KOB RING
18. YN53D00008S018 [1] HOUSING KOB (F1, F2 ONLY)
19. YN53D00008S019 [2] BEARING KOB
20. YN53D00008S020 [1] SHIM KOB
21. YN53D00008S021 [2] WASHER KOB
22. YN53D00004S022 [1] RING KOB
23. YN53D00008S023 [1] SEAL KOB FLOATING
24. ZS23C10025 [15] SCREW,Hex Socket Head, M10 x 25mm KOB M10 x 1.50 x 25mm Superseded by part number: ZS28C10025
25. ZS23C16080 [19] CAPSCREW,Hex Socket Head, M16 x 80mm KOB SCREW M16 x 2.0 x 80mm (F1, F2 ONLY)
26. ZE82T12000 [2] PLUG KOB 3/4" PT
27. YN53D00008S027 [1] ROTOR KOB (F2, F3 ONLY)
28. YN53D00008S028 [3] PIN KOB (F2, F3 ONLY)
29. ZP26D05032 [3] PIN KOB Spring (F2, F3 Only)
30. YN53D00008S030 [1] ROTOR KOB (F2, F3 ONLY)
31. YN53D00008S031 [3] PIN KOB SPRING (F2, F3 ONLY)
32. ZP26D08040 [3] PIN KOB SPRING (F2, F3 ONLY)
33. YN53D00008S033 [1] HOUSING KOB HOUSING (F3 ONLY) Superseded by part number: YN53D00008S018
34. ZS23C16090 [19] SCREW,Hex Socket Head, M16 x 90mm KOB M16 x 2.0 x 90mm (F3 Only)
. . YN53D00008R100 [1] KIT KOB REPAIR, CONSISTS OF REF. 4(3), 5(6), 6(3), 27(1), 28(3), 29(3) (F2, F3 ONLY)
. . YN53D00008R200 [1] REPAIR KIT KOB CONSISTS OF REF. 13(3), 14(3), 16(6), 30(1), 31(3), 32(3) (F2, F3 ONLY)
