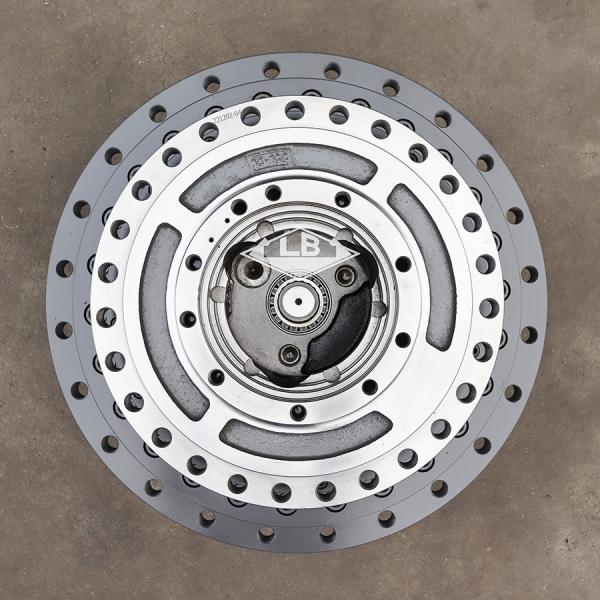

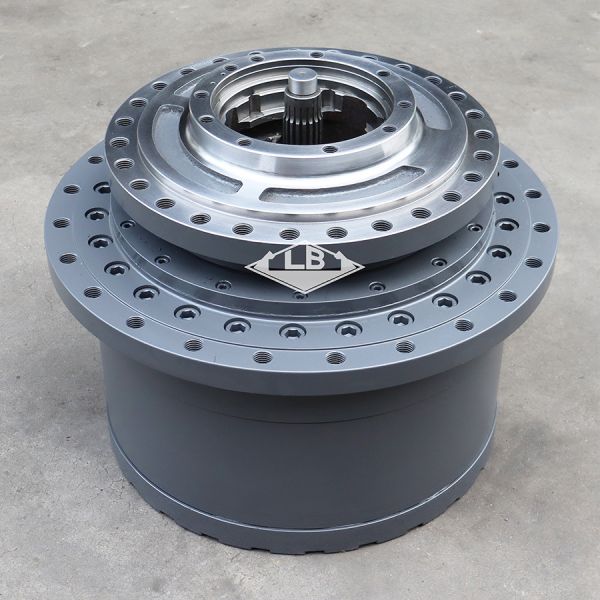

SK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearbox
SK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearbox
SK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearbox
SK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearbox
SK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearbox
SK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearbox
SK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearbox
SK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearbox
Specifications
Description
PRODUCT PARAMETERS
Part name
 SK460-8 SK485-8 GM85 Travel gearbox
Equipment Apply to Kobelco EXCAVATOR
Part no. LS53D00007F1
Frame holes 27
Sprocket holes 24
Item condition New
Logo LB
Gross weight 410 KG
MOQ 1 pc


Product Description
SK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearbox

SK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearboxSK460-8 SK485-8 GM85 Travel reducer LS53D00007F1 LS15V00020F1 SK460 Travel gearbox

Parts on group (SK485-8) - ACERA MARK 8 EXCAVATOR - TIER 3 (NA) YS07U0701 - (8/07-12/12):

Pos. Part No Qty Parts name Comments
. . LS53D00007F1 [1] REDUCER KOB Propel Reduction Assembly
1. LS53D00007S001 [1] HOUSING KOB Housing - NSS (order LS15V00020F1)
2. LS53D00007S002 [2] BEARING KOB Bearing
3. LS53D00007S003 [1] RING GEAR KOB Gear, Ring
4. ZS23C20120 [26] SCREW HIT M20x2.5x120mm
5. LS53D00007S005 [1] COVER KOB Cover, Seal
6. ZS23C10025 [16] SCREW,Hex Socket Head, M10 x 25mm KOB M10x1.50x25mm Superseded by part number: ZS28C10025
7. 24100U1743S24 [1] SEAL KOB
8. LS53D00007S008 [1] SHIM KOB Shim
9. LS53D00007S009 [2] LOCK WASHER KOB Lock Washer
10. LS53D00007S010 [1] SUPPORT KOB Ring
11. LS53D00007S011 [1] SPIDER KOB Carrier
12. 24100U1743S14 [3] PINION KOB
13. ZR26X12000 [6] LOCKING RING KOB Retaining -- ID 124 x OD 127 x Th 4.0mm
14. LS53D00007S014 [6] BEARING KOB Bearing
15. LS53D00003S012 [3] PIN KOB Carrier
16. ZP26D10063 [3] ROLL PIN HIT OD 10 x 63mm Long
17. LS53D00007S017 [1] SPACER KOB Spacer
18. 24100U1743S10 [1] SUN GEAR KOB
19. LS53D00003S002 [1] SPIDER KOB Carrier
20. LS53D00003S006 [3] GEAR KOB Gear, Planetary
21. LS53D00003S005 [6] PLATE KOB Washer, Thrust
22. LS53D00007S022 [3] NEEDLE BEARING KOB Bearing, Needle
23. LC53D00007S003 [3] PIN KOB
24. ZP26D06036 [3] PIN KOB Roll -- OD 06 x 36mm Long
25. LS53D00007S025 [1] SUN GEAR KOB Gear, Sun
26. LQ15V00005S008 [1] PLATE KOB Thrust
27. LS53D00007S027 [1] COVER KOB Cover
28. ZS23C12030 [25] SCREW,Hex Socket Head, M12 x 30mm KOB M12x1.75x30mm
29. YR30V00001S116 [2] PLUG KOB
30. ZD12P02400 [2] O-RING KOB ID 23.70 ± 0.24 x OD 30mm
