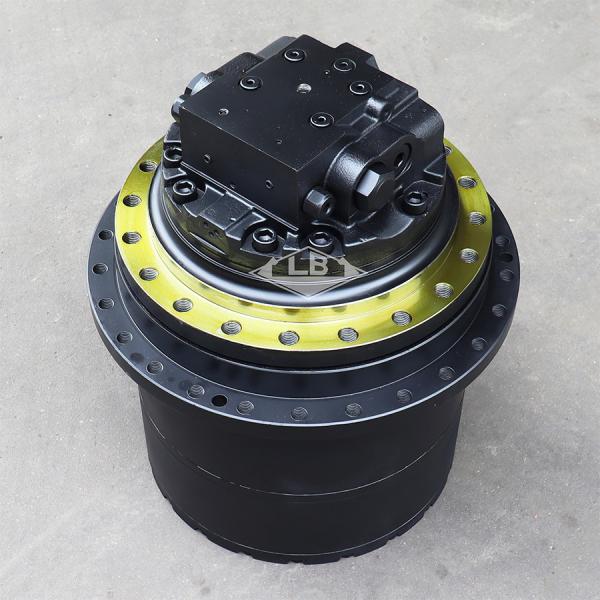

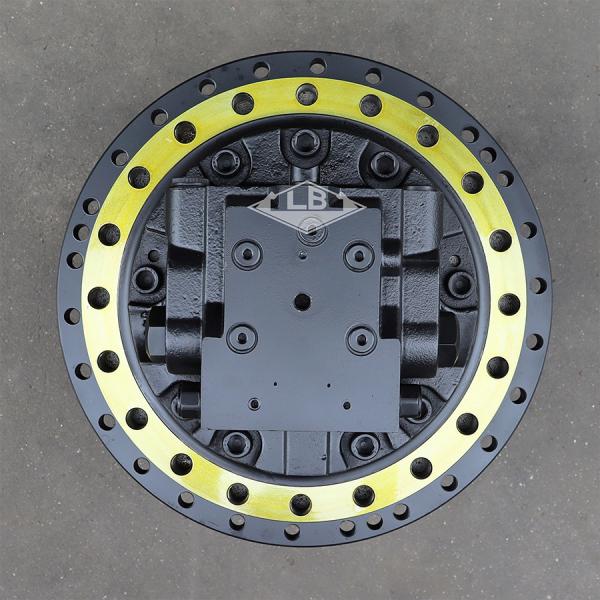

DX255 DH258 SOLAR 255LC-V Travel gearbox with motor K1011413A K9005007 170402-00039 DX255 Final drive

PRODUCT PARAMETERS

Product Description

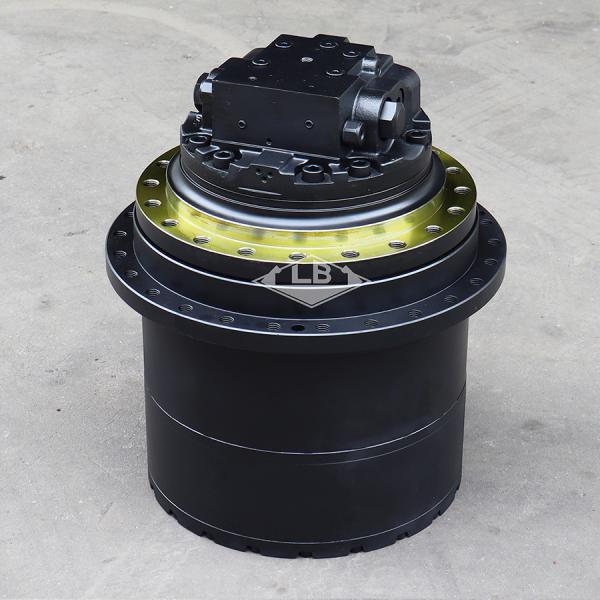

K1011413A K9005007 170402-00039 DX255 Final Drive Gear DX255 DH258 SOLAR 255LC-V Travel Gearbox With Motor

K1011413A K9005007 170402-00039 DX255 Final Drive Gear DX255 DH258 SOLAR 255LC-V Travel Gearbox With Motor

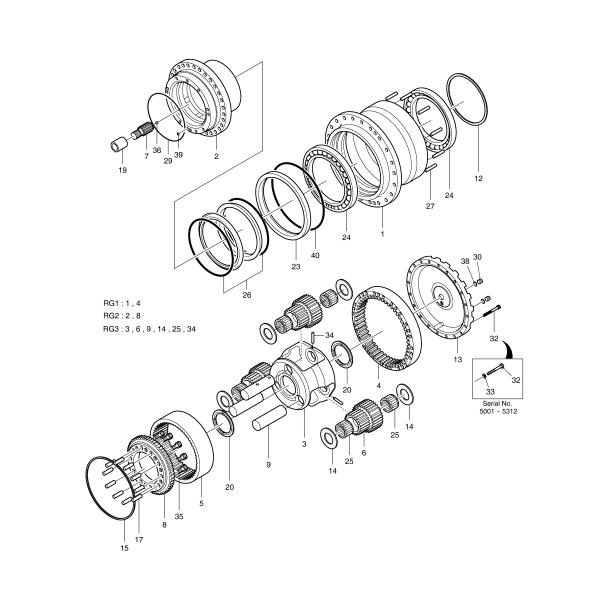

Pos.	Part No	Qty	Parts name	Comments
-.	K1011413A	[2]	TRAVEL DEVICE	170401-00042
-.	170401-00042	[2]		170401-00042A
-.	170401-00042A	[2]
1.	*NA00546	[1]	HUB
12.	1.540-00004	[1]	PIECE;DISTANCE
13.	1.430-00030	[1]	COVER
13.	110508-23087	[1]
14.	1.114-00541	[6]	COLLAR;THRUST
15.	1.115-00138	[1]	RING
17.	1.123-00034	[10]	PIN
19.	1.414-00009	[1]	COUPLING
2.	*NA01154	[1]
20.	1.412-00164	[2]	PLATE;THRUST
23.	1.180-00355	[1]	RING;SEAL
24.	1.109-00146	[2]	BEARING;ANGULAR BALL
25.	1.109-00145	[6]	BEARING;NEEDLE
26.	1.180-00512	[1]	SEAL;FLOATING
27.	1.123-00107	[10]	PIN;PARALLEL D12X63
29.	S8012300	[1]	O-RING
3.	1.230-00054	[1]	CARRIER
30.	2181-1116D4	[3]	PLUG
30.	2181-1890D4	[3]	PLUG
32.	S0561471	[20]	BOLT;HEX M12X1.75X85
32.	S2216261	[20]	BOLT;SOCKET M12X1.75X80
33.	S5110701	[20]	WASHER;SPRING M12
34.	1.123-00026	[3]	PIN;PARALLEL
35.	S2224471	[10]	..BOLT;SOCKET M8X2.5X40
36.	S6250200	[1]	BALL;STELL
38.	S8000181	[3]	O-RING
39.	S8000081	[2]	O-RING
4.	*NA00495	[1]
40.	S8003401	[1]	JOINT TORIQUE
5.	1.104-00003	[1]	GAER;RING B
6.	1.404-00007	[3]	GEAR;CLUSTER
7.	1.403-00111	[1]	GEAR;SUN
8.	1.404-00002	[1]	GEAR;COUPLING
9.	1.405-00121	[3]	SHAFT;CLUSTER
RG.	K9005007	[1]	REDUCTION GEAR ASSY	170402-00039
RG.	170402-00039	[1]
RG1.	K9005008	[1]	HUB ASSY
RG1.	900122-00134	[1]
RG2.	K9005010	[1]	SPINDLE ASSY
RG3.	1.230-00053	[1]	CARRIER ASSY

K1011413A K9005007 170402-00039 DX255 Final Drive Gear DX255 DH258 SOLAR 255LC-V Travel Gearbox With Motor
