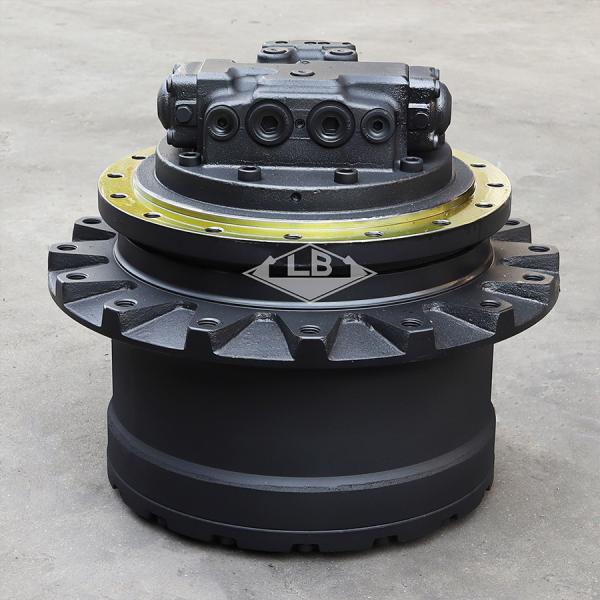

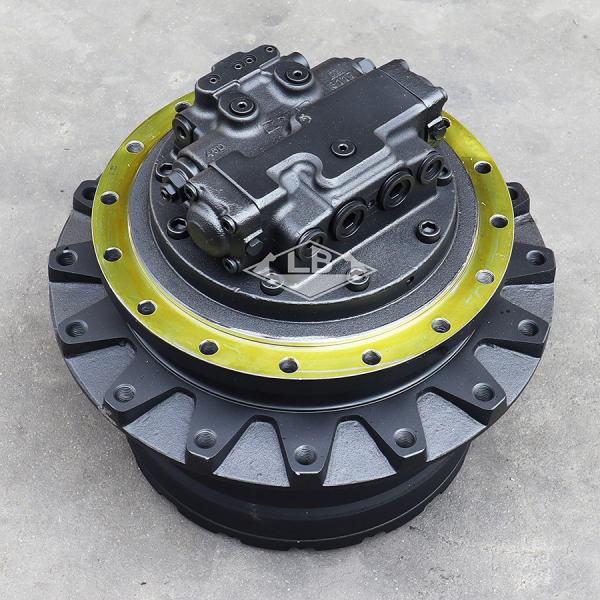

ZX160 Travel Gearbox with motor 4466663 For Hitachi ZX160 Final Drive

PRODUCT PARAMETERS

Product Description

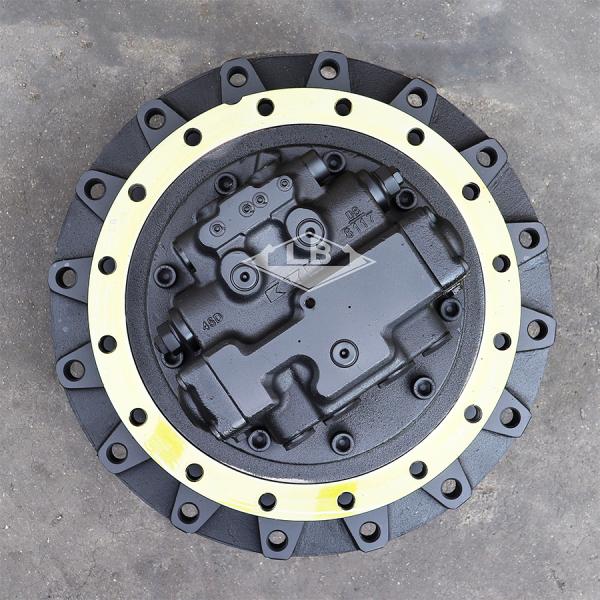

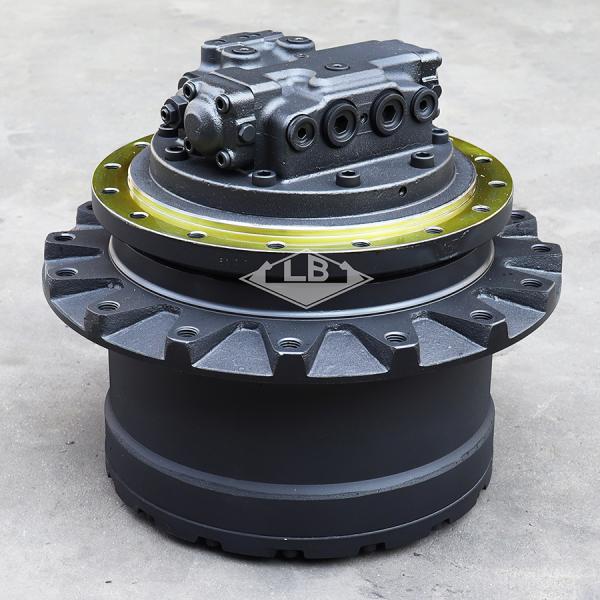

4466663 250kg Hydraulic Final Drive ZX160 Travel Gearbox With Motor For Hitachi ZX160

4466663 250kg Hydraulic Final Drive ZX160 Travel Gearbox With Motor For Hitachi ZX160

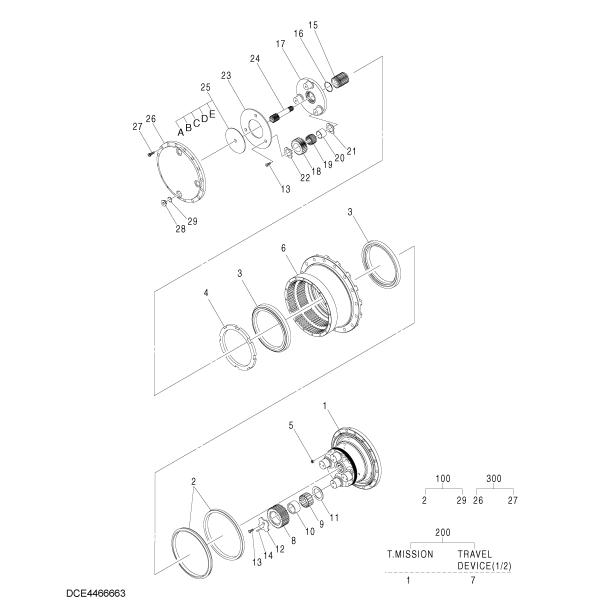

Pos.	Part No	Qty	Parts name	Comments
	4466663	[1]	T.MISSION
1.	+++++++	[1]	HOLDER
2.	0251523	[1]	SEAL
3.	0693002	[2]	BRG.
4.	0693003	[1]	NUT
5.	0732202	[4]	PLUG
6.	+++++++	[1]	HOUSING
8.	0796002	[4]	GEAR;PLANETARY
9.	0693005	[4]	BRG.;NEEDLE
10.	0693006	[4]	RACE;INNER
11.	0692508	[4]	WASHER;THRUST
12.	0693007	[4]	PLATE;THRUST
13.	0693008	[7]	SCREW
14.	4051262	[4]	PIN;SPRING
15.	0796003	[1]	GEAR;SUN
16.	0693010	[1]	RING;RETAINING
17.	0796004	[1]	HOLDER
18.	0796012	[3]	GEAR;PLANETARY
19.	0796005	[3]	ROLLER
20.	0693013	[3]	RACE;INNER
21.	0796006	[3]	WASHER;THRUST
22.	0796007	[3]	PLATE;THRUST
23.	0796008	[1]	PLATE;THRUST
24.	0796009	[1]	GEAR;DRIVE
25.	0796010	[1]	PLATE;THRUST ASSY
25A.	+++++++	[1]	PLATE;THRUST	(t=3.6mm)
25B.	+++++++	[1]	PLATE;THRUST	(t=2.3mm)
25C.	+++++++	[1]	PLATE;THRUST	(t=2.8mm)
25D.	+++++++	[1]	PLATE;THRUST	(t=3.0mm)
25E.	+++++++	[1]	PLATE;THRUST	(t=3.2mm)
26.	0796015	[1]	COVER
27.	0411634	[16]	BOLT;SOCKET
28.	0693019	[3]	PLUG
29.	4506424	[3]	O-RING
100.	4402987	[1]	KIT;SEAL
200.	4468766	[1]	HOLDER
300.	0796016	[1]	KIT;COVER

4466663 250kg Hydraulic Final Drive ZX160 Travel Gearbox With Motor For Hitachi ZX160
