Specifications
Description

DX420LC DH420 SOLAR420LC SOLAR400LC Travel gearbox with motor 401-00005A 401-00004 2401-6357C SOLAR420 Final drive

PRODUCT PARAMETERS
Part name DX420LC DH420 SOLAR420LC SOLAR400LC Final drive
Equipment Apply to DOOSAN EXCAVATOR
Part no. 401-00005A 401-00004 2401-6357C
Frame holes 20
Sprocket holes 28
Item condition New
Logo LB
Gross weight 460KG
MOQ 1 pc

Product Description
401-00005A 401-00004 2401-6357C SOLAR420 Final Drive DX420LC DH420 SOLAR420LC SOLAR400LC Travel Gearbox With Motor

401-00005A 401-00004 2401-6357C SOLAR420 Final Drive DX420LC DH420 SOLAR420LC SOLAR400LC Travel Gearbox With Motor401-00005A 401-00004 2401-6357C SOLAR420 Final Drive DX420LC DH420 SOLAR420LC SOLAR400LC Travel Gearbox With Motor

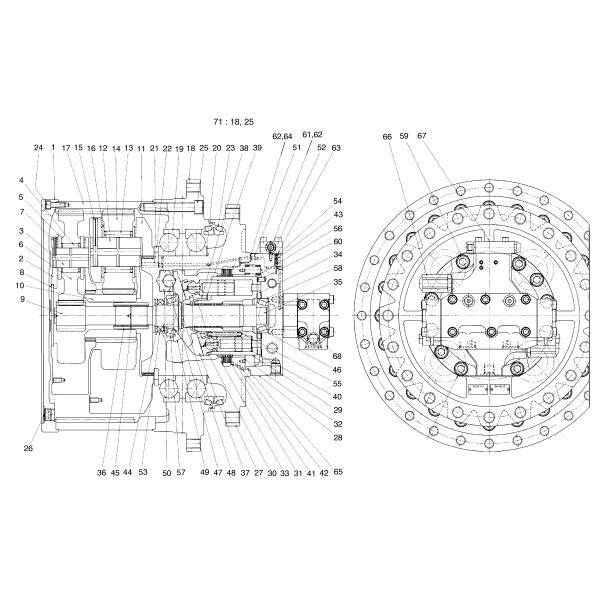

Parts on group SOLAR 420LC-V:

401-00005A 401-00004 2401-6357C SOLAR420 Final Drive DX420LC DH420 SOLAR420LC SOLAR400LC Travel Gearbox With Motor

Parts on group SOLAR 420LC-V:

Pos. Part No Qty Parts name Comments
-. 2401-6357C [1] MOTOR;TRAVEL
-. 401-00005A [1] REDUCTION GEAR;TRAVEL
-. 401-00004 [1] MOTOR;TRAVEL
1. 21622213252-01 [1] COVER
10. 2101-7028A [1] SUN GEAR 2
11. 2230-7024A [1] CARRIER 2
12. 2217-7009A [4] PIN;CARRIER 2
13. 2109-7045 [4] BEARING;NEEDLE K9005136
13. K9005136 [4] BEARING;NEEDLE
14. 2101-7029 [4] PLANETARY 2
15. 2123-7055A [4] PIN;SPRING
16. 2114-7114 [8] WASHER;THRUST
17. 2104-7010A [1] RING GEAR
18. 21622210267-01 [1] HOUSING
19. 2109-7046 [2] BEARING
2. 21622212469-01 [1] CARRIER 1
20. 114-00002 [1] SHIM
21. 2114-7115 [2] WASHER;LOCK
22. 2411-7004 [1] RING;SUPPORT
23. 2180-7134 [1] SEAL;FLOATING
24. S2212261 [24] SOCKET-HEAD BOLT
25. 00020118105-51 [24] BOLT;SOCKET M10X100
26. 120-00001 [2] SCREW;CAP TAPER
27. 2423-7013 [1] CASING
28. 2627-7009 [1] COVER;REAR
29. 2441-7005 [1] BLOCK;CYLINDER
3. 21624212470-01 [3] PIN;CARRIER 1
30. 2223-7003 [1] RETAINER;SHOE
31. 2412-7003 [4] PLATE;FRICTION
32. 2452-7006 [1] PISTON;BRAKE
33. 2352-7004 [5] PLATE;SEPARATING
34. 2412-7004 [1] PLATE;VALVE
35. 2405-7002 [1] SHAFT
36. 2414-7003 [1] COUPLING
37. 2412-7005 [1] PLATE;SWASH
38. 138-00001 [1] JOINT;BALL
39. 2429-7003 [1] HOLDER;SPRING
4. 2109-7044 [3] BEARING;NEEDLE K9005135
4. K9005135 [3] BEARING;NEEDLE
40. 2409-7006 [9] PISTON
41. 2180-7137 [1] D-RING
42. 2180-7138 [1] D-RING
43. 2420-7032 [3] VALVE;CHECK
44. 115-00001 [1] RING;RETAINING
45. 115-00002 [1] RING;RETAINING-C TYPE
46. 2128-7004 [2] SHIM
47. 2409-7007 [1] PISTON SHIFTER
48. 2148-7006 [1] BALL
49. 2171-7004 [2] PIVOT
5. 2114-7113 [6] WASHER;THRUST
50. 2180-7135 [1] SEAL;PISTON
51. 426-00010 [1] RESTRICTOR(0.6)
52. 426-00011 [1] RESTRICTOR(0.8)
53. 2180-7136 [1] SEAL;OIL
54. 2129-7028 [3] SPRING;CHECK VALVE
55. 2129-7027 [9] SPRING;CYLINDER
56. 2129-7026 [14] SPRING;BRAKE
57. 2109-7047 [1] BEARING
58. 2109-7048 [1] BEARING;NEEDLE
59. S2224661 [10] BOLT;SOCKET
6. 2101-7026 [3] PLANETARY 1
60. 2123-7054 [1] PIN;PARALLEL
61. S8000061 [3] O-RING
62. S8000081 [2] O-RING
63. S8000091 [3] O-RING
64. 2180-7139 [1] O-RING
65. 2180-7140 [1] O-RING
66. 420-00005 [2] VALVE;OVER LOAD RELIEF
67. 420-00006 [1] VALVE;PILOT
68. 2.420-00059 [1] VALVE;BRAKE
7. 02560060036-80 [3] PIN;SPRING
71. K9001037 [1] KIT;HOUSING (18,25)
8. 2412-7006 [1] PLATE;THRUST
9. 2101-7027A [1] SUN GEAR 1
A. K9000979 [1] PISTON ASSY
B. K9000980 [1] SWASH PLATE ASSY
C. K9000981 [1] SHIFTER PISTON ASSY
E. K9000982 [1] SHOE RETAINER ASSY
