PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252
PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252
PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252
PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252
PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252
PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252
PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252
PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252
Specifications
Description

PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252

PRODUCT PARAMETERS
Part name PC400-7 PC400-8 Final drive
Equipment Apply to KOMATSU EXCAVATOR
Part no. 208-27-00312 208-27-00311 208-27-00250
Frame holes 24
Sprocket holes 26
Item condition New
Logo LB
Gross weight 670 KG
MOQ 1 pc

PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252 PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252
Product Description

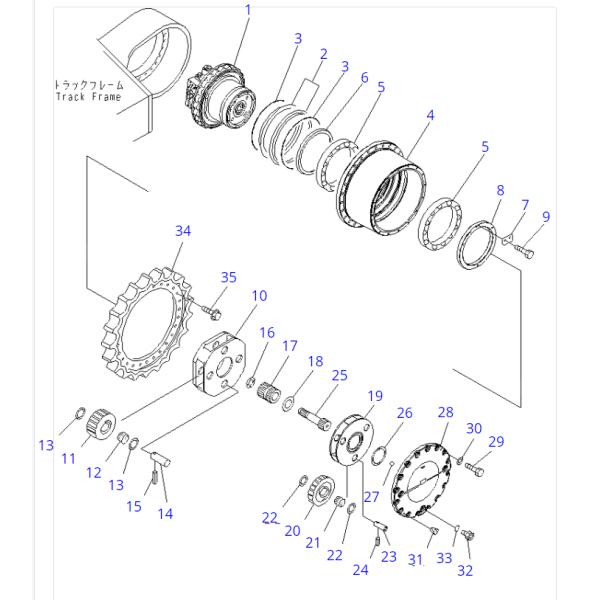

Parts on group :

PC400-7 PC400-8 Final Drive 208-27-00312 208-27-00311 208-27-00250 208-27-00251 208-27-00252

Pos. Part No Qty Parts name Comments
208-27-00252 [1] FINAL DRIVE ASSY Komatsu 755 kg.
["SN: 50810-52138"] analogs:["2082700250", "2082700251", "2082700281", "2082700280", "X212092610"] |$3.
208-27-00251 [1] FINAL DRIVE ASSY Komatsu 755 kg.
["SN: 50524-50809"] analogs:["2082700250", "2082700252", "2082700281", "2082700280", "X212092610"] |$4.
208-27-00250 [1] FINAL DRIVE ASSY Komatsu 755 kg.
["SN: 50001-50523"] analogs:["2082700251", "2082700252", "2082700281", "2082700280", "X212092610"] |$5.
1. 706-8J-01020 [1] MOTOR ASSY Komatsu OEM 220 kg.
["SN: 50001-52138"]
17M-27-00121 [1] FLOATING SEAL ASSY Komatsu China 3.7 kg.
["SN: 50001-@"] analogs:["2873300010", "17M2700120", "1802700011"] |$9.
4. 208-27-71151 [1] GEAR Komatsu OEM 260 kg.
["SN: 50524-52138"] analogs:["2082771150"]
4. 208-27-71150 [1] GEAR Komatsu OEM 260 kg.
["SN: 50001-50523"] analogs:["2082771151"]
5. 208-27-71210 [2] BEARING Komatsu OEM 9.44 kg.
["SN: 50001-52138"]
6. 208-27-71310 [1] COLLAR Komatsu 2.26 kg.
["SN: 50001-52138"]
7. 208-27-71270 [1] LOCK Komatsu 0.05 kg.
["SN: 50001-52138"]
8. 208-27-71260 [1] LOCK Komatsu 7.17 kg.
["SN: 50001-52138"]
9. 01010-81020 [2] BOLT Komatsu 0.161 kg.
["SN: 50001-@"] analogs:["801014093", "0101051020", "801015108"]
10. 208-27-71170 [1] CARRIER Komatsu OEM 55 kg.
["SN: 50001-52138"]
11. 208-27-71140 [4] GEAR Komatsu OEM 11.85 kg.
["SN: 50001-52138"]
12. 208-27-71710 [4] BEARING Komatsu OEM 0.65 kg.
["SN: 50001-52138"]
13. 21M-27-11260 [8] THRUST WASHER Komatsu OEM 0.24 kg.
["SN: 50001-52138"]
14. 208-27-71250 [4] PIN Komatsu OEM 2.16 kg.
["SN: 50001-52138"]
15. 20Y-27-21290 [4] PIN Komatsu OEM 0.03 kg.
["SN: 50001-@"]
16. 207-27-52270 [1] SPACER Komatsu OEM 0.089 kg.
["SN: 50001-@"]
17. 208-27-71130 [1] GEAR Komatsu OEM 4.1 kg.
["SN: 50001-52138"]
18. 208-27-71290 [1] SPACER Komatsu OEM 0.4 kg.
["SN: 50001-52138"]
19. 208-27-71160 [1] CARRIER Komatsu OEM 15.4 kg.
["SN: 50001-52138"]
20. 208-27-71120 [3] GEAR Komatsu OEM 15.3 kg.
["SN: 50001-52138"]
21. 208-27-71720 [3] BEARING Komatsu OEM 0.22 kg.
["SN: 50001-52138"]
22. 20Y-27-21250 [6] WASHER Komatsu China 0.03 kg.
["SN: 50001-52138"]
23. 21M-27-11240 [3] PIN Komatsu OEM 1.17 kg.
["SN: 50001-52138"]
24. 20Y-27-21280 [3] PIN Komatsu China 0.01 kg.
["SN: 50001-@"]
25. 208-27-71112 [1] SHAFT Komatsu OEM 2.7 kg.
["SN: 50001-52138"] analogs:["2082771111"]
26. 20Y-27-11250 [1] SPACER Komatsu OEM 0.044 kg.
["SN: 50001-@"] analogs:["2052771570"]
27. 04260-01905 [1] BALL Komatsu OEM 0.029 kg.
["SN: 50001-52138"]
28. 208-27-71183 [1] COVER Komatsu 43 kg.
["SN: 50810-52138"] analogs:["2082771182"]
28. 208-27-71182 [1] COVER Komatsu 43 kg.
["SN: 50001-50809"] analogs:["2082771183"]
29. 01010-81235 [16] BOLT Komatsu 0.048 kg.
["SN: 50001-52138"] analogs:["0101051235", "01010E1235", "801015136"]
30. 01643-31232 [16] WASHER Komatsu 0.027 kg.
["SN: 50001-52138"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
31. 07049-01215 [2] PLUG Komatsu 0.001 kg.
["SN: 50001-52138"]
32. 20Y-27-31190 [3] PLUG Komatsu 0.07 kg.
["SN: 50001-52138"]
33. 07002-52434 [3] O-RING Komatsu China 0.02 kg.
["SN: 50001-52138"] analogs:["0700242434", "0700052434"]
34. 208-27-61210 [1] SPROCKET Komatsu China 60 kg.
["SN: 50001-@"]
35. 207-27-51311 [26] BOLT Komatsu China 0.222 kg.
["SN: 50001-@"] analogs:["2072751310", "20727K1120", "20727K1130"]
