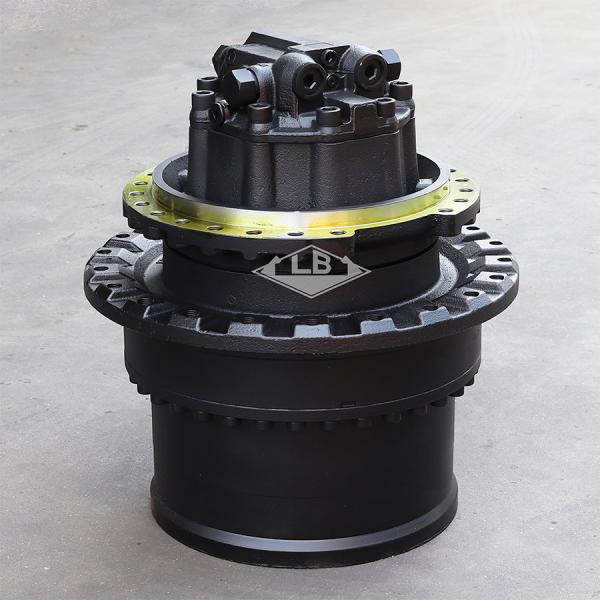

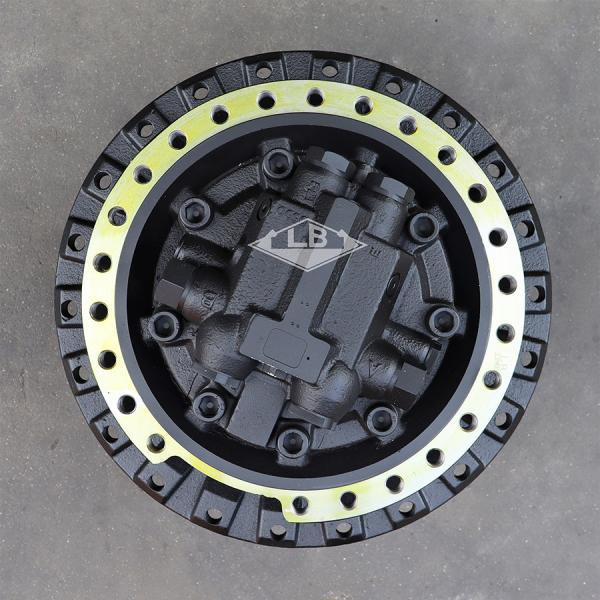

ZX330-3 TRAVEL DEVICE with Travel motor 9244944 9256991 9281920 9281921 ZX330-3 Final drive

PRODUCT PARAMETERS

Product Description

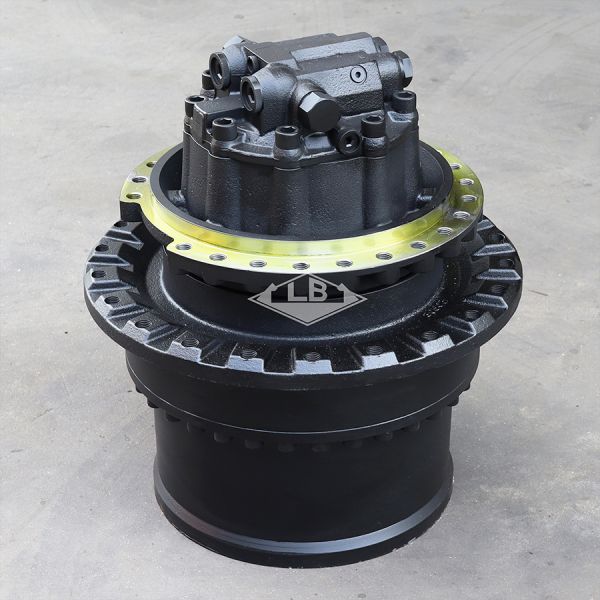

ZX330-3 Final Drive 9244944 9256991 9281920 9281921 ZX330-3 With Travel Motor

ZX330-3 Final Drive 9244944 9256991 9281920 9281921 ZX330-3 With Travel Motor

Pos.	Part No	Qty	Parts name	Comments
	9244944	[1]	TRAVEL DEVICE	I 9256991 <for assembly of machine>
	9256991	[1]	TRAVEL DEVICE	<for transportation>
00.	9251699	[1]	MOTOR;OIL	I 9251477 <for assembly of machine>
00.	9251477	[1]	MOTOR;OIL	<for transportation>
03.	4066695	[1]	SEAL;GROUP	Y 4664392
03.	4664392	[1]	SEAL;GROUP
04.	4629674	[2]	BRG.;ROL.
05.	1033164	[1]	DRUM
06.	1033163	[1]	SPROCKET
07.	A590922	[22]	WASHER;SPRING
08.	J932265	[22]	BOLT
10.	3094717	[1]	NUT
11.	4470326	[1]	PLATE;LOCK
12.	J901225	[2]	BOLT
14.	1032599	[1]	CARRIER
15.	4621530	[3]	SPACER
16.	3103555	[4]	GEAR;PLANETARY
17.	4628768	[8]	BRG.;NEEDLE
18.	4269470	[8]	PLATE;THRUST
19.	4269452	[4]	PIN
20.	4207947	[4]	PIN;SPRING
21.	3103554	[1]	GEAR;SUN
23.	1032600	[1]	GEAR;RING
24.	J931640	[34]	BOLT
26.	1032598	[1]	CARRIER
27.	3103553	[3]	GEAR;PLANETARY
28.	4628766	[3]	BRG.;NEEDLE
29.	4284521	[6]	PLATE;THRUST
30.	4269451	[3]	PIN
31.	4197763	[3]	PIN;SPRING
32.	3103552	[1]	GEAR;SUN
34.	1032597	[1]	CARRIER
36.	3103551	[3]	GEAR;PLANETARY
37.	4455098	[3]	BRG.;NEEDLE
38.	4642993	[6]	PLATE;THRUST
39.	4269472	[3]	PIN
40.	4192020	[3]	PIN;SPRING
41.	2051884	[1]	SHAFT;PROP.
43.	1032596	[1]	COVER
44.	4277474	[1]	PIN;STOPPER
45.	4278168	[1]	BRG.;BALL
46.	930451	[1]	RING;RETAINING
47.	4609016	[20]	BOLT;SEMS
48.	4245797	[3]	PLUG
51.	+++++++	[1]	NAME-PLATE
52.	M492564	[2]	SCREW;DRIVE

ZX330-3 Final Drive 9244944 9256991 9281920 9281921 ZX330-3 With Travel Motor
