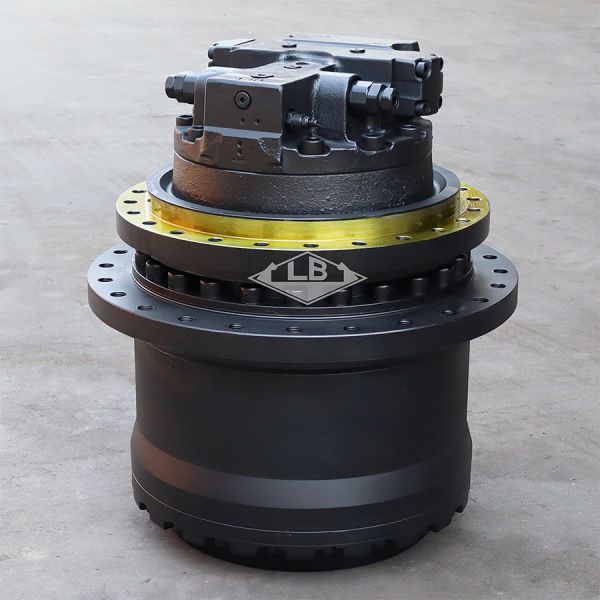

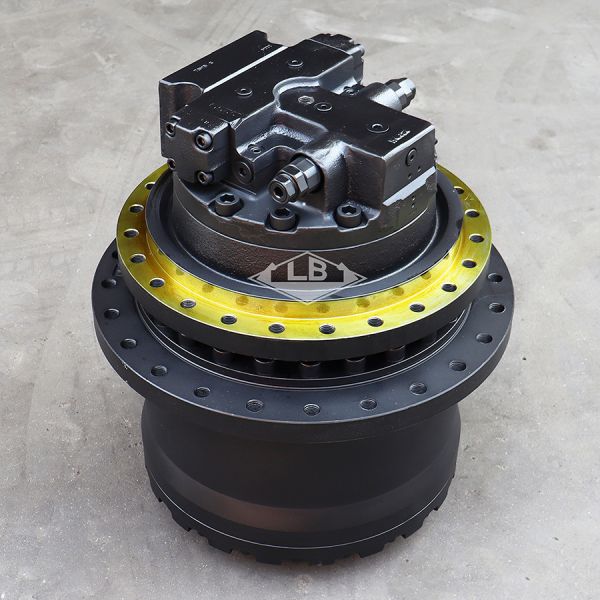

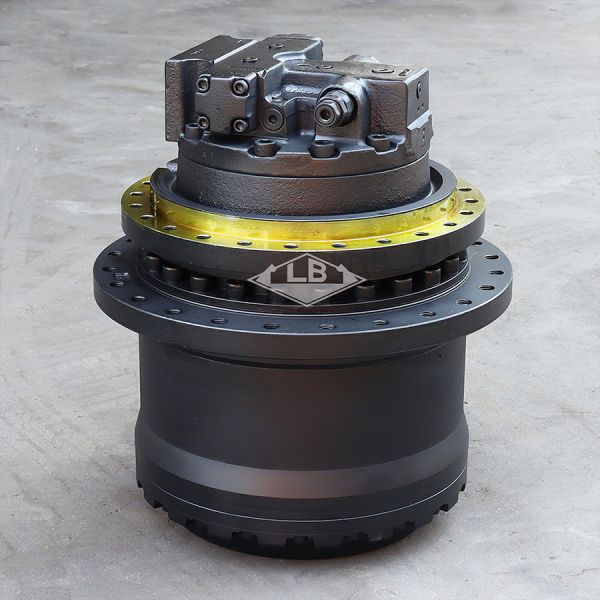

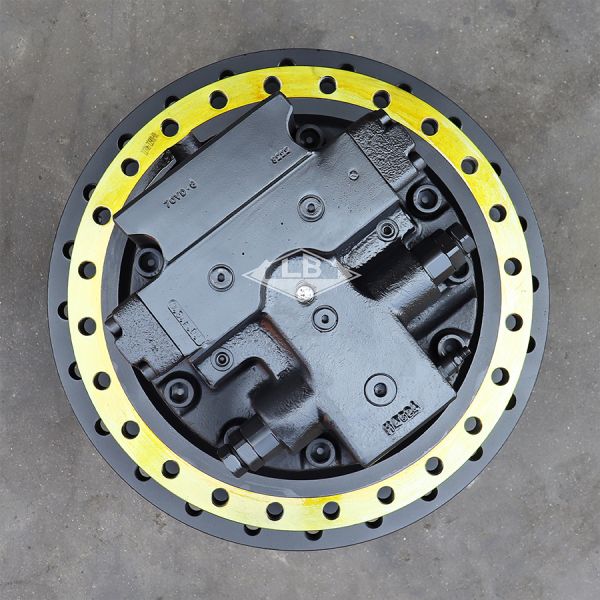

VOLVO EC480D Final drive Travel gearbox with motor VOE14733880 VOE14727995 VOE14631200 EC480D Final drive

PRODUCT PARAMETERS

Product Description

VOLVO EC480D Final Drive Travel Gearbox With Motor VOE14733880 VOE14727995 VOE14631200 EC480D Final Drive

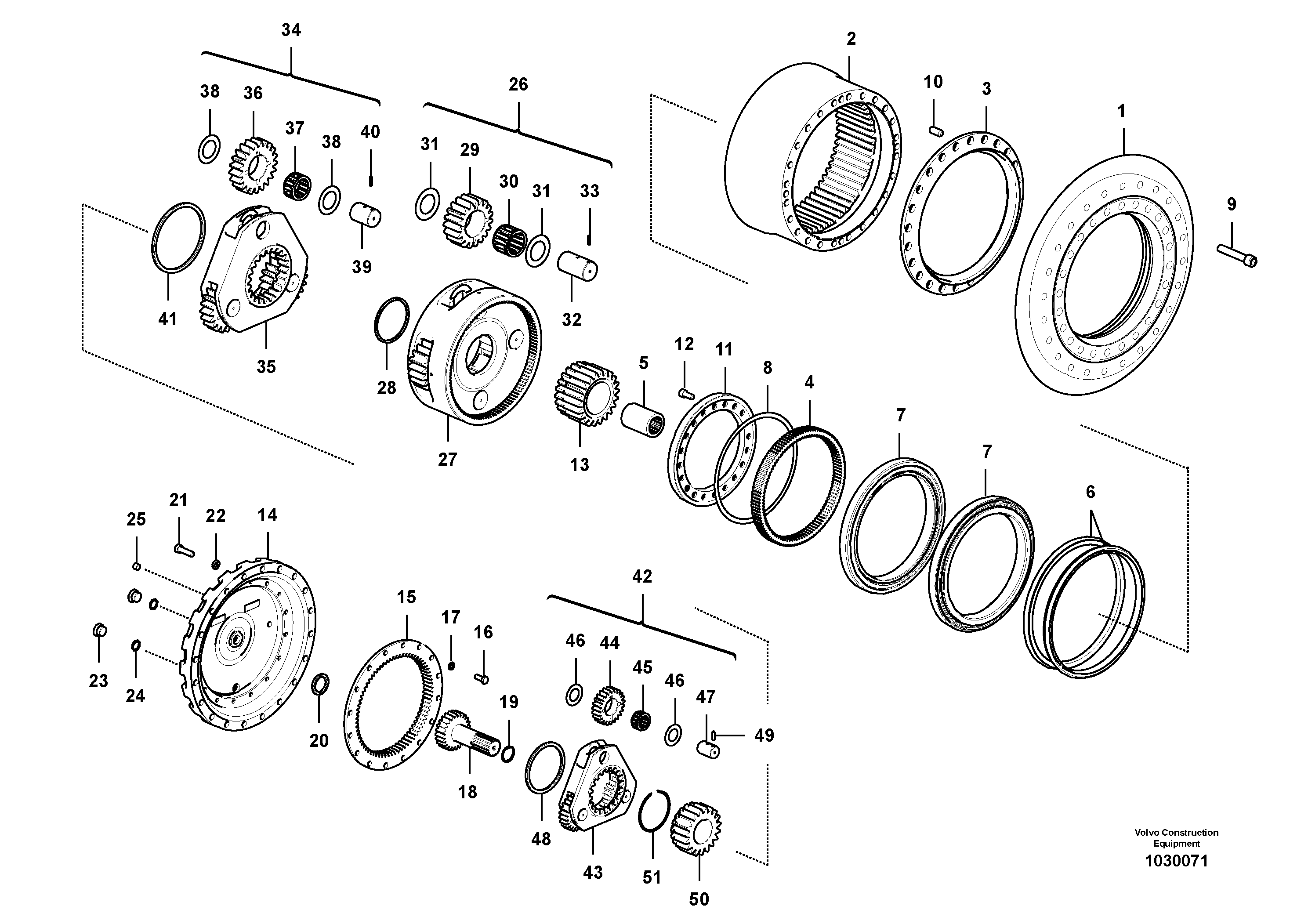

Pos.	Part No	Qty	Parts name
	VOE14631200	[2]	Travel gearbox
1.	VOE14640155	[1]	Housing
2.	VOE14631201	[1]	Gear
3.	VOE14608106	[1]	Seal
4.	VOE14608107	[1]	Gear
5.	VOE14608108	[1]	Flexible coupling
6.	VOE14599925	[2]	Seal
7.	VOE14608104	[2]	Bearing
8.	VOE14608135	[1]	Shim
9.	VOE984848	[24]	Hex. socket screw
10.	SA9324-21821	[4]	Bearing spindle
11.	VOE14608133	[1]	Retainer
12.	VOE997523	[20]	Hex. Socket Screw
13.	VOE14608115	[1]	Gear
14.	VOE14653465	[1]	Cover
15.	VOE14608132	[1]	Gear
16.	VOE997446	[16]	Hexagon screw
17.	VOE955923	[16]	Spring washer
18.	VOE14608130	[1]	Gear
19.	VOE14882389	[1]	Retaining ring
20.	SA1036-00290	[1]	Thrust ring
21.	VOE992578	[20]	Hexagon screw
22.	VOE955925	[20]	Spring washer
23.	VOE14883848	[2]	Plug
24.	VOE983524	[2]	O-ring
25.	SA9415-43032	[1]	Plug
26.	VOE14608109	[1]	Planet carrier
27.	VOE14608110	[1]	Planet carrier
28.	VOE14505753	[1]	Ring
29.	VOE14608111	[4]	Planetary gear
30.	VOE14608112	[4]	Needle bearing
31.	VOE14608113	[8]	Washer
32.	VOE14608114	[4]	Pin
33.	SA9325-06012	[4]	Spring pin
34.	VOE14608116	[1]	Planet carrier
35.	VOE14608117	[1]	Planet carrier
36.	VOE14608118	[3]	Planetary gear
37.	VOE14608119	[3]	Needle bearing
38.	VOE14608120	[6]	Washer
39.	VOE14608121	[3]	Pin
40.	SA9325-06012	[3]	Spring pin
41.	VOE14608122	[1]	Ring
42.	VOE14608124	[1]	Planet carrier
43.	VOE14608125	[1]	Planet Carrier
44.	VOE14608126	[3]	Planetary gear
45.	VOE14608127	[3]	Needle bearing
46.	VOE14608128	[6]	Washer
47.	VOE14608129	[3]	Pin
48.	SA7117-30260	[1]	Thrust ring
49.	SA9325-06012	[3]	Spring pin
50.	VOE14608123	[1]	Gear
51.	VOE14608134	[1]	Ring

VOLVO EC480D Final Drive Travel Gearbox With Motor VOE14733880 VOE14727995 VOE14631200 EC480D Final Drive
