Specifications
Description

ZX120 swing reduction assy 9262017 9277217 ZX120 Swing gearbox

PRODUCT PARAMETERS
Part name ZX120 swing gearbox
Equipment Apply to HITACHI EXCAVATOR
Part no. 9262017 9277217
NO.1 sun gear spline teeth 16 splines
Swing pinion shaft teeth 13T
Item condition New
Logo LB
Gross weight 105 KG
MOQ 1 pc

Product Descriptio

9262017 9277217 ZX120 Swing Gearbox ZX120 Swing Reduction Assy9262017 9277217 ZX120 Swing Gearbox ZX120 Swing Reduction Assy

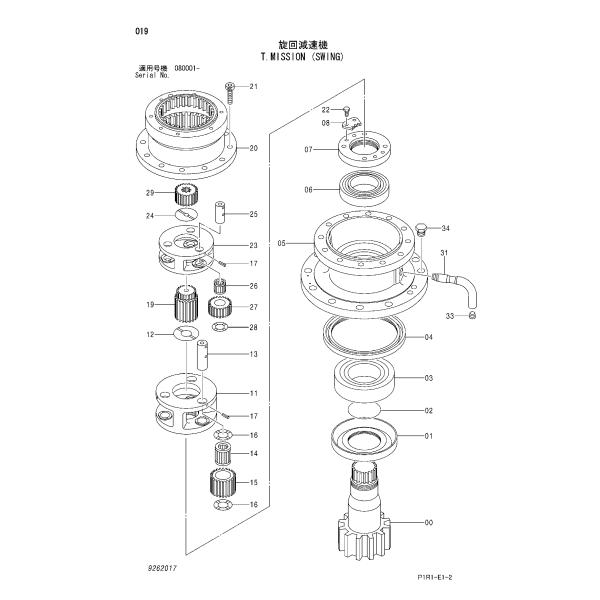

Parts on group T.MISSION (SWING):

9262017 9277217 ZX120 Swing Gearbox ZX120 Swing Reduction Assy

Pos. Part No Qty Parts name Comments
9262017 [1] T.MISSION (SWING) I 9277217 <for assembly of machine>
(9277217) [1] T.MISSION (SWING) <for transportation>
00. 2053848 [1] SHAFT;PROP.
01. 3083710 [1] SLEEVE
02. A811095 [1] O-RING
03. 4430041 [1] BRG.;ROL.
04. 4411143 [1] SEAL;OIL
05. 1033421 [1] HOUSING
06. 4408119 [1] BRG.;ROL.
07. 3083674 [1] NUT
08. 4407745 [1] PLATE;LOCK
11. 2042965 [1] CARRIER
12. 4176070 [1] PLATE;THRUST
13. 4408102 [3] PIN
14. 4414855 [3] BRG.;NEEDLE
15. 3084940 [3] GEAR;PLANETARY
16. 4414833 [6] PLATE;THRUST
17. 4116308 [6] PIN;SPRING
19. 3092035 [1] GEAR;SUN
20. 2045146 [1] GEAR;RING
21. M341440 [12] BOLT;SOCKET
22. J901016 [2] BOLT
23. 2042964 [1] CARRIER
24. 4244904 [1] PLATE;THRUST
25. 4408122 [3] PIN
26. 4430040 [3] BRG.;NEEDLE
27. 3083741 [3] GEAR;PLANETARY
28. 4408002 [3] PLATE;THRUST
29. 3083740 [1] GEAR;SUN
31. 3087949 [1] PIPE
33. 94-2012 [1] PLUG
34. 4445352 [1] PLUG
