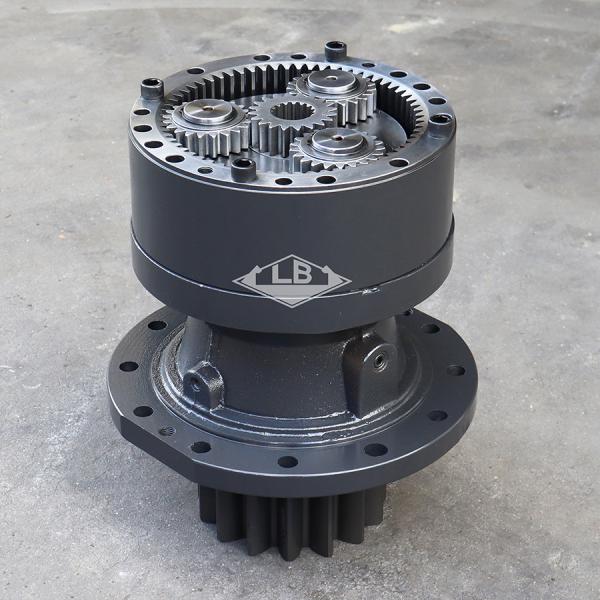

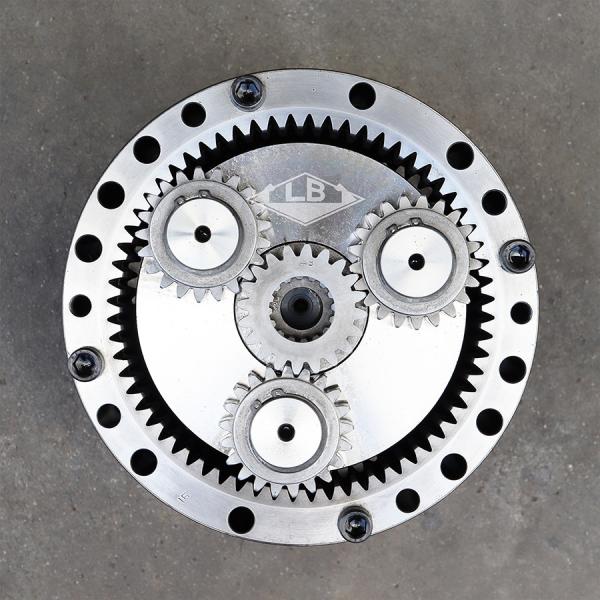

31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly
31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly
31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly
31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly
31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly
31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly
31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly
31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly
Specifications
Description

R450-7 R520-9 swing motor assembly 31QB-10140 31QB-10141 R450-7 SWING GEARBOX

PRODUCT PARAMETERS
Part name R450-7 R520-9 Swing gearbox
Equipmen Apply to HYUNDAI EXCAVATOR
Part no. 31QB-10140 31QB-10141
NO.1 sun gear spline teeth 16 splines
Swing pinion shaft teeth 15T
Item condition New
Logo LB
Gross weight 180KG
MOQ 1 pc

Product Description

31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly

31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly

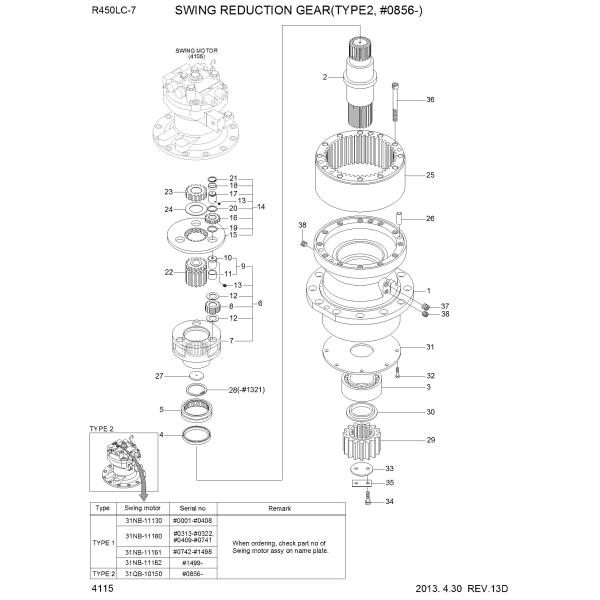

Parts on group SWING REDUCTION GEAR (TYPE 2, #0856-):

31QB-10140 31QB-10141 Excavator Swing Gear Box R450-7 R520-9 Swing Motor Assembly

Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY SEE 4105
*-2. 31QB-10140 [1] SWING REDUCTION GEAR
1. XKAQ-00637 [1] CASING
2. XKAQ-00752 [1] SHAFT-DRIVE
2. XKAQ-00645 [1] SHAFT-DRIVE
3. XKAQ-00026 [1] BEARING-ROLLER
4. XKAQ-00032 [1] SEAL-OIL
5. XKAQ-00029 [1] BEARING-ROLLER
5. XKAQ-00647 [1] BEARING-ROLLER
5. XKAQ-00961 [1] BEARING-ROLLER
6. XKAQ-00753 [1] CARRIER ASSY 2
7. XKAQ-00075 [1] CARRIER 2
8. XKAQ-00023 [3] GEAR-PLANET 2
9. XKAQ-00643 [3] PIN ASSY 2
10. XKAQ-00070 [1] PIN 2 INCL 11
N11. XKAQ-00291 [1] BUSHING 2
12. XKAQ-00644 [6] WASHER-THRUST
13. XKAQ-00048 [6] PIN-SPRING
14. XKAQ-00754 [1] CARRIER ASSY 1
15. XKAQ-00531 [1] CARRIER 1
16. XKAQ-00646 [3] GEAR-PLANET 1
17. XKAQ-00415 [3] PIN 1
18. XKAQ-00030 [3] CAGE-NEEDLE
19. XKAQ-00417 [3] PLATE 1-SIDE
20. XKAQ-00416 [3] PLATE 2-SIDE
21. XKAQ-00041 [3] RING-STOP
22. XKAQ-00755 [1] GEAR-SUN 2
23. XKAQ-00648 [1] GEAR-SUN 1
24. XKAQ-00534 [1] PLATE-SIDE 3
25. XKAQ-00649 [1] GEAR-RING
25. XKAQ-00779 [1] GEAR-RING
26. XKAQ-00072 [2] PIN-KNOCK
27. XKAQ-00404 [1] PLATE-THRUST
28. XKAQ-00074 [1] RING-STOP
29. XKAQ-00287 [1] GEAR-PINION OLD
29. XKAQ-00978 [1] GEAR-PINION NEW
30. XKAQ-00018 [1] SPACER
31. XKAQ-00031 [1] PLATE-COVER
32. XKAQ-00064 [8] BOLT-HEX
33. XKAQ-00043 [1] PLATE-LOCK
34. XKAQ-00042 [2] BOLT-HEX
35. XKAQ-00044 [1] WASHER-LOCK
36. XKAQ-00065 [12] BOLT-SOCKET
37. XKAQ-00049 [1] PLUG
38. XKAQ-00274 [2] PLUG
