Specifications
Description

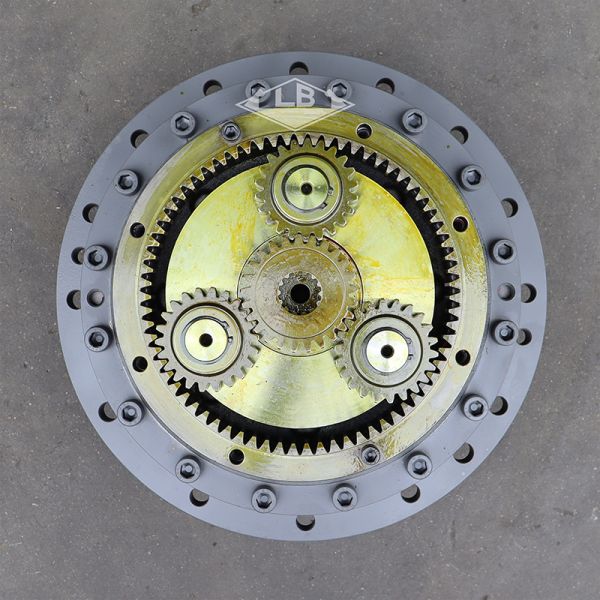

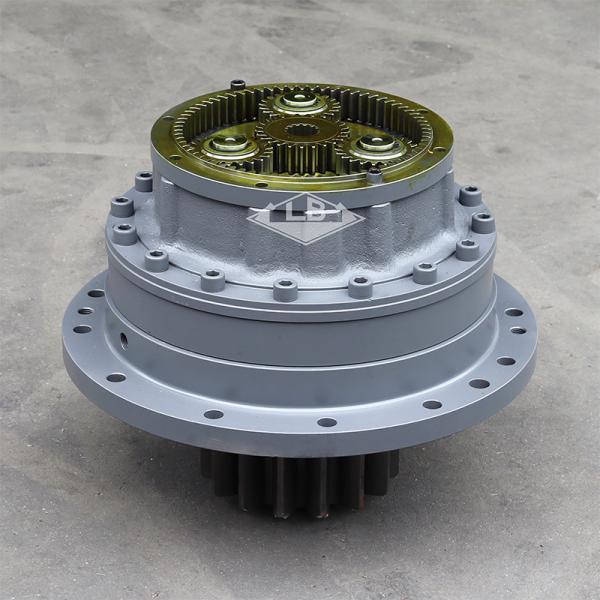

VOLVO EC240 swing reduction gearbox VOE14503783 VOE14542163 VOE7118-34100 EC240 swing gearbox

PRODUCT PARAMETERS
Part name EC240 swing gearbox
Equipment Apply to VOLVO EXCAVATOR
Part no. VOE14503783 VOE14542163 VOE7118-34100
NO.1 sun gear spline teeth 14 splines
Swing pinion shaft teeth 15T
Item condition New
Logo LB
Gross weight 298KG
MOQ 1 pc

Product Descriptio

VOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction GearboxVOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction Gearbox

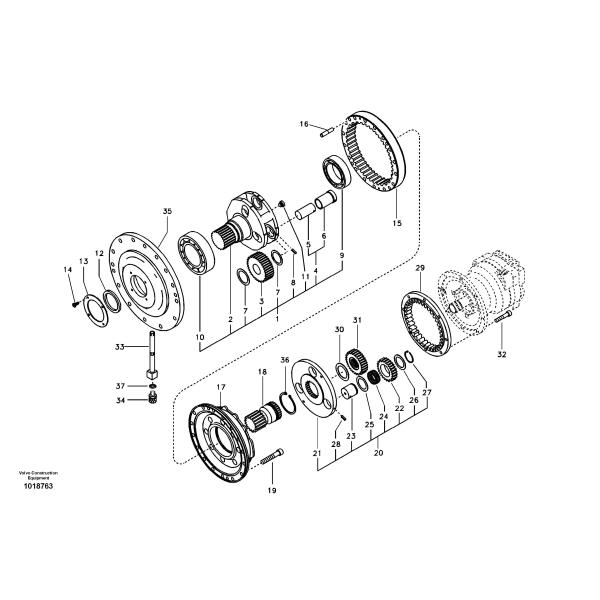

Parts on group Swing gearbox:

VOE14503783 VOE14542163 Swing Gearbox VOLVO EC240 Swing Reduction Gearbox

Pos. Part No Qty Parts name Comments
VOE14542163 [1] Gearbox
1. VOE14518703 [1] Carrier
2. SA1036-00530 [1] Crankshaft
3. SA1036-00550 [3] Planetary Gear
4. SA1036-00610 [3] Pin
5. SA7118-34231 [3] Pin
6. SA7118-34260 [3] Bushing
7. SA1036-00620 [6] Washer
8. SA9325-10012 [3] Spring pin
9. VOE14640028 [1] Bearing
10. SA1036-00710 [1] Bearing
11. SA1036-00630 [1] Knob
12. VOE14558605 [1] Seal SER NO 10001-13402 SER NO 80001-81085
VOE14558605 [1] Seal SER NO 13403- SER NO 81086-
13. SA7118-01560 [1] Plate
14. SA7114-12590 [4] Screw
15. VOE14504206 [1] Gear
16. SA1036-00700 [4] Pin
17. SA7118-34340 [1] Casing
18. VOE14510986 [1] Sun gear
19. VOE984369 [16] Hex. socket screw
20. VOE14550896 [1] Carrier
21. SA7118-34410 [1] Carrier
22. SA7118-34420 [3] Planetary Gear
23. VOE14550897 [3] Pin
24. SA7118-34440 [3] Needle bearing
25. SA7118-34450 [3] Washer
26. SA7118-34460 [3] Washer
27. SA9541-01085 [3] Retaining ring
28. SA9325-08010 [3] Spring pin
29. SA7118-34470 [1] Gear
30. SA7118-34480 [1] Washer
31. SA7118-34490 [1] Sun gear
32. VOE984354 [8] Hex. socket screw
33. VOE14514384 [1] Pipe SER NO 10001-12701 SER NO 30001-30199
VOE14540597 [1] Pipe SER NO 12702- SER NO 30200-
34. SA1012-01500 [1] Valve
35. [1] Casing
36. SA9541-01085 [1] Retaining ring
37. VOE949329 [1] Gasket
100. VOE14526215 [1] Overhaul kit
200. VOE14627726 [1] Housing inc 15,16,35
