Specifications
Description

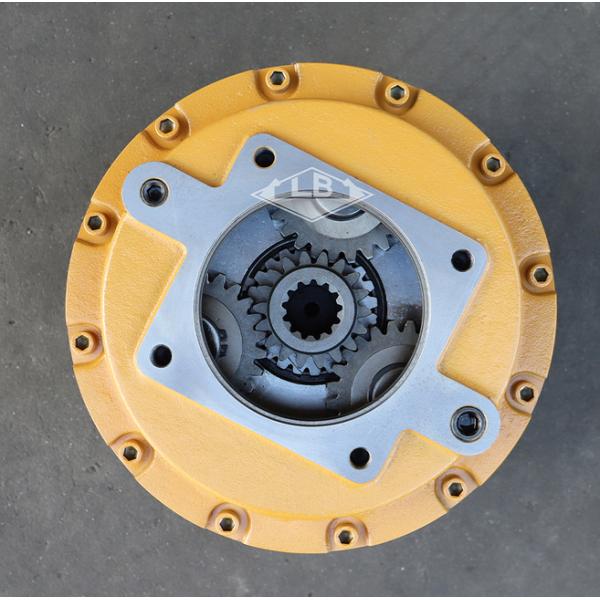

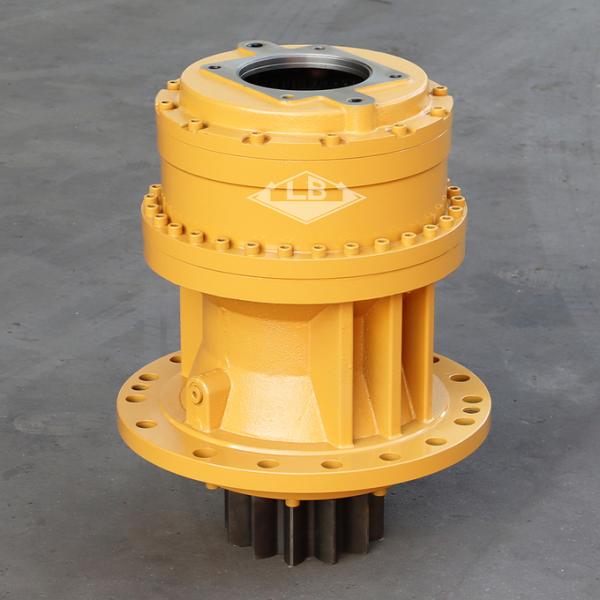

E330D2 E330D2 E330F E326D2 swing drive 418-7154 4187154 E330D2 SWING GEARBOX

PRODUCT PARAMETERS
Part name E330D2 E330F E326D2 Swing gearbox
Equipmen Apply to E EXCAVATOR
Part no. 418-7154
NO.1 sun gear spline teeth 13 splines
Swing pinion shaft teeth 12T
Item condition New
Logo LB
Gross weight
MOQ 1 pc

Product Description

418-7154 4187154 E330D2 Excavator Swing Gear Box E330D2 E330D2 E330F E326D2 Swing Drive418-7154 4187154 E330D2 Excavator Swing Gear Box E330D2 E330D2 E330F E326D2 Swing Drive

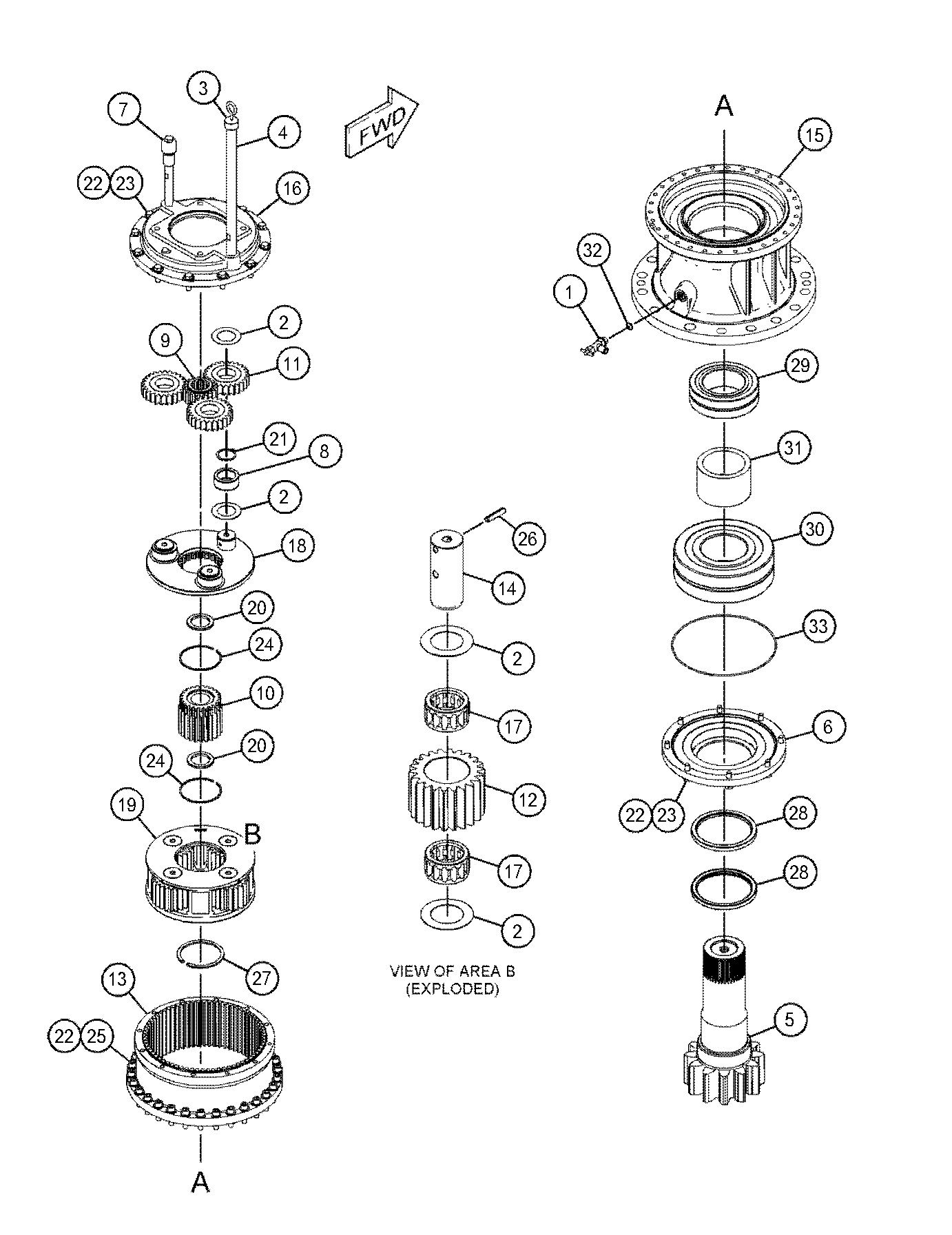

Parts for your 330D2 EXCAVATOR:

418-7154 4187154 E330D2 Excavator Swing Gear Box E330D2 E330D2 E330F E326D2 Swing Drive
Pos. Part No Qty Parts name Comments
1. 6V-7238 [1] VALVE-SHUTOFF (HYDRAULIC OIL)
2. 094-0611 [14] WASHER (47.3X76X1-MM THK)
3. 114-1398 [1] GAUGE-OIL LEVEL (SWING DRIVE)
4. 114-1399 [1] PIPE-GAUGE
5. 191-2694 [1] SHAFT-PINION
6. 191-2696 [1] CAGE
7. 227-6221 [1] BREATHER AS (SWING DRIVE)
4H-6112 [1] BREATHER (SWING DRIVE)
227-6215 [1] BOSS (1/4-18-THD)
267-6785 [1] PIPE
8. 296-6268 [3] BEARING AS-ROLLER
9. 418-7160 [1] GEAR-SUN (13-TEETH, 18-TEETH)
10. 418-7161 [1] GEAR-SUN (23-TEETH)
11. 418-7162 [3] GEAR-PLANETARY (25-TEETH)
12. 418-7163 [4] GEAR-PLANETARY (22-TEETH)
13. 418-7164 [1] GEAR-RING (69-TEETH)
14. 418-7167 [4] SHAFT
15. 418-7196 [1] HOUSING
16. 418-7232 [1] COVER-HOUSING
17. 418-7233 [8] BEARING AS-ROLLER
18. 418-7234 [1] CARRIER AS
19. 418-7235 [1] CARRIER-PLANETARY
20. 422-1352 [2] SPACER (49.6X69.5X6-MM THK)
21. 422-4054 [3] RING-RETAINING
22. 451-2182 [50] WASHER-HARD (13.5X25.5X3-MM THK)
23. 453-3447 M [20] BOLT (M12X1.75X40-MM)
24. 093-1730 [2] RING-RETAINING
25. 095-0670 M [30] BOLT (M12X1.75X45-MM)
26. 509-6676 [4] PIN-SPRING
27. 096-2653 [1] RING-RETAINING
28. 135-9044 [2] SEAL-LIP TYPE
29. 136-2904 [1] BEARING
30. 136-2940 [1] BEARING
31. 191-2697 [1] SPACER (110X140X90.1-MM THK)
32. 3K-0360 [1] SEAL-O-RING
33. 8J-8879 [1] SEAL-O-RING
1U-8846 BF SEALANT-GASKET
B USE AS REQUIRED
F NOT SHOWN
M METRIC PART
