Specifications
Description

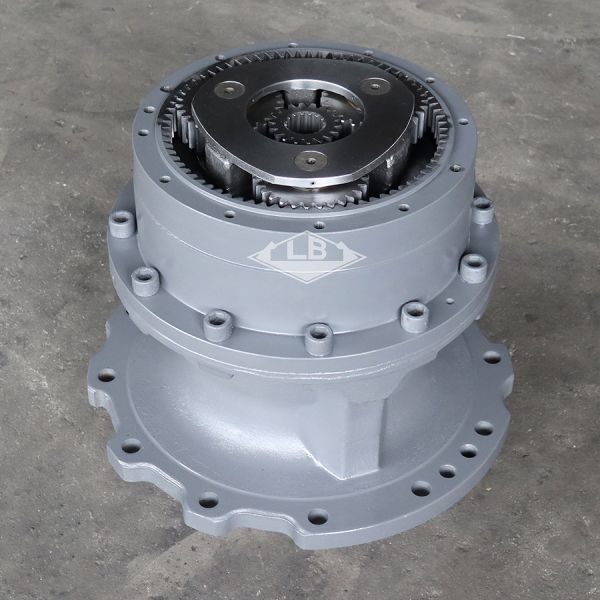

ZX330-1 ZX330-3G SWING DEVICE 9204194 SWING GEARBOX

PRODUCT PARAMETERS
Part name ZX330-1 ZX330-3G swing gearbox
Equipment Apply to HITACHI EXCAVATOR
Part no. 9204194
NO.1 sun gear spline teeth
Swing pinion shaft teeth
Item condition New
Logo LB
Gross weight
MOQ 1 pc

Product Descriptio

9204194 Swing Drive Gearbox ZX330-1 ZX330-3G SWING DEVICE9204194 Swing Drive Gearbox ZX330-1 ZX330-3G SWING DEVICE

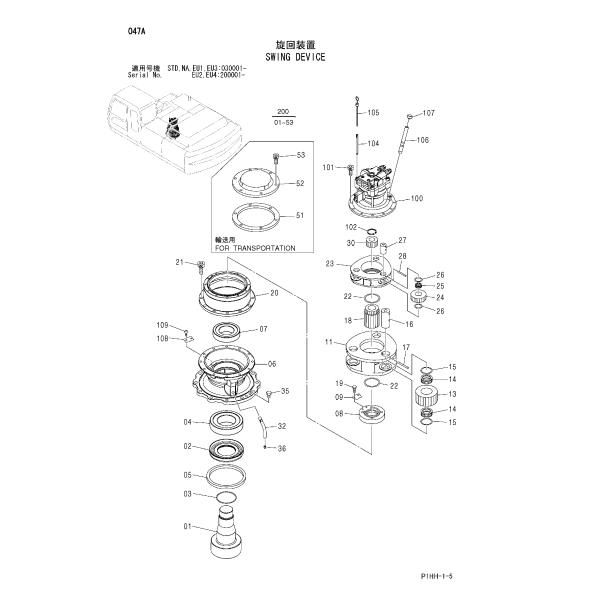

Parts on group SWING DEVICE:

9204194 Swing Drive Gearbox ZX330-1 ZX330-3G SWING DEVICE

Pos. Part No Qty Parts name Comments
01. 2044704 [1] SHAFT;PROP.
02. 3088071 [1] SLEEVE
03. 4412650 [1] O-RING
04. 4430716 [1] BRG.;ROL.
05. 4430715 [1] SEAL;OIL
06. 1027932 [1] HOUSING
07. 4402481 [1] BRG.;ROL.
08. 3088070 [1] NUT
09. 4430563 [1] PLATE;LOCK
11. 2044703 [1] CARRIER
13. 3088069 [3] GEAR;PLANETARY
14. 4445254 [6] BRG.;NEEDLE
15. 4430663 [6] PLATE;THRUST Y 4644567
15. 4644567 [6] PLATE;THRUST
16. 4430714 [3] PIN
17. 4404947 [3] PIN;SPRING
18. 3075692 [1] GEAR;SUN
19. J901016 [2] BOLT
20. 1027953 [1] GEAR;RING
21. M342050 [12] BOLT;SOCKET
22. 4194454 [2] PLATE;THRUST
23. 1027952 [1] CARRIER
24. 3088063 [3] GEAR;PLANETARY
25. 4190117 [3] BRG.;NEEDLE
26. 4430667 [6] PLATE;THRUST
27. 4144558 [3] PIN
28. 4144525 [3] PIN;SPRING
30. 3088062 [1] GEAR;SUN
32. 3088126 [1] PIPE
35. 4445354 [2] PLUG
36. 94-2012 [1] PLUG
51. 3080001 [1] PACKING (for transportation)
52. 3080000 [1] COVER (for transportation)
53. M341228 [4] BOLT;SOCKET I 4614096
53. 4614096 [4] BOLT;SOCKET (for transportation)
100. 4419718 [1] MOTOR;OIL
101. M341228 [12] BOLT;SOCKET
101. 4614096 [12] BOLT;SOCKET
102. 959499 [1] RING;RETAINING
104. 4264452 [1] PIPE
105. 3074223 [1] GAUGE;LEVEL
106. 4388529 [1] PIPE
107. 4343365 [1] CAP
108. 3053093 [1] NAME-PLATE
109. M492564 [2] SCREW;DRIVE
200. 9204194 [1] SWING DEVICE (WITHOUT MOTOR)
