Specifications
Description

333-3015 3333015 E Excavator Swing Gearbox E318D E318D E318D2 E318D2

PRODUCT PARAMETERS
Part name E318D Swing gearbox
Equipment Apply to E EXCAVATOR
Part no. 333-3015
NO.1 sun gear spline teeth 14 splines
Swing pinion shaft teeth 11T
Item condition New
Logo LB
Gross weight 110 KG
MOQ 1 pc

Product Description

333-3015 3333015 E Excavator Swing Gear Box E318D E318D E318D2 E318D2333-3015 3333015 E Excavator Swing Gear Box E318D E318D E318D2 E318D2

Parts for your 318D L EXCAVATOR:

333-3015 3333015 E Excavator Swing Gear Box E318D E318D E318D2 E318D2

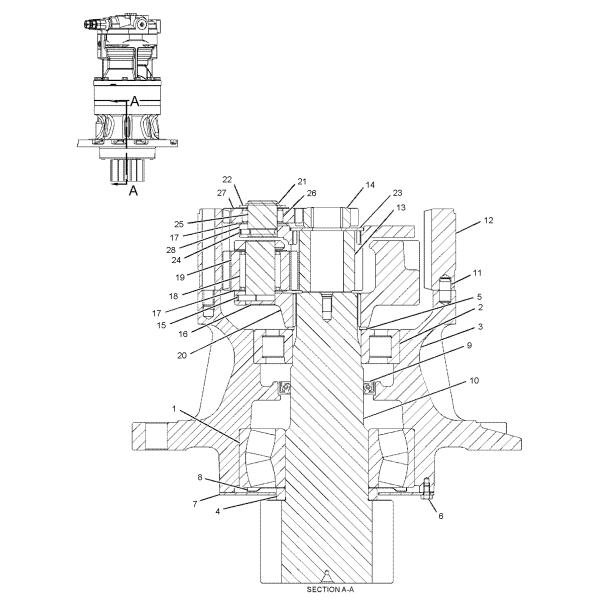

Pos. Part No Qty Parts name Comments
1. 333-3043 [1] BEARING
2. 333-3042 [1] BEARING
3. 333-3057 [1] CASE
4. 333-3047 [1] COLLAR
5. 333-3064 [1] RING
6. 7X-2619 M [6] BOLT (M6X1X10-MM)
7. 333-3062 [2] PLATE
8. 333-3061 [1] SEAL
9. 333-3060 [1] SEAL
10. 333-3056 [1] PINION
11. 093-6089 [2] DOWEL
12. 199-4631 [1] GEAR-RING
13. 333-3055 [1] GEAR-SUN
14. 199-4629 [1] GEAR-SUN
15. 8C-3347 [3] PIN-ROLL
16. 199-4628 [3] SHAFT-PLANETARY
17. 199-4627 [12] WASHER
18. 199-4626 [3] BEARING
19. 199-4625 [3] GEAR-PLANETARY
20. 333-3053 [1] CARRIER
21. 333-3059 [3] RING-RETAINING
22. 333-3058 [3] WASHER-THRUST (30X47X2-MM THK)
23. 191-2605 [1] WASHER (30X75X3-MM THK)
24. 095-0879 [3] PIN-SPRING
25. 333-3051 [3] SHAFT
26. 333-3050 [3] BEARING
27. 333-3049 [3] GEAR-PLANETARY
28. 333-3048 [1] CARRIER
M METRIC PART
