Specifications
Description

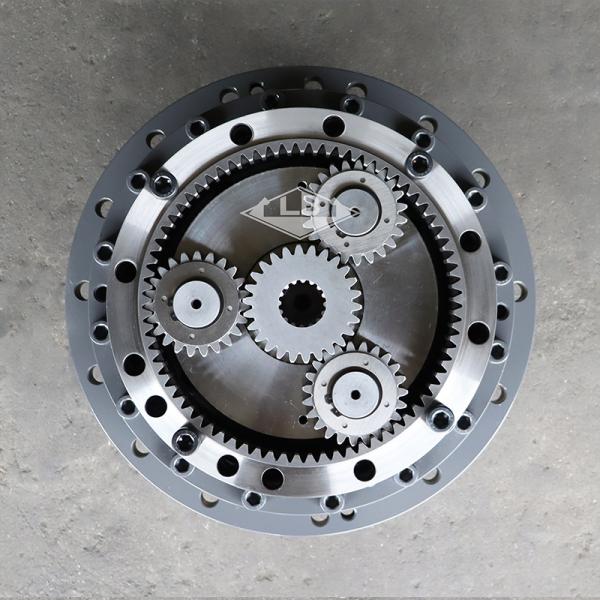

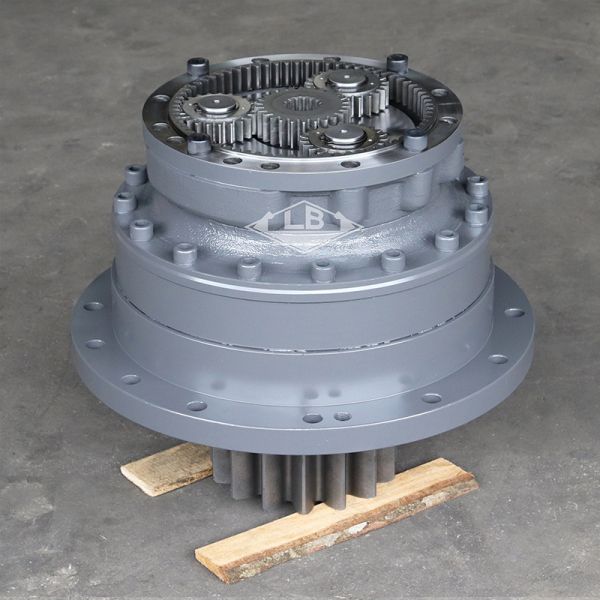

SA7118-38100 VOE14542165 VOLVO EC290 swing gearbox

PRODUCT PARAMETERS
Part name EC290B EC290C Swing gearbox
Equipment Apply to VOLVO EXCAVATOR
Part no. SA7118-38100 VOE14542165
NO.1 sun gear spline teeth 16 splines
Swing pinion shaft teeth 15
Item condition New
Logo LB
Gross weight 180KG
MOQ 1 pc

Product Description

SA7118-38100 Swing Gearbox EC290 VOLVO VOE14542165SA7118-38100 Swing Gearbox EC290 VOLVO VOE14542165

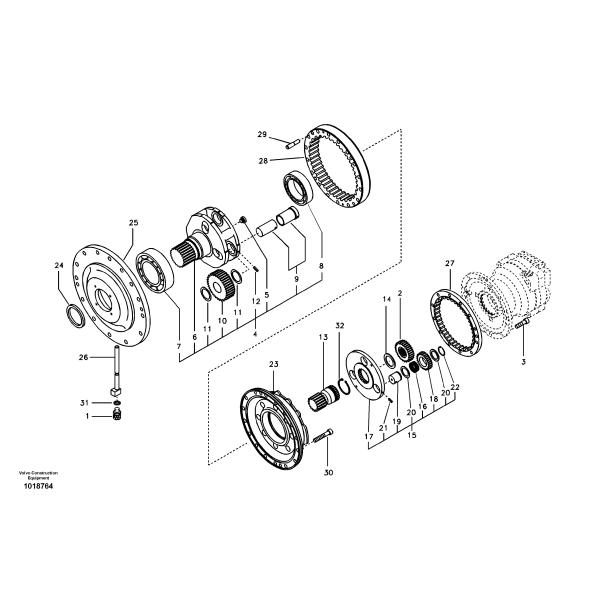

Parts on group Swing gearbox:

SA7118-38100 Swing Gearbox EC290 VOLVO VOE14542165

Pos. Part No Qty Parts name Comments
VOE14542165 [1] Swing gearbox
1. VOE14722461 [1] Draining valve
2. SA1036-00590 [1] Sun gear NO 1
3. SA1036-00750 [12] Bolt SER NO 10001-11003 SER NO 30001-30012
VOE984368 [12] Hex. socket screw SER NO 11004- SER NO 30013-
4. VOE14518702 [1] Carrier NO 2,SER NO 10320- SER NO 30001-
5. SA1036-00630 [1] Knob
6. VOE14504158 [1] Crankshaft
7. VOE14504159 [1] Bearing
8. VOE14504160 [1] Bearing
9. VOE14510173 [3] Pin
10. SA7118-45221 [3] Planetary Gear
11. SA7118-45260 [6] Washer
12. SA9325-10012 [3] Spring pin
13. VOE14504164 [1] Sun gear NO 2
14. SA7118-34480 [1] Washer
15. SA7118-38400 [1] Planet carrier NO 1
16. SA7117-30230 [3] Needle bearing
17. SA7118-38410 [1] Planet carrier
18. SA7118-38420 [3] Planetary Gear
19. SA7118-38430 [3] Pin
20. SA7118-38450 [6] Washer
21. SA9325-08010 [3] Spring pin
22. VOE914470 [3] Snap ring
23. VOE14504161 [1] Casing
24. VOE14504162 [1] Seal
25. [1] Casing
26. VOE14540733 [1] Pipe
27. SA7118-38460 [1] Gear NO 1
28. [1] Gear NO 2
29. SA7118-45380 [4] Pin
30. SA9016-21820 [16] Bolt SER NO 10001-11003 SER NO 30001-30012
VOE984370 [16] Hex. socket screw SER NO 11312- SER NO 30013-
31. VOE949329 [1] Gasket
32. SA9541-01085 [1] Retaining ring
100. VOE14526227 [1] Overhaul kit
200. VOE14553108 [1] Housing inc 25,28,29
