VOE14609494 VOE14619958 VOE14633288 Volvo EC700 Swing gearbox

PRODUCT PARAMETERS

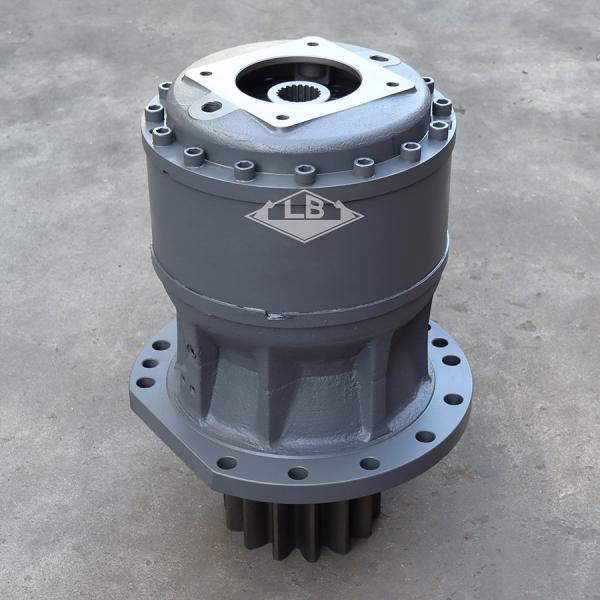

Volvo EC700 Swing Gearbox VOE14609494 VOE14619958 VOE14633288

Volvo EC700 Swing Gearbox VOE14609494 VOE14619958 VOE14633288

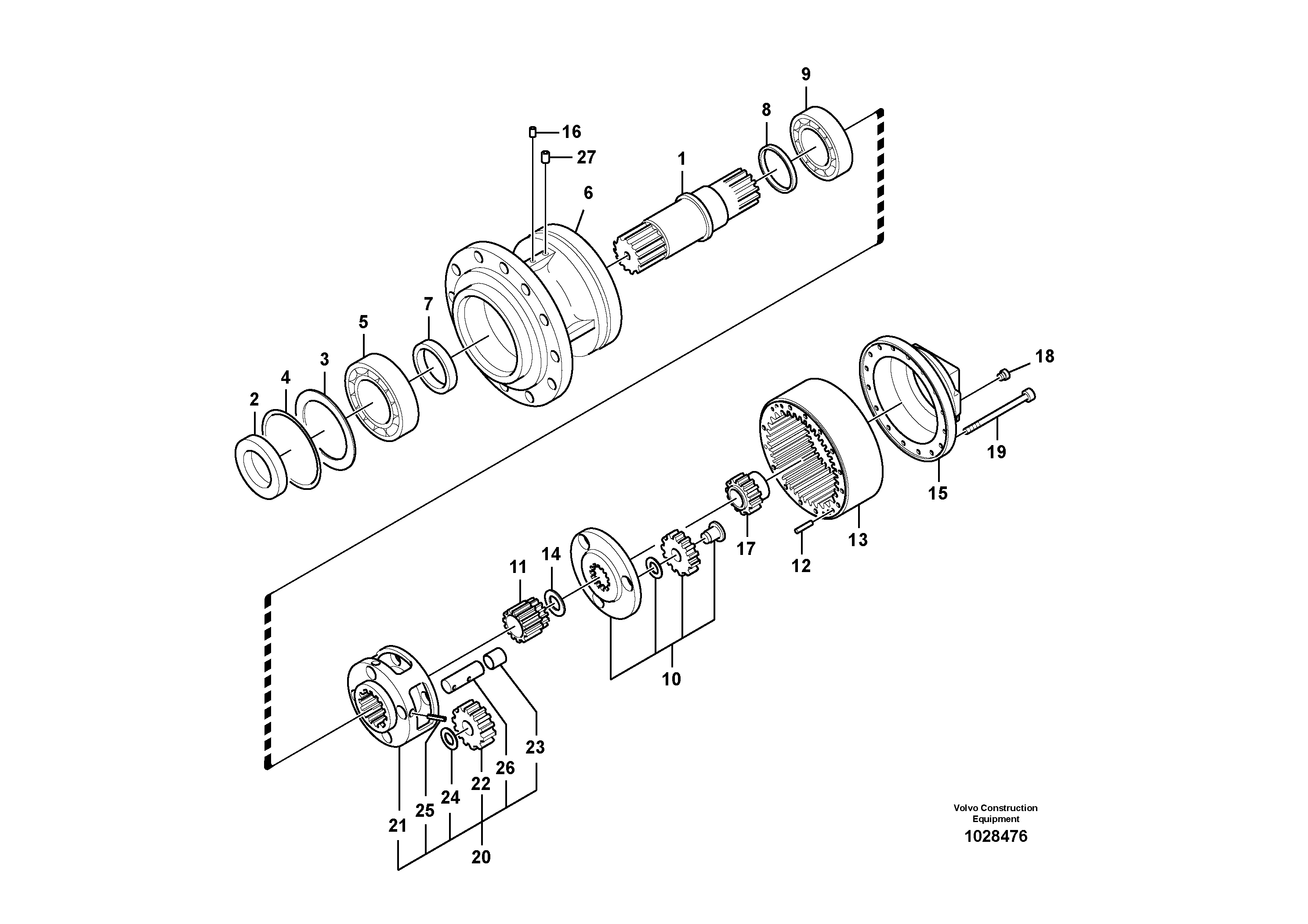

Pos.	Part No	Qty	Parts name
	VOE14609494	[1]	Swing gearbox
1.	VOE14596604	[1]	Shaft
2.	VOE14596608	[1]	Collar
3.	VOE14596607	[1]	Plate
4.	VOE14596610	[1]	Ring
5.	VOE14547261	[1]	Bearing
6.	VOE14535296	[1]	Case
7.	VOE14596605	[1]	Collar
8.	VOE14596611	[1]	Seal
9.	VOE14640028	[1]	Bearing
10.	VOE14609496	[1]	Planet Carrier
11.	VOE14596620	[1]	Gear
12.	SA9324-21317	[4]	Pin
13.	VOE14596613	[1]	Gear
14.	VOE14596621	[1]	Thrust washer
15.	VOE14596630	[1]	Cover
16.	SA9415-43012	[1]	Plug
17.	VOE14609499	[1]	Gear
18.	SA9415-43052	[1]	Plug
19.	VOE993162	[16]	Hex. socket screw
20.	VOE14596614	[1]	Planet carrier
21.	SA8230-22660	[1]	Planet carrier
22.	VOE14596616	[4]	Gear
23.	VOE14596617	[4]	Bushing
24.	VOE14596618	[4]	Washer
25.	VOE952004	[4]	Spring pin
26.	VOE14596619	[4]	Pin
27.	SA9415-43042	[1]	Plug
100.	VOE14568717	[1]	Overhaul kit

Product Description

Volvo EC700 Swing Gearbox VOE14609494 VOE14619958 VOE14633288
