Specifications
Description

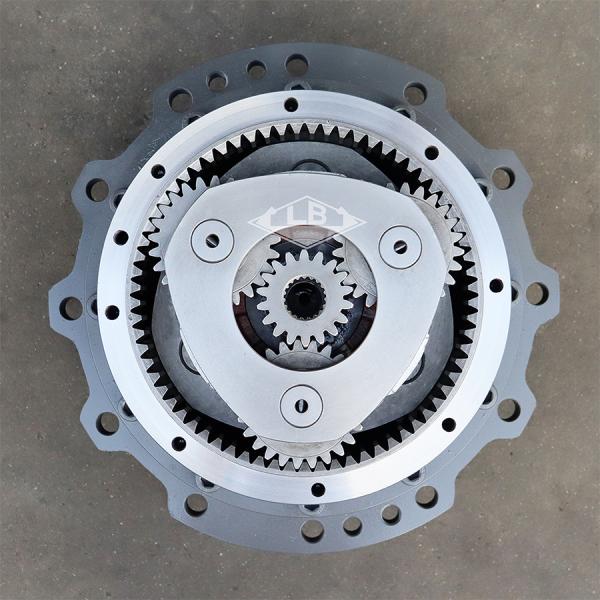

ZX240-3 ZX250-3 SWING DEVICE 9243323 9258608 ZX240-3 SWING GEARBOX

PRODUCT PARAMETERS
Part name ZX240-3 ZX250-3 swing gearbox
Equipment Apply to HITACHI EXCAVATOR
Part no. 9243323 9258608
NO.1 sun gear spline teeth 19 splines
Swing pinion shaft teeth 14T
Item condition New
Logo LB
Gross weight 240 KG
MOQ 1 pc

Product Descriptio

9243323 9258608 ZX240-3 SWING GEARBOX ZX240-3 ZX250-3 SWING DEVICE9243323 9258608 ZX240-3 SWING GEARBOX ZX240-3 ZX250-3 SWING DEVICE

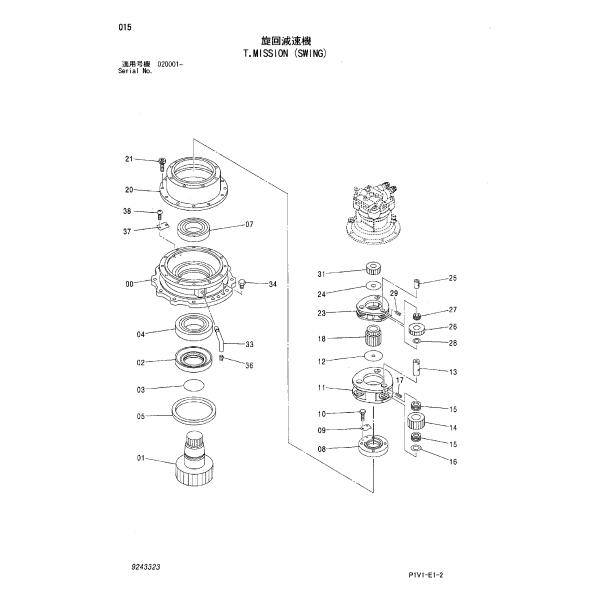

Parts on group T.MISSION (SWING):

9243323 9258608 ZX240-3 SWING GEARBOX ZX240-3 ZX250-3 SWING DEVICE

Pos. Part No Qty Parts name Comments
9243323 [1] T.MISSION (SWING) I 9258608 <for assembly of machine>
(9258608) [1] T.MISSION (SWING) <for transportation>
00. 1033257 [1] HOUSING
01. 2051711 [1] SHAFT;PROP.
02. 3085038 [1] SLEEVE
03. A811130 [1] O-RING
04. 4417903 [1] BRG.;ROL.
05. 4417906 [1] SEAL;OIL
07. 4417904 [1] BRG.;ROL.
08. 3103179 [1] NUT
09. 4474191 [1] PLATE;LOCK
10. J901016 [2] BOLT
11. 1032202 [1] CARRIER
12. 4194454 [1] PLATE;THRUST
13. 4488904 [3] PIN
14. 3101724 [3] GEAR;PLANETARY
15. 4438593 [6] BRG.;NEEDLE
16. 4336929 [3] PLATE;THRUST
17. 4027427 [3] PIN;SPRING
18. 3084656 [1] GEAR;SUN
20. 1032203 [1] GEAR;RING
21. M341840 [12] BOLT;SOCKET
23. 1026812 [1] CARRIER
24. 4187590 [1] PLATE;THRUST
25. 4341941 [3] PIN
26. 3084652 [3] GEAR;PLANETARY
27. 4354748 [3] BRG.;NEEDLE
28. 4347635 [3] PLATE;THRUST
29. 4144018 [3] PIN;SPRING
31. 3084649 [1] GEAR;SUN
33. 3088126 [1] PIPE
34. 4445354 [2] PLUG
36. 94-2012 [1] PLUG
37. +++++++ [1] NAME-PLATE
38. M492564 [2] SCREW;DRIVE
