Specifications
Description

PC400-7 PC400-8 PC450-7 PC450-8 SWING MACHINERY 208-26-00211 208-26-00210 208-26-00220 PC400-7 SWING GEARBOX

PRODUCT PARAMETERS

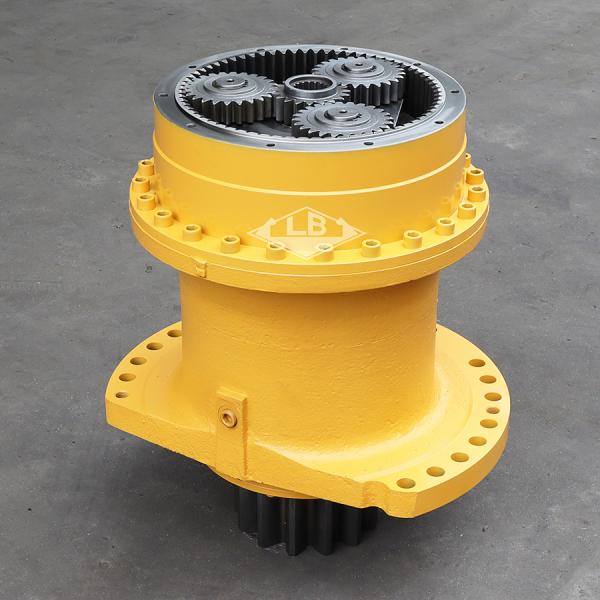

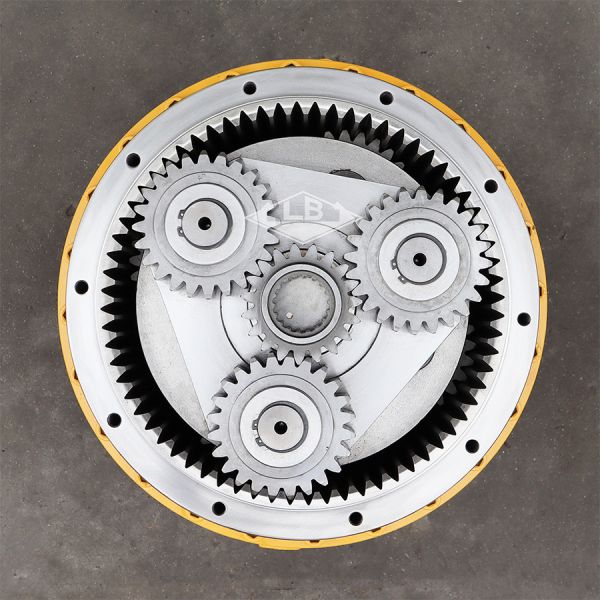

Part name PC400-7 PC400-8 PC450-7 PC450-8 Swing gearbox
Equipment Apply to KOMATSU EXCAVATOR
Part no. 208-26-00211 208-26-00210 208-26-00220
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13T
Item condition New
Logo LB
Gross weight 440 KG
MOQ 1 pc

Product Description

208-26-00211 208-26-00210 208-26-00220 SWING GEARBOX PC400-7 PC400-8 PC450-7 PC450-8 SWING MACHINERY208-26-00211 208-26-00210 208-26-00220 SWING GEARBOX PC400-7 PC400-8 PC450-7 PC450-8 SWING MACHINERY

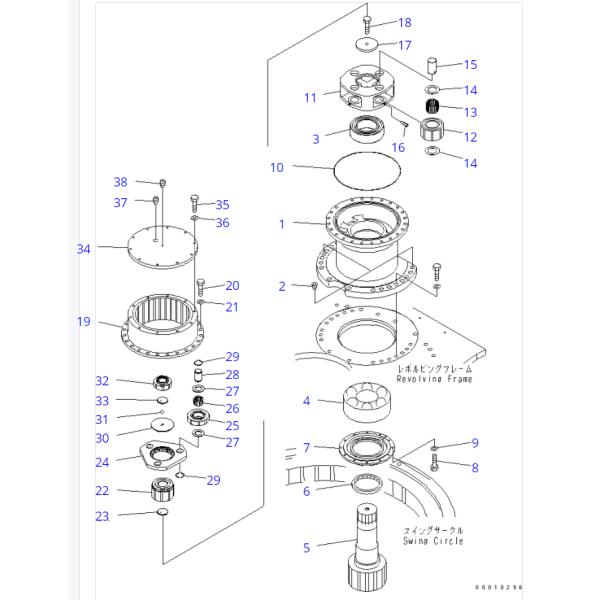

Parts on group :

208-26-00211 208-26-00210 208-26-00220 SWING GEARBOX PC400-7 PC400-8 PC450-7 PC450-8 SWING MACHINERY

Pos. Part No Qty Parts name Comments
208-26-00220 [1] SWING MACHINERY A. Komatsu 0.000 kg.
["SN: 50001-UP"] |$1.
1. 208-26-71190 [1] CASE Komatsu 172 kg.
["SN: 50001-UP"]
2. 07049-02430 [2] PLUG Komatsu 0.003 kg.
["SN: 50001-UP"]
3. 06000-23124 [1] BEARING Komatsu 7.867 kg.
["SN: 50001-UP"]
4. 06000-22326 [1] BEARING Komatsu China 27.94 kg.
["SN: 50001-UP"]
5. 208-26-52242 [1] SHAFT Komatsu 75.5 kg.
["SN: 50001-UP"]
6. 208-26-61310 [1] OIL SEAL Komatsu 0.5 kg.
["SN: 50001-UP"]
7. 208-26-71360 [1] COVER Komatsu 7.9 kg.
["SN: 50001-UP"]
8. 01010-81030 [12] BOLT Komatsu OEM 0.03 kg.
["SN: 50001-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
9. 01643-31032 [12] WASHER Komatsu 0.054 kg.
["SN: 50001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
10. 07000-55390 [1] O-RING Komatsu 0.041 kg.
["SN: 50001-UP"] analogs:["0700045390"]
11. 208-26-71181 [1] CARRIER Komatsu 19 kg.
["SN: 50001-UP"] analogs:["2082671180"]
12. 208-26-71140 [4] GEAR Komatsu 4.72 kg.
["SN: 50001-UP"]
13. 207-27-61230 [4] BEARING Komatsu 0.65 kg.
["SN: 50001-UP"]
14. 20Y-27-21250 [8] WASHER Komatsu China 0.03 kg.
["SN: 50001-UP"]
15. 207-27-61250 [4] PIN Komatsu China 1.75 kg.
["SN: 50001-UP"]
16. 20Y-27-21290 [4] PIN Komatsu OEM 0.03 kg.
["SN: 50001-UP"]
17. 208-26-71230 [1] PLATE Komatsu China
["SN: 50001-UP"]
18. 205-32-51211 [1] BOLT Komatsu 0.17 kg.
["SN: 50001-UP"]
19. 208-26-71150 [1] GEAR Komatsu 57.14 kg.
["SN: 50001-UP"]
20. 01010-81645 [24] BOLT Komatsu China 0.104 kg.
["SN: 50001-UP"] analogs:["0101061645", "801015187", "0101031645", "0101051645", "37A0911184", "801014184"]
21. 01643-31645 [24] WASHER Komatsu 0.072 kg.
["SN: 50001-UP"] analogs:["802170005", "0164301645"]
22. 208-26-71130 [1] GEAR Komatsu 5.1 kg.
["SN: 50001-UP"]
23. 208-26-71241 [1] PLATE Komatsu 0.06 kg.
["SN: 50001-UP"]
24. 208-26-71170 [1] CARRIER Komatsu 7.65 kg.
["SN: 50001-UP"]
25. 207-26-71520 [3] GEAR Komatsu 2 kg.
["SN: 50001-UP"]
26. 22U-26-21470 [3] BEARING Komatsu 0.23 kg.
["SN: 50001-UP"]
27. 22U-26-21240 [6] WASHER Komatsu 0.6 kg.
["SN: 50001-UP"]
28. 207-26-71210 [3] PIN Komatsu 0.66 kg.
["SN: 50001-UP"]
29. 04064-04018 [6] RING Komatsu 0.001 kg.
["SN: 50001-UP"] analogs:["802250040"]
30. 208-26-71210 [1] HOLDER Komatsu 0.42 kg.
["SN: 50001-UP"]
31. 04260-01270 [1] BALL Komatsu OEM 0.009 kg.
["SN: 50001-UP"]
32. 207-26-71510 [1] GEAR Komatsu OEM 1.52 kg.
["SN: 50001-UP"]
33. 207-26-71261 [1] PLATE Komatsu OEM 0.15 kg.
["SN: 50001-UP"]
34. 207-26-71610 [1] COVER Komatsu China
["SN: 50001-UP"]
35. 01010-81240 [10] BOLT Komatsu 0.052 kg.
["SN: 50001-UP"] analogs:["801015573", "0101051240"]
36. 01643-31232 [10] WASHER Komatsu 0.027 kg.
["SN: 50001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
37. 07042-30617 [2] PLUG Komatsu China
["SN: 50001-UP"]
38. 07042-30108 [1] PLUG Komatsu 0.008 kg.
["SN: 50001-UP"] analogs:["0704220108"]
