Specifications
Description

ZX200-3 Swing reduction gear 9260804 9262916 ZX200-3 swing gearbox

PRODUCT PARAMETERS
Part name ZX200-3 swing gearbox
Equipment Apply to HITACHI EXCAVATOR
Part no. 9260804 9262916
NO.1 sun gear spline teeth 19 splines
Swing pinion shaft teeth 13T
Item condition New
Logo LB
Gross weight 230 KG
MOQ 1 pc

Product Descriptio

9260804 9262916 ZX200-3 Swing Gearbox ZX200-3 Swing Reduction Gear9260804 9262916 ZX200-3 Swing Gearbox ZX200-3 Swing Reduction Gear

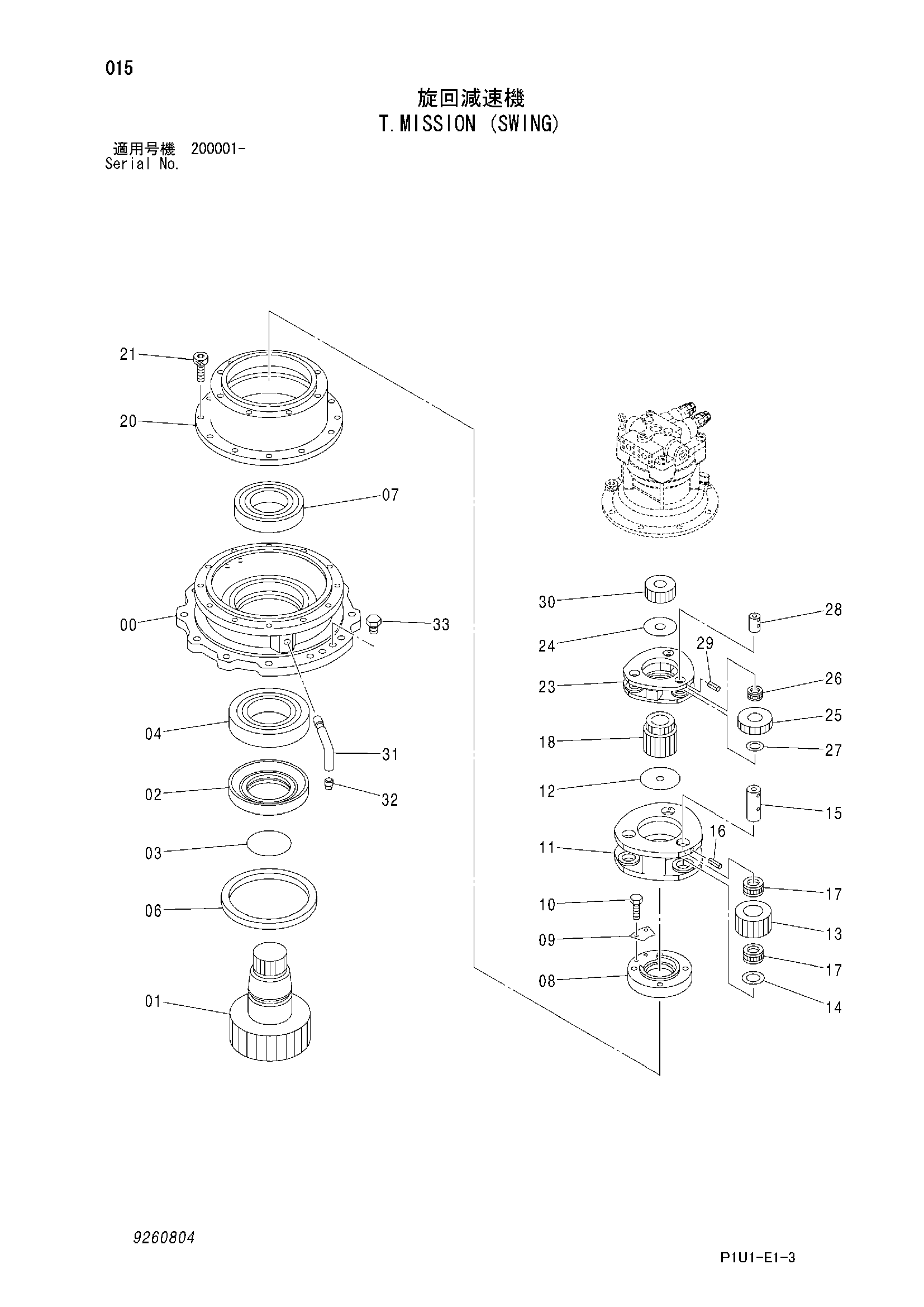

Parts on group T.MISSION (SWING):

9260804 9262916 ZX200-3 Swing Gearbox ZX200-3 Swing Reduction Gear

Pos. Part No Qty Parts name Comments
9260804 [1] T.MISSION (SWING) I 9262916 <for assembly of machine>
9262916 [1] T.MISSION (SWING) <for transportation>
00. 1033370 [1] HOUSING
01. 2053199 [1] SHAFT;PROP.
02. 3083742 [1] SLEEVE
03. A811120 [1] O-RING
04. 4402481 [1] BRG.;ROL.
06. 4411535 [1] SEAL;OIL
07. 4402637 [1] BRG.;ROL. Y 4667150
07. 4667150 [1] BRG.;ROL.
08. 3099830 [1] NUT
09. 4474191 [1] PLATE;LOCK
10. J901016 [2] BOLT
11. 1031849 [1] CARRIER
12. 4187590 [1] PLATE;THRUST
13. 3099815 [3] GEAR;PLANETARY
14. 4336929 [3] PLATE;THRUST
15. 4488904 [3] PIN
16. 4027427 [3] PIN;SPRING
17. 4438593 [6] BRG.;NEEDLE
18. 3099795 [1] GEAR;SUN
20. 1032548 [1] GEAR;RING
21. M341645 [12] BOLT;SOCKET
23. 1031817 [1] CARRIER
24. 4403371 [1] PLATE;THRUST
25. 3102045 [3] GEAR;PLANETARY
26. 4404506 [3] BRG.;NEEDLE
27. 4403082 [3] PLATE;THRUST
28. 4336923 [3] PIN
29. 4051262 [3] PIN;SPRING
30. 3084056 [1] GEAR;SUN
31. 3089362 [1] PIPE
32. 94-2012 [1] PLUG
33. 4445354 [2] PLUG
