Specifications
Description

PC300-8MO PC350-8MO PC360-8MO SWING MACHINERY 207-26-00300 SWING Gearbox

PRODUCT PARAMETERS
Part name PC300-8MO PC350-8MO PC360-8MO Swing gearbox
Equipment Apply to KOMATSU EXCAVATOR
Part no. 207-26-00300
NO.1 sun gear spline teeth 18 splines
Swing pinion shaft teeth 13T
Item condition New
Logo LB
Gross weight 420 KG
MOQ 1 pc

Product Description

207-26-00300 SWING Gearbox PC300-8MO PC350-8MO PC360-8MO SWING MACHINERY207-26-00300 SWING Gearbox PC300-8MO PC350-8MO PC360-8MO SWING MACHINERY

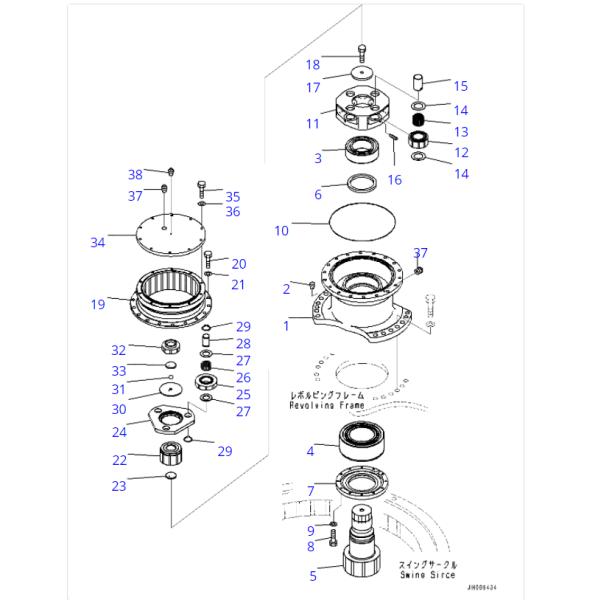

Parts on group :


207-26-00300 SWING Gearbox PC300-8MO PC350-8MO PC360-8MO SWING MACHINERY

Pos. Part No Qty Parts name Comments
https:// 207-26-00300 [1] Swing Machinery Assembly Komatsu China
["SN: 80001-UP"] |$0.
1. 207-26-75130 [1] Case Komatsu China
["SN: 80001-UP"]
2. 07049-02430 [2] Plug Komatsu 0.003 kg.
["SN: 80001-UP"]
3. 207-26-73140 [1] Bearing Komatsu China
["SN: 80001-UP"]
4. 207-26-73150 [1] Bearing Komatsu China
["SN: 80001-UP"]
5. 207-26-62180 [1] Shaft Komatsu OEM 54 kg.
["SN: 80001-UP"] analogs:["2072671160"]
6. 207-26-61210 [1] Seal Komatsu OEM 0.17 kg.
["SN: 80001-UP"]
7. 207-26-75140 [1] Cover Komatsu China
["SN: 80001-UP"]
8. 01010-81030 [12] Bolt Komatsu OEM 0.03 kg.
["SN: 80001-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
9. 01643-31032 [12] Washer Komatsu 0.054 kg.
["SN: 80001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
10. 07000-15390 [1] O-ring Komatsu OEM 0.05 kg.
["SN: 80001-UP"]
11. 207-26-73130 [1] Carrier Komatsu China
["SN: 80001-UP"]
12. 207-26-73120 [4] Gear Komatsu China
["SN: 80001-UP"]
13. 20Y-27-41250 [4] Bearing Komatsu 1.5 kg.
["SN: 80001-UP"]
14. 20Y-27-41270 [8] Washer, Thrust Komatsu 0.03 kg.
["SN: 80001-UP"]
15. 20Y-26-21320 [4] Pin Komatsu China 1.33 kg.
["SN: 80001-UP"]
16. 20Y-26-21330 [4] Pin Komatsu China 0.1 kg.
["SN: 80001-UP"]
17. 207-26-54230 [1] Plate Komatsu China
["SN: 80001-UP"]
18. 205-32-51211 [1] Bolt Komatsu 0.17 kg.
["SN: 80001-UP"]
19. 207-26-71551 [1] Gear, Ring Komatsu 42 kg.
["SN: 80001-UP"] analogs:["2072671550"]
20. 01010-81645 [18] Bolt Komatsu China 0.104 kg.
["SN: 80001-UP"] analogs:["0101061645", "801015187", "0101031645", "0101051645", "37A0911184", "801014184"]
21. 01643-31645 [18] Washer Komatsu 0.072 kg.
["SN: 80001-UP"] analogs:["802170005", "0164301645"]
22. 207-26-73110 [1] Gear Komatsu China
["SN: 80001-UP"]
23. 208-26-71241 [1] Plate Komatsu 0.06 kg.
["SN: 80001-UP"]
24. 208-26-71170 [1] Carrier Komatsu 7.65 kg.
["SN: 80001-UP"]
25. 207-26-71521 [3] Gear Komatsu China
["SN: 80001-UP"]
26. 22U-26-21320 [3] Bearing Komatsu 1.1 kg.
["SN: 80001-UP"]
27. 22U-26-21240 [6] Washer Komatsu 0.6 kg.
["SN: 80001-UP"]
28. 207-26-71210 [3] Pin Komatsu 0.66 kg.
["SN: 80001-UP"]
29. 04064-04018 [6] Ring, Snap Komatsu 0.001 kg.
["SN: 80001-UP"] analogs:["802250040"]
30. 208-26-71210 [1] Holder Komatsu 0.42 kg.
["SN: 80001-UP"]
31. 04260-01270 [1] Ball Komatsu OEM 0.009 kg.
["SN: 80001-UP"]
32. 207-26-71511 [1] Gear Komatsu China
["SN: 80001-UP"]
33. 207-26-71261 [1] Plate Komatsu OEM 0.15 kg.
["SN: 80001-UP"]
34. 207-26-73610 [1] Cover Komatsu China
["SN: 80001-UP"]
35. 01010-81240 [10] Bolt Komatsu 0.052 kg.
["SN: 80001-UP"] analogs:["801015573", "0101051240"]
36. 01643-31232 [10] Washer Komatsu 0.027 kg.
["SN: 80001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
37. 07042-30617 [2] Plug, Taper Komatsu China
["SN: 80001-UP"]
38. 07042-30108 [1] Plug Komatsu 0.008 kg.
["SN: 80001-UP"] analogs:["0704220108"]
