Specifications
Description

CASE800 CX800 TRAVEL REDUCTION GEAR Final drive without motor KUA10580 KUA10590 CX800 Travel gearbox

PRODUCT PARAMETERS
Part name CX800 Travel gearbox
Equipment Apply to CASE EXCAVATOR
Part no. KUA10580 KUA10590
Frame holes 24
Sprocket holes 30
Item condition New
Logo LB
Gross weight 938KG
MOQ 1 pc

Product Description

KUA10580 KUA10590 CX800 Travel Gearbox CASE800 CX800 TRAVEL REDUCTION GEAR Final DriveKUA10580 KUA10590 CX800 Travel Gearbox CASE800 CX800 TRAVEL REDUCTION GEAR Final DriveKUA10580 KUA10590 CX800 Travel Gearbox CASE800 CX800 TRAVEL REDUCTION GEAR Final Drive

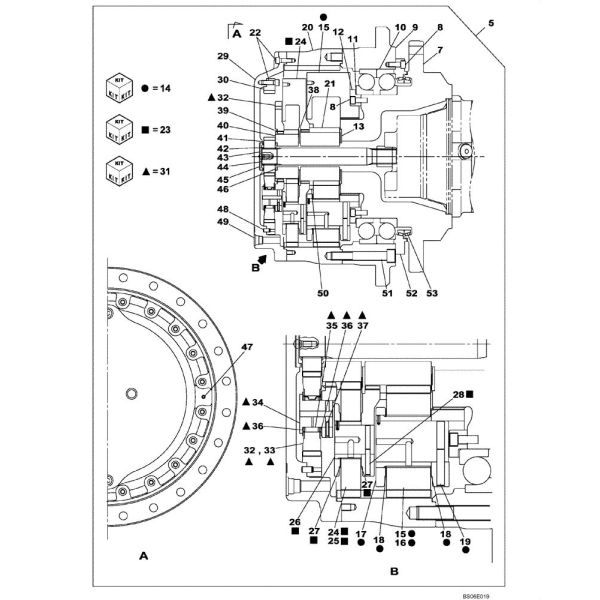

Parts on group (CX800) - CRAWLER EXCAVATOR TIER 3 (NA) (3/06-12/08):

KUA10580 KUA10590 CX800 Travel Gearbox CASE800 CX800 TRAVEL REDUCTION GEAR Final Drive

Pos. Part No Qty Parts name Comments
5. KUA10580 [1] REDUCER SUM Incl. 7 - 53
7. KUA10550 [1] HOUSING SUM
8. 862-14035 [60] HEX SOC SCREW,M14 x 35mm, Cl 12.9 SUM Superseded by part number: 108R014Y035R
9. KUA0016 [1] BEARING HOUSING SUM
10. KUA0020 [2] BEARING, BALL SUM
11. KUA0030 [1] SHIM SUM
12. KUA10500 [1] RETAINER CUP SUM
13. 163918A1 [1] PLATE SUM
14. KUA10570 [1] GEAR SET SUM Incl. 15 - 19
15. NSS [1] NOT SOLD SEPARAT CON Carrier, Planetary
16. NSS [5] NOT SOLD SEPARAT CON Gear, Planetary
17. NSS [5] NOT SOLD SEPARAT CON Pin
18. KUA0029 [10] PLATE SUM
19. NSS [5] NOT SOLD SEPARAT CON Pin, Spring
20. KUA10060 [1] RING GEAR SUM
21. KUA10290 [1] SUN GEAR SUM
22. 862-12035 [32] HEX SOC SCREW,M12 x 35mm, Cl 12.9 SUM
23. KUA10330 [1] GEAR SET SUM Incl. 24 - 28
24. NSS [1] NOT SOLD SEPARAT CON Carrier, Planetary
25. NSS [4] NOT SOLD SEPARAT CON Gear, Planetary
26. NSS [4] NOT SOLD SEPARAT CON Pin
27. 163922A1 [8] PLATE SUM
28. NSS [4] NOT SOLD SEPARAT CON Pin, Spring
29. KUA10190 [1] COVER SUM
30. KUA10050 [1] RING GEAR SUM
31. KUA10320 [1] GEAR SET SUM Incl. 32 - 37
33. NSS [3] NOT SOLD SEPARAT CON Gear, Planetary
34. NSS [3] NOT SOLD SEPARAT CON Pin
35. NSS [3] NOT SOLD SEPARAT CON Bearing, Needle
36. NSS [6] NOT SOLD SEPARAT CON Plate
37. 338W060Z025B [3] COTTER PIN SUM
38. KUA0026 [1] PLATE, THRUST SUM
39. 163924A1 [1] RING SUM
40. KUA10260 [1] SUN GEAR SUM
41. KUA10230 [1] SUN GEAR SUM
42. 800-1150 [2] SNAP RING,M50, Ext CAS Superseded by part number: 8603209
43. KUA10510 [1] THRUST PLATE SUM
44. KUA10220 [1] GEAR SHAFT SUM
45. 163929A1 [1] SHIM SUM
46. 163917A1 [1] PLATE SUM
47. 152K012Y025B [2] SET SCREW SUM M12 x 25
48. 151627A1 [4] PIN SUM
49. 150829A1 [3] PLUG SUM
50. KUA0027 [1] PLATE, THRUST SUM
51. 108R024Y160R [30] BOLT CAS M24 x 160
52. KUA10490 [1] RETAINER SUM
53. KUA0022 [1] PACKAGE SUM
