Specifications
Description
PRODUCT PARAMETERS
Part name

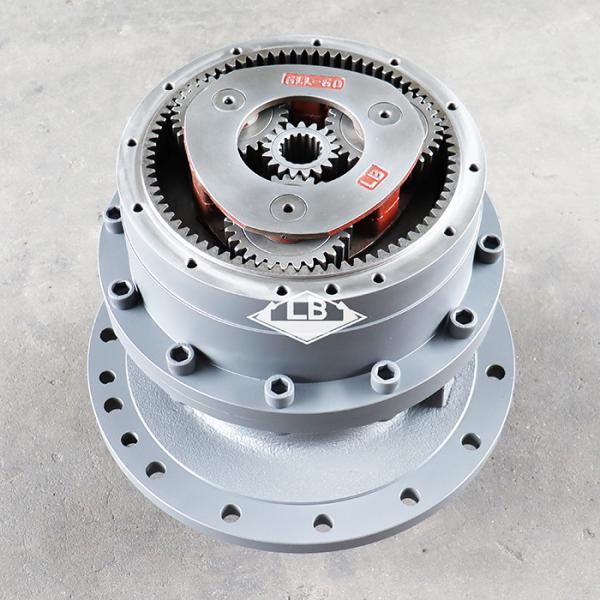

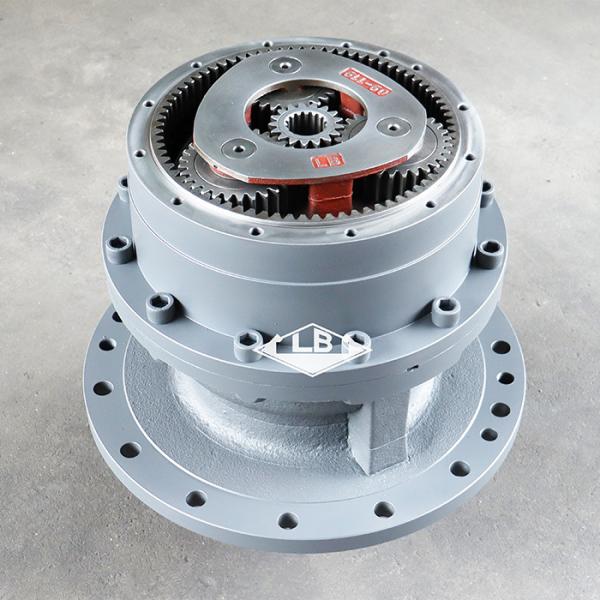

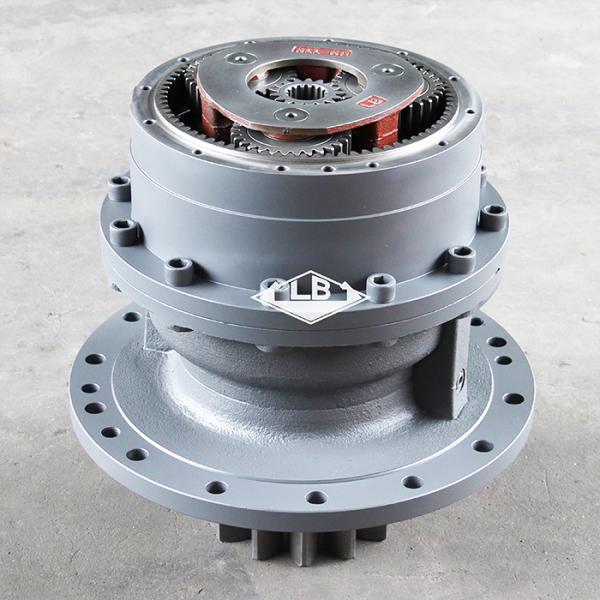

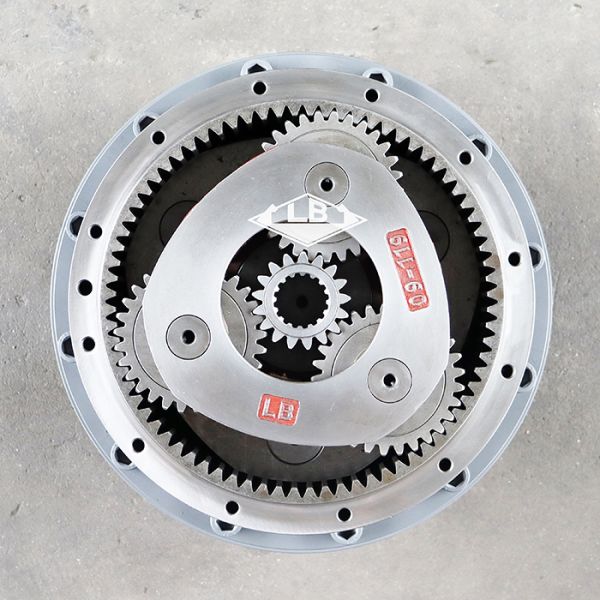

 ZX330-3 ZX330-5G swing gearbox
Equipment Apply to HITACHI EXCAVATOR
Part no. 9236591 9258610
NO.1 sun gear spline teeth 16 splines
Swing pinion shaft teeth 13T
Item condition New
Logo LB
Gross weight 325KG
MOQ 1 pc


Product Descriptio

ZX330-3 ZX330-5G ZX350-5G REDUCER 9236591 9258610 SWING DEVICE ZX330-3 SWING GEARBOXZX330-3 ZX330-5G ZX350-5G REDUCER 9236591 9258610 SWING DEVICE ZX330-3 SWING GEARBOXZX330-3 ZX330-5G ZX350-5G REDUCER 9236591 9258610 SWING DEVICE ZX330-3 SWING GEARBOXZX330-3 ZX330-5G ZX350-5G REDUCER 9236591 9258610 SWING DEVICE ZX330-3 SWING GEARBOX

Parts on group T.MISSION (SWING):

Pos. Part No Qty Parts name Comments

9236591 [1] T.MISSION (SWING) I 9258610 <for assembly of machine>

9258610 [1] T.MISSION (SWING) <for transportation>
00. 1033255 [1] HOUSING
01. 2050987 [1] SHAFT;PROP.
02. 3088071 [1] SLEEVE
03. 4412650 [1] O-RING
04. 4430716 [1] BRG.;ROL.
05. 4430715 [1] SEAL;OIL
07. 4402481 [1] BRG.;ROL.
08. 3101122 [1] NUT
09. 4430563 [1] PLATE;LOCK
10. J901016 [2] BOLT
11. 2050998 [1] CARRIER
13. 3088069 [3] GEAR;PLANETARY
14. 4445254 [6] BRG.;NEEDLE
15. 4644567 [6] PLATE;THRUST
16. 4430714 [3] PIN
17. 4404947 [3] PIN;SPRING
18. 3075692 [1] GEAR;SUN
20. 1032127 [1] GEAR;RING
21. M342050 [12] BOLT;SOCKET
22. 4194454 [2] PLATE;THRUST
23. 1032128 [1] CARRIER
24. 3098513 [3] GEAR;PLANETARY
25. 4190117 [3] BRG.;NEEDLE
26. 4430667 [3] PLATE;THRUST
27. 4144558 [3] PIN
28. 4144525 [3] PIN;SPRING
30. 3101105 [1] GEAR;SUN
32. 3088126 [1] PIPE
36. 94-2012 [1] PLUG
37. 4445354 [2] PLUG
