E315C E315D E315C E315D 210-3529 2103529 Travel gearbox

PRODUCT PARAMETERS

Product Description

210-3529 2103529 Travel Gearbox E EXCAVATOR E315C E315D E315C E315D

210-3529 2103529 Travel Gearbox E EXCAVATOR E315C E315D E315C E315D

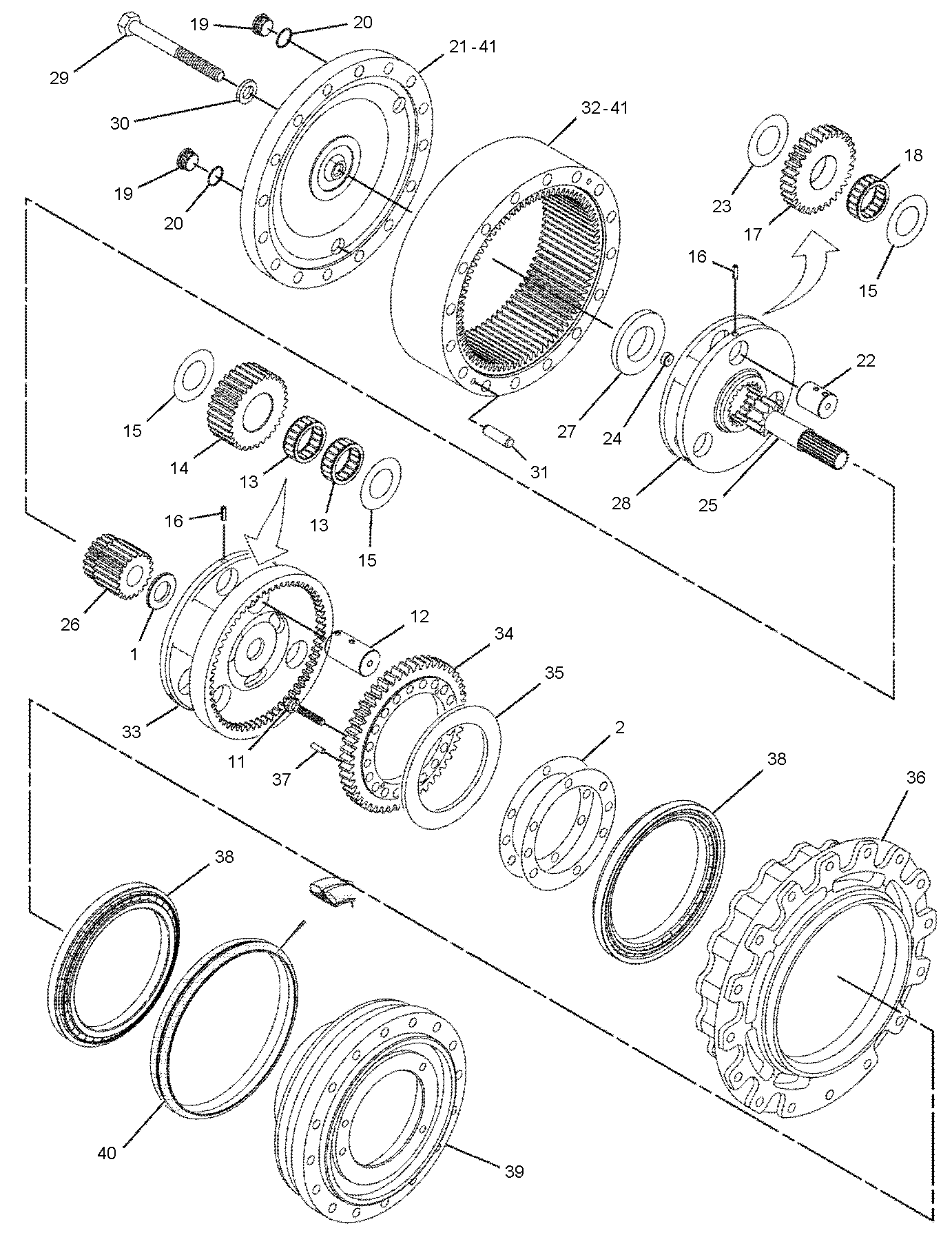

Pos.	Part No	Qty	Parts name
1.	165-5785	[1]	SPACER (40X60.9X1-MM THK)
2.	096-1773 B	[1]	SHIM (0.15-MM THK)
	096-1774 B	[1]	SHIM (0.3-MM THK)
	096-1775 B	[1]	SHIM (0.4-MM THK)
	096-1776 B	[1]	SHIM (0.5-MM THK)
	096-1777 B	[1]	SHIM (0.6-MM THK)
	096-1778 B	[1]	SHIM (0.7-MM THK)
	096-1779 B	[1]	SHIM (0.8-MM THK)
	096-1780 B	[1]	SHIM (1-MM THK)
	096-1781 B	[1]	SHIM (1.6-MM THK)
11.	227-6034 M	[16]	BOLT-FLANGE HEAD (M16X2X60-MM)
12.	165-5786	[3]	SHAFT
13.	094-1542	[6]	BEARING-ROLLER
14.	165-5787	[3]	GEAR-PLANETARY
15.	094-1528	[6]	WASHER (53X84X1-MM THK)
16.	095-0891	[6]	PIN-SPRING
17.	165-5788	[3]	GEAR-PLANETARY
18.	094-0616	[3]	BEARING AS-ROLLER
19.	3E-2338	[2]	PLUG-PIPE
20.	7M-8485	[2]	SEAL-O-RING
21.	165-5790	[1]	COVER
22.	7Y-0225	[3]	SHAFT-PLANETARY
23.	094-0611	[6]	WASHER (47.3X76X1-MM THK)
24.	094-0580	[1]	PLATE (10-MM THK)
25.	165-5792	[1]	GEAR-SUN
26.	165-5793	[1]	GEAR-SUN
27.	165-5794	[1]	SPACER (72X101X7-MM THK)
28.	165-5795	[1]	CARRIER
29.	8T-7929 M	[16]	BOLT (M12X1.75X180-MM)
30.	8T-4223	[16]	WASHER-HARD (13.5X25.5X3-MM THK)
31.	095-1299	[3]	DOWEL
32.	165-3892	[1]	GEAR-RING
33.	165-5796	[1]	CARRIER
34.	165-5797	[1]	GEAR
35.	165-5800	[1]	WASHER (241X282X3-MM THK)
36.	210-3530	[1]	HOUSING
37.	114-1539	[4]	PIN-DOWEL
38.	168-8451	[2]	BALL BEARING
39.	210-3531	[1]	HOUSING-MOTOR
40.	114-1497	[1]	SEAL GP-DUO-CONE
41.	1U-8846 B		SEALANT-GASKET

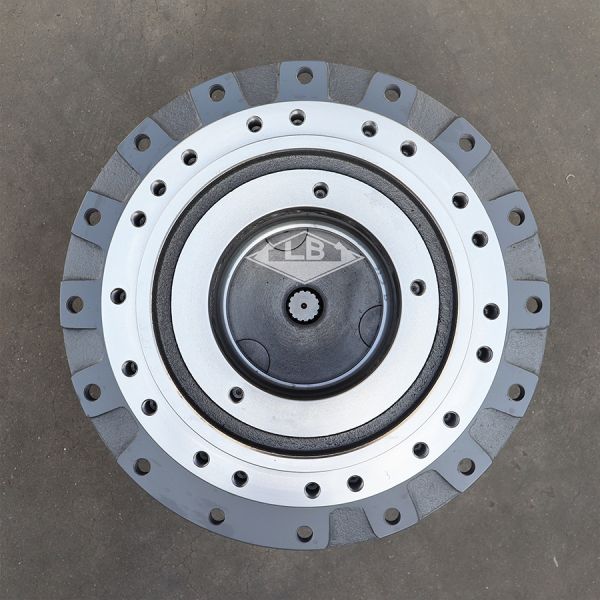

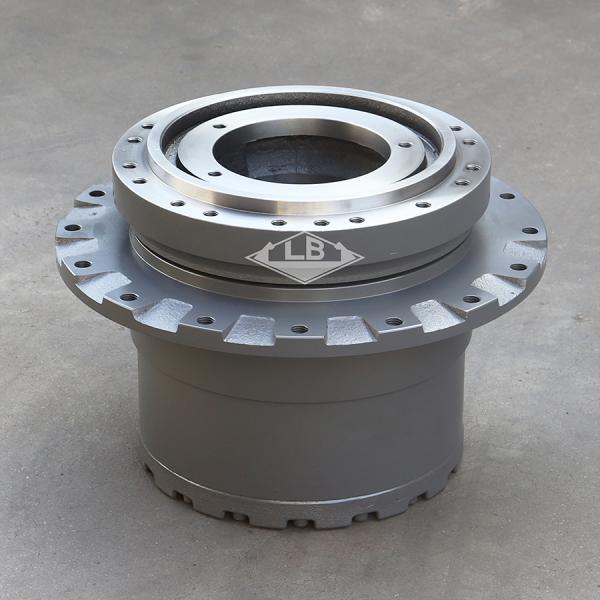

210-3529 2103529 Travel Gearbox E EXCAVATOR E315C E315D E315C E315D
