Specifications
Description

R300 R300-9 R320-9 R330-9 Final drive 39Q8-42100 39Q8-42101 R300-9 Travel gearbox

PRODUCT PARAMETERS

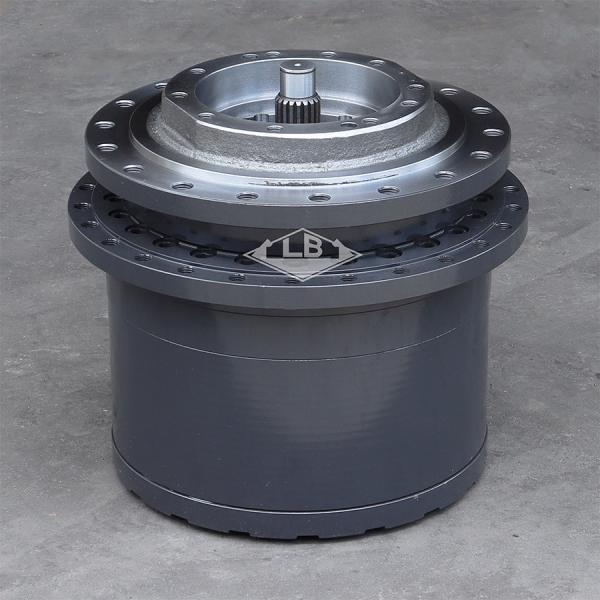

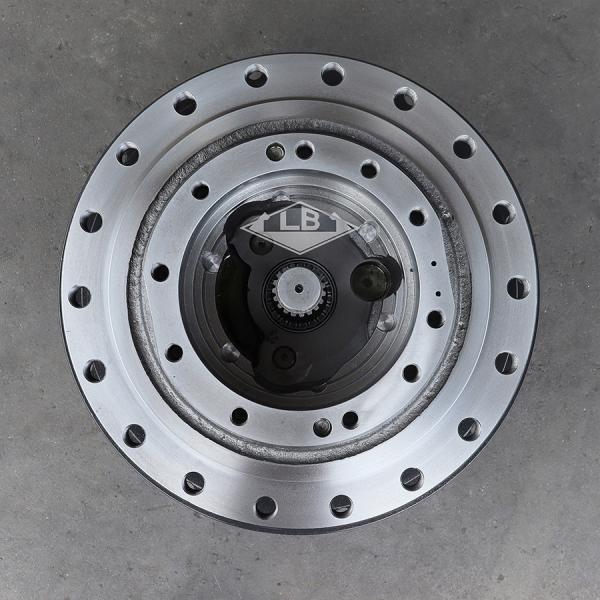

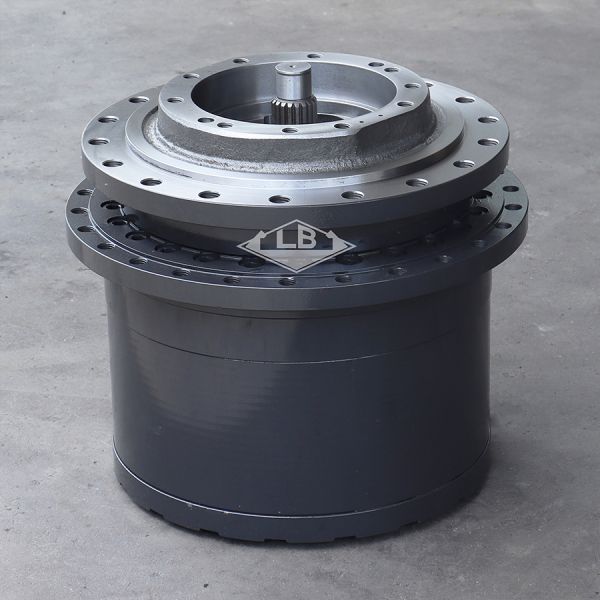

Part name R300-9 Travel gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. 39Q8-42100 39Q8-42101
Frame holes 18
Sprocket holes 26
Item condition New
Logo LB
Gross weight 345 KG
MOQ 1 pc

Product Description

39Q8-42100 39Q8-42101 R300-9 Travel Gear Box R300 R300-9 R320-9 R330-9 Final Drive39Q8-42100 39Q8-42101 R300-9 Travel Gear Box R300 R300-9 R320-9 R330-9 Final Drive

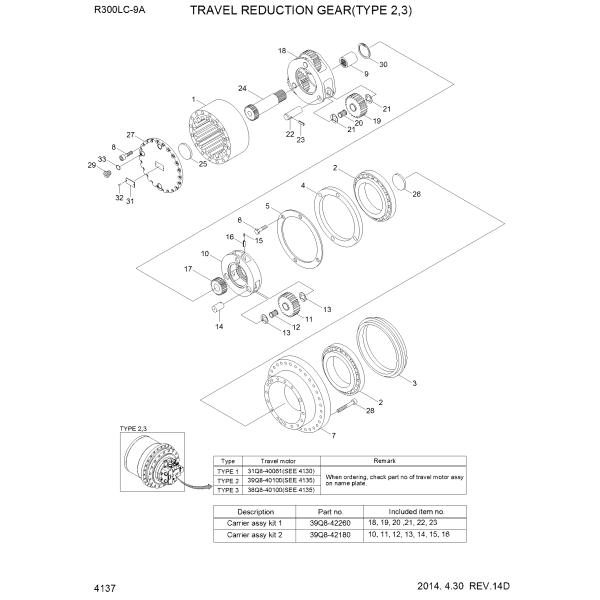

Parts on group TRAVEL REDUCTION GEAR(TYPE 2,3):

39Q8-42100 39Q8-42101 R300-9 Travel Gear Box R300 R300-9 R320-9 R330-9 Final Drive

Pos. Part No Qty Parts name Comments
*. @ [1] TRAVEL MOTOR ASSY SEE 4135, 4136
N*-2. 39Q8-42100 [1] TRAVEL REDUCTION GEAR
N*-2. 39Q8-42101 [1] TRAVEL REDUCTION GEAR
1. 39Q8-42110 [1] GEAR-RING
2. 39Q8-42120 [2] BEARING-ANG.BALL
3. 39Q8-42130 [2] SEAL ASSY-FLOATING
4. 39Q8-42140 [1] RING-NUT
5. 39Q8-42150 [1] PLATE-LOCK
6. S017-120206 [4] BOLT-HEX
7. 39Q8-42160 [1] HOUSING
8. S129-070206 [22] BOLT-SOCKET,UNIFIED
9. 39Q8-42170 [1] COUPLING
9. 39Q8-42171 [1] COUPLING
K10. 39Q8-42190 [1] CARRIER 2
K11. 39Q8-42200 [3] GEAR-PLANETARY 2
K12. 39Q8-42210 [3] BEARING-NEEDLE
K13. 39Q8-42220 [6] WASHER-THRUST 2
K14. 39Q8-42230 [3] PIN-CARRIER 2
K15. XKBR-00128 [3] PIN-SPRING 2
K16. 39Q8-42240 [3] PIN-SOLID
17. 39Q8-42250 [1] GEAR-SUN 2
K18. 39Q8-42270 [1] CARRIER 1
K19. 39Q8-42280 [3] GEAR-PLANETARY 1
K20. 39Q8-42290 [3] BEARING-NEEDLE 1
K21. 39Q8-42300 [6] WASHER-THRUST 1
K22. 39Q8-42310 [3] PIN-CARRIER 1
K23. S472-600504 [3] PIN-SPRING
24. 39Q8-42320 [1] GEAR-SUN 1
25. 39Q6-42320 [1] PLATE-THRUST
26. 39Q8-42330 [1] PLATE-THRUST
27. 39Q8-42340 [1] COVER
28. S109-18140D [25] BOLT-HEX SOCKET HEAD
N28. S109-18140V [25] BOLT-SOCKET
29. P220-110205 [3] PLUG-HEX
30. S602-045001 [1] RING-RETAINING,C TYPE
31. 39Q8-42350 [1] NAME PLATE
32. 39Q6-41800 [2] RIVET
33. S631-024001 [3] O-RING
K. 39Q8-42180 [1] CARRIER ASST KIT 2 SEE ILLUST
K. 39Q8-42260 [1] CARRIER ASST KIT 1 SEE ILLUST
