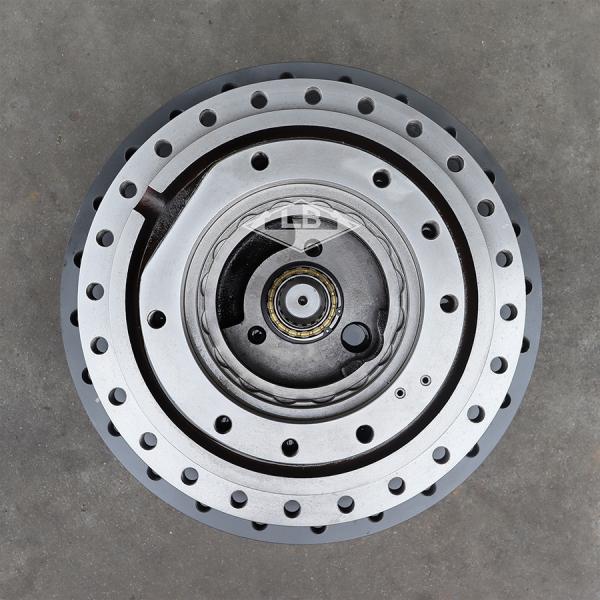

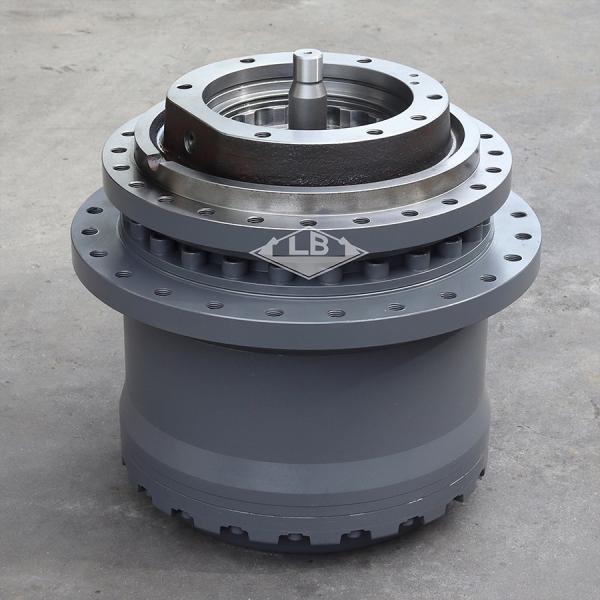

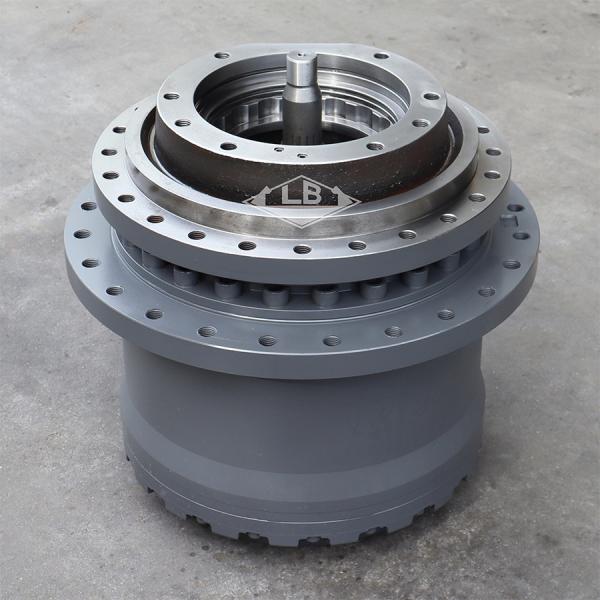

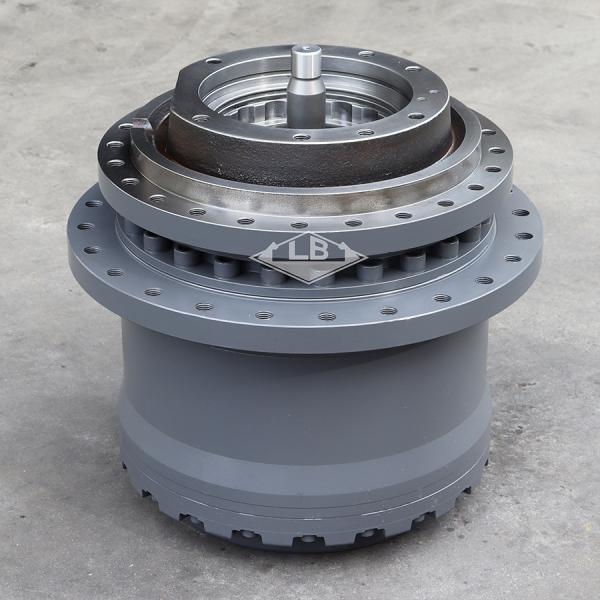

VOLVO EC480 Final drive without motor VOE14631200 Travel gearbox

PRODUCT PARAMETERS

Product Description

VOE14631200 Travel Gear Box VOLVO EC480 Final Drive Without Motor

Pos.	Part No	Qty	Parts name
	VOE14631200	[2]	Travel gearbox
1.	VOE14640155	[1]	Housing
2.	VOE14631201	[1]	Gear
3.	VOE14608106	[1]	Seal
4.	VOE14608107	[1]	Gear
5.	VOE14608108	[1]	Flexible coupling
6.	VOE14599925	[2]	Seal
7.	VOE14608104	[2]	Bearing
8.	VOE14608135	[1]	Shim
9.	VOE984848	[24]	Hex. socket screw
10.	SA9324-21821	[4]	Bearing spindle
11.	VOE14608133	[1]	Retainer
12.	VOE997523	[20]	Hex. Socket Screw
13.	VOE14608115	[1]	Gear
14.	VOE14653465	[1]	Cover
15.	VOE14608132	[1]	Gear
16.	VOE997446	[16]	Hexagon screw
17.	VOE955923	[16]	Spring washer
18.	VOE14608130	[1]	Gear
19.	VOE14882389	[1]	Retaining ring
20.	SA1036-00290	[1]	Thrust ring
21.	VOE992578	[20]	Hexagon screw
22.	VOE955925	[20]	Spring washer
23.	VOE14883848	[2]	Plug
24.	VOE983524	[2]	O-ring
25.	SA9415-43032	[1]	Plug
26.	VOE14608109	[1]	Planet carrier
27.	VOE14608110	[1]	Planet carrier
28.	VOE14505753	[1]	Ring
29.	VOE14608111	[4]	Planetary gear
30.	VOE14608112	[4]	Needle bearing
31.	VOE14608113	[8]	Washer
32.	VOE14608114	[4]	Pin
33.	SA9325-06012	[4]	Spring pin
34.	VOE14608116	[1]	Planet carrier
35.	VOE14608117	[1]	Planet carrier
36.	VOE14608118	[3]	Planetary gear
37.	VOE14608119	[3]	Needle bearing
38.	VOE14608120	[6]	Washer
39.	VOE14608121	[3]	Pin
40.	SA9325-06012	[3]	Spring pin
41.	VOE14608122	[1]	Ring
42.	VOE14608124	[1]	Planet carrier
43.	VOE14608125	[1]	Planet Carrier
44.	VOE14608126	[3]	Planetary gear
45.	VOE14608127	[3]	Needle bearing
46.	VOE14608128	[6]	Washer
47.	VOE14608129	[3]	Pin
48.	SA7117-30260	[1]	Thrust ring
49.	SA9325-06012	[3]	Spring pin
50.	VOE14608123	[1]	Gear
51.	VOE14608134	[1]	Ring

VOE14631200 Travel Gear Box VOLVO EC480 Final Drive Without Motor
