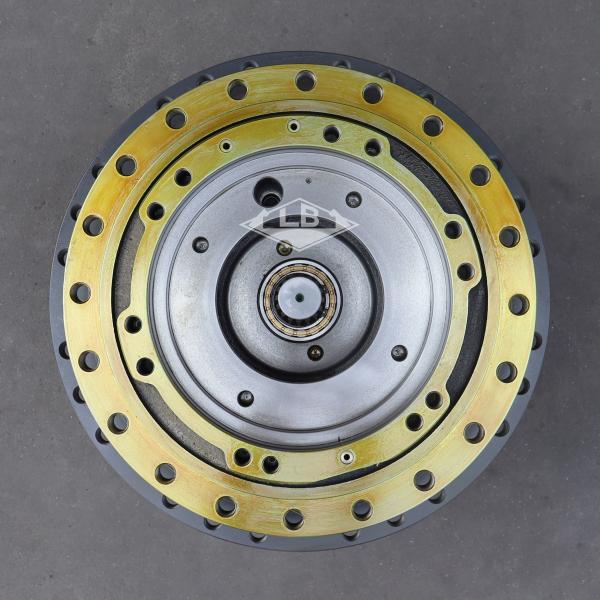

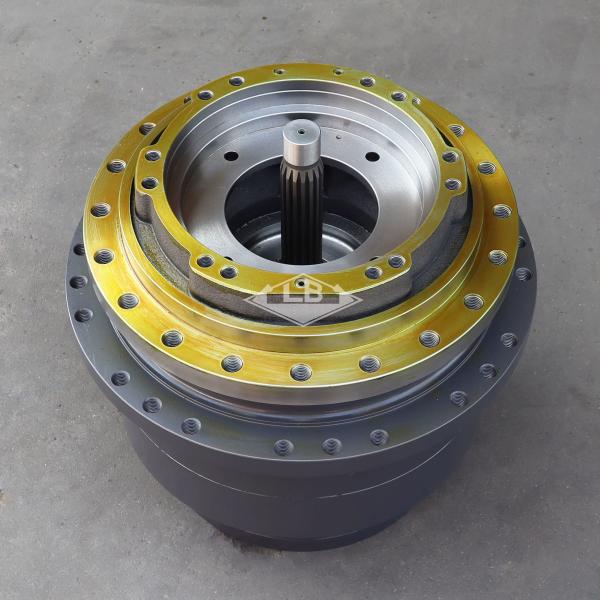

DX300 SOLAR300 Travel reduction gear 404-00098C 404-00098B 404-00100 170402-00009 Travel gearbox

PRODUCT PARAMETERS

Product Description

404-00098B 404-00100 170402-00009 Travel Gearbox DX300 SOLAR300 Travel Reduction Gear

404-00098B 404-00100 170402-00009 Travel Gearbox DX300 SOLAR300 Travel Reduction Gear

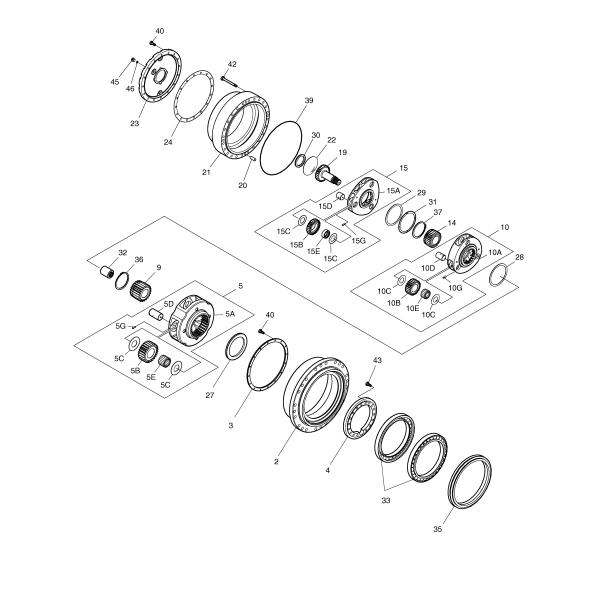

Pos.	Part No	Qty	Parts name
-.	404-00098C	[1]	TRAVEL REDUCTION GEAR
10.	K1003028	[1]	KIT;CARRIER NO.2
10A.	K1000713	[1]	CARRIER NO.2
10B.	K9000795	[3]	GEAR;PLANETARY NO.2
10C.	K9000796	[6]	WASHER;THRUST NO.2
10D.	K9000797	[3]	PIN NO.2
10E.	K1000719	[45]	ROLLER;NEEDLE
10G.	S5740900	[3]	PIN;SPRING
14.	K9000798	[1]	GEAR;SUN NO.2
15.	K1003027	[1]	KIT;CARRIER NO.1
15A.	K1000712	[1]	CARRIER NO.1
15B.	K9000799	[3]	GEAR;PLANETARY NO.1
15C.	K9000800	[6]	WASHER;THRUST NO.1
15D.	K9000801	[3]	PIN NO.1
15E.	K1000720	[3]	BEARING;NEEDLE ROLLER
15G.	S5740650	[3]	PIN;SPRING M4X20
19.	K9000802	[1]	GEAR;SUN NO.1
2.	K1000707A	[1]	HOUSING
20.	K9000803	[4]	PIN;DOWEL
21.	K9000804	[1]	GEAR;RING
22.	K9000805	[1]	WASHER;THRUST NO.4
23.	K1000716	[1]	COVER
24.	K9000806	[1]	GASKET
27.	K9000807	[1]	BUSHING;THRUST NO.3
28.	K9000808	[1]	BUSHING;THRUST NO.2
29.	K9000809	[1]	BUSHING;THRUST NO.1
3.	K9000789A	[1]	STOPPER
30.	K9000810	[1]	BUSHING;THRUST NO.4
31.	K9000811	[1]	BUSHING;OIL
32.	K9000812	[1]	COUPLING
33.	K9000813	[2]	BEARING;ANGULAR
35.	2180-6059	[1]	SEAL;FLOATING
36.	S6501150	[1]	RING;SNAP
37.	S6501100	[1]	RING;SNAP
39.	V2180-1217D174	[1]	O-RING
4.	K9000790	[1]	BEARING;GUIDE
40.	S2212061	[32]	BOLT;SOCKET M10X1.5X25
42.	S2219661	[24]	BOLT;SOCKET M14X100
43.	S2215061	[17]	BOLT;SOCKET M12X1.75X25
45.	2181-1890D3	[3]	PLUG
46.	S8000141	[3]	O-RING
5.	K1003029A	[1]	KIT;CARRIER NO.3
5A.	K9001290	[1]	CARRIER NO.3
5B.	K9000791	[4]	GEAR;PLANETARY NO.3
5C.	K9000792	[8]	WASHER;THRUST NO.3
5D.	K9001291	[4]	PIN NO.3
5E.	K1000718	[72]	ROLLER;NEEDLE
5G.	S5741240	[4]	PIN;SPRING
9.	K9000794	[1]	GEAR;SUN NO.3

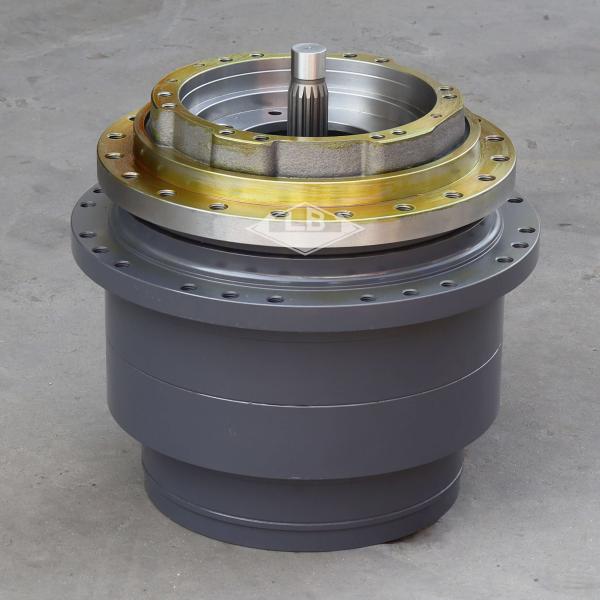

404-00098B 404-00100 170402-00009 Travel Gearbox DX300 SOLAR300 Travel Reduction Gear
