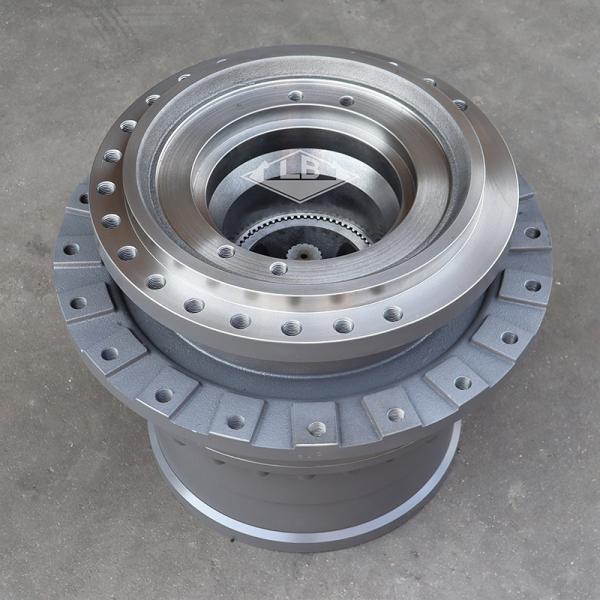

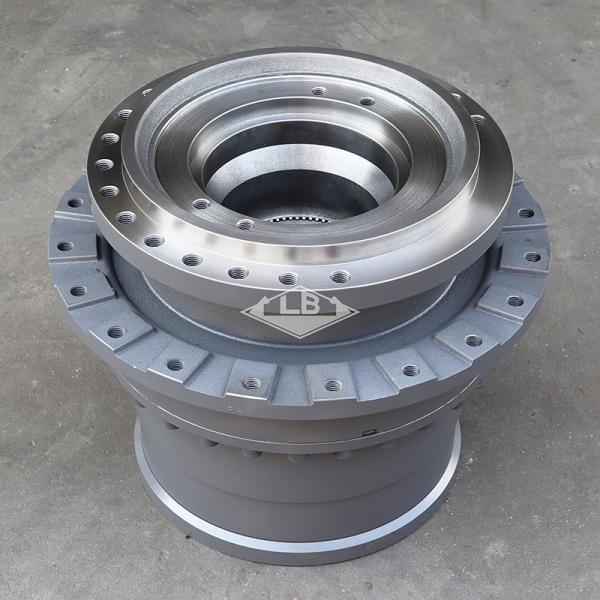

9149237 9155748 EX300-5 EX350-5 Hitachi Excavator Final Drive Travel gearbox

PRODUCT PARAMETERS

Product Description

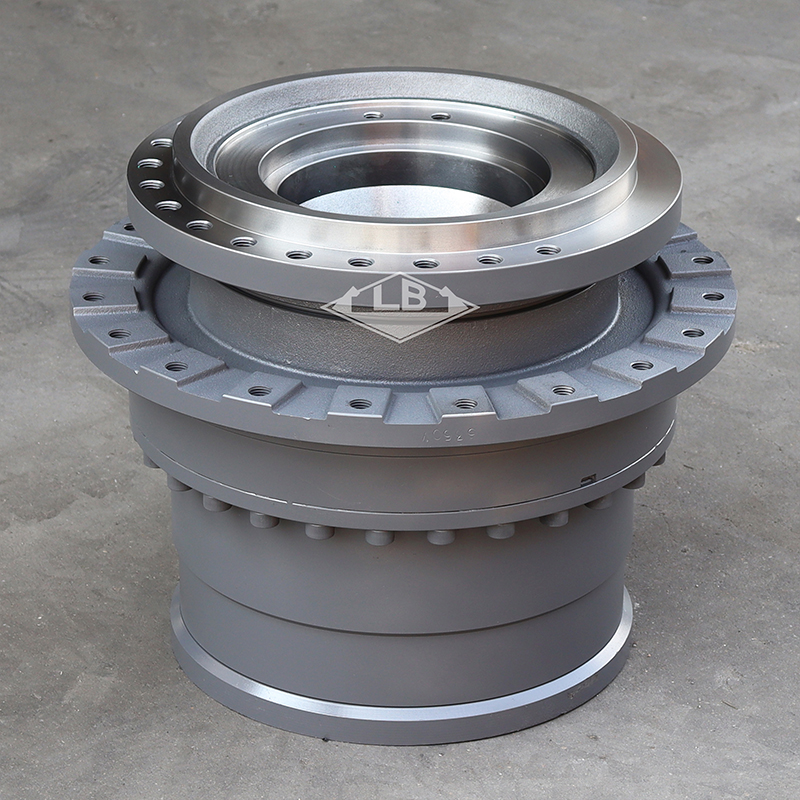

9149237 9155748 Travel Gear Box EX300-5 EX350-5 Hitachi Excavator Final Drive

9149237 9155748 Travel Gear Box EX300-5 EX350-5 Hitachi Excavator Final Drive

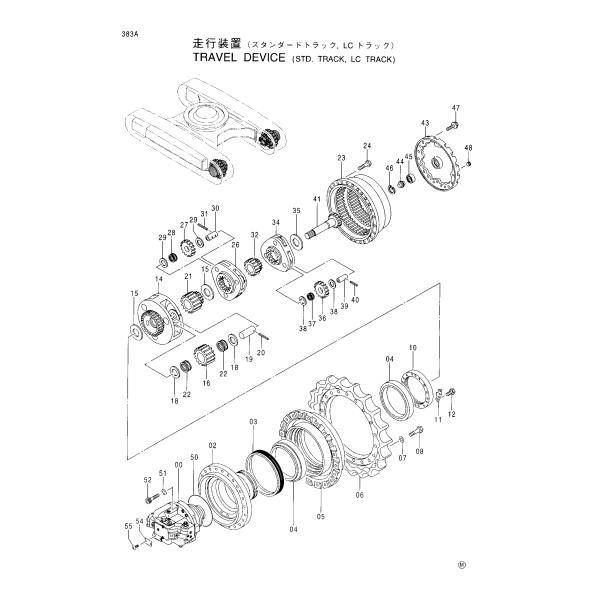

Pos.	Part No	Qty	Parts name	Comments
	(9155748)	[2]	TRAVEL DEVICE ASSY	<for transportation>
	9149237	[2]	TRAVEL DEVICE ASSY	I 9155748 <for assembly of machine>
00.	(9155694)	[1]	MOTOR;OIL	<for transportation>
00.	9149125	[1]	MOTOR;OIL	I 9155694 <for assembly of machine>
02.	1022194	[1]	HOUSING
03.	4066695	[1]	SEAL;GROUP
04.	4192975	[2]	BRG.;ROL.
05.	1022179	[1]	DRUM
06.	1022168	[1]	SPROCKET
07.	A590920	[20]	WASHER;SPRING
08.	J932060	[20]	BOLT
10.	3036256	[1]	NUT
11.	4192974	[1]	PLATE;LOCK
12.	J901225	[2]	BOLT
14.	1022198	[1]	CARRIER
15.	4192979	[2]	SPACER
16.	3075003	[3]	GEAR;PLANETARY
18.	4269470	[6]	PLATE;THRUST
19.	4269452	[3]	PIN
20.	4192021	[3]	PIN;SPRING
21.	3075005	[1]	GEAR;SUN
22.	4371402	[6]	BRG.;NEEDLE
23.	1022195	[1]	GEAR;RING
24.	J931640	[28]	BOLT
26.	1022197	[1]	CARRIER
27.	3075002	[3]	GEAR;PLANETARY
28.	4183818	[3]	BRG.;NEEDLE
29.	4284521	[6]	PLATE;THRUST
30.	4269451	[3]	PIN
31.	4197763	[3]	PIN;SPRING
32.	3074989	[1]	GEAR;SUN
34.	1022196	[1]	CARRIER
35.	4308769	[1]	SPACER
36.	3075001	[3]	GEAR;PLANETARY
37.	4269471	[3]	BRG.;NEEDLE
38.	4284520	[6]	PLATE;THRUST
39.	4269472	[3]	PIN
40.	4192020	[3]	PIN;SPRING
41.	2038915	[1]	SHAFT;PROP.
43.	2038904	[1]	COVER
44.	4277474	[1]	PIN;STOPPER
45.	4278168	[1]	BRG.;BALL
46.	930451	[1]	RING;RETAINING
47.	J011230	[16]	BOLT;SEMS
48.	4245797	[3]	PLUG
50.	4269473	[1]	O-RING
51.	4287213	[4]	WASHER;SPRING
52.	M341885	[4]	BOLT;SOCKET
54.	3053559	[1]	NAME-PLATE
55.	M492564	[2]	SCREW;DRIVE

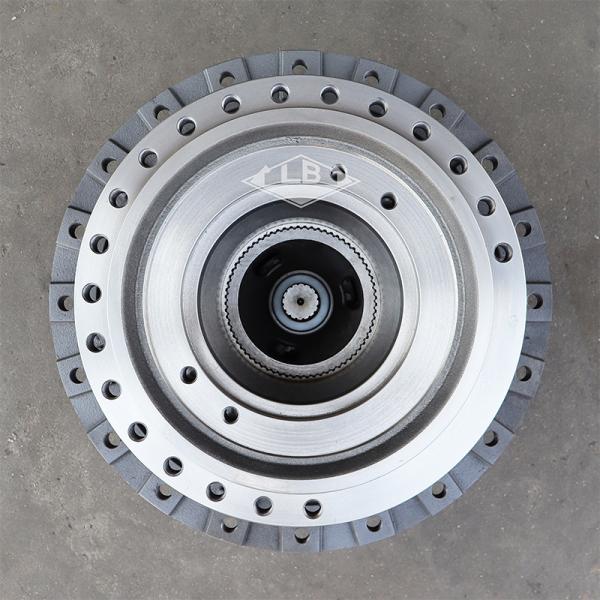

9149237 9155748 Travel Gear Box EX300-5 EX350-5 Hitachi Excavator Final Drive
