R210-7 R250-7 Final drive Travel reduction gear XKAH-00901 XKAH-01627 R210 Travel gearbox

PRODUCT PARAMETERS

Part name	R110-7 R140LC-7 R180LC-7 R210LC-7 R250LC-7 Travel gearbox
Equipment	Apply to HYUNDAI EXCAVATOR
Part no.	XKAH-00901 XKAH-01627
Frame holes	30
Sprocket holes	30
Item condition	New
Logo	LB
Gross weight	265 KG
MOQ	1 pc

Product Description

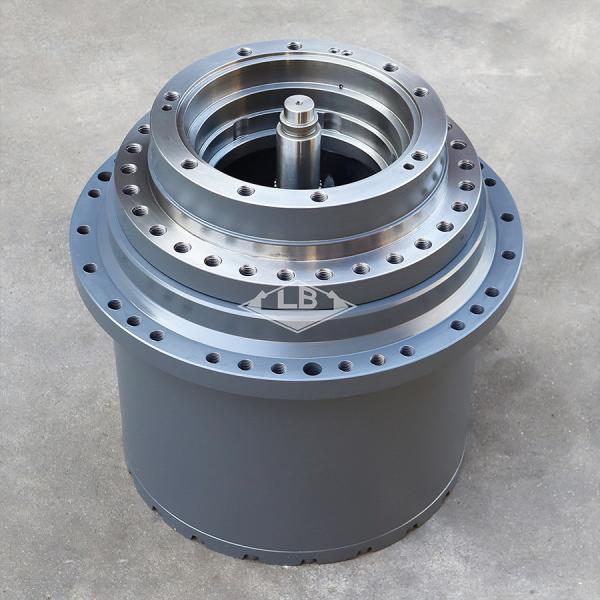

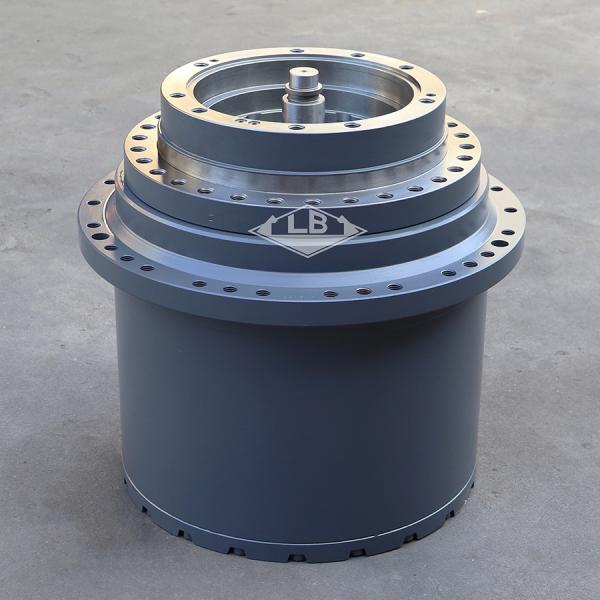

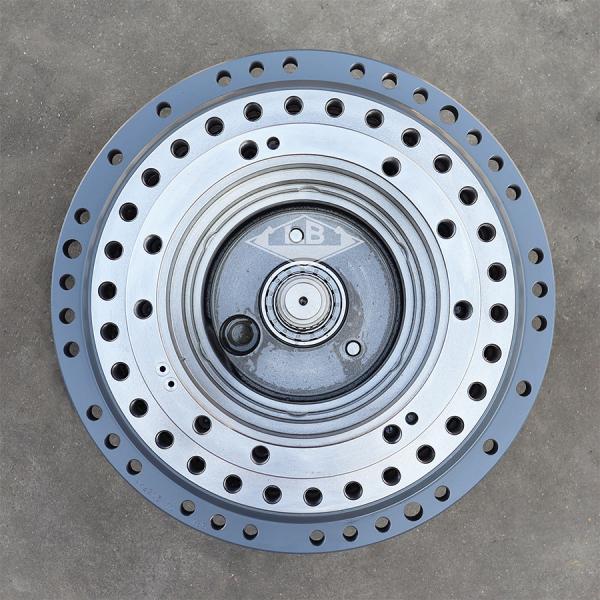

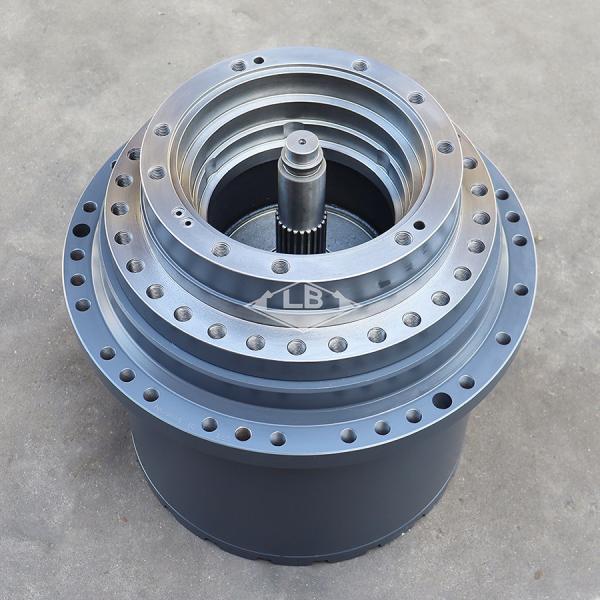

XKAH-00901 XKAH-01627 R210 HYUNDAI Travel Gearbox R210-7 R250-7 Final Drive Travel Reduction Gear

XKAH-00901 XKAH-01627 R210 HYUNDAI Travel Gearbox R210-7 R250-7 Final Drive Travel Reduction Gear

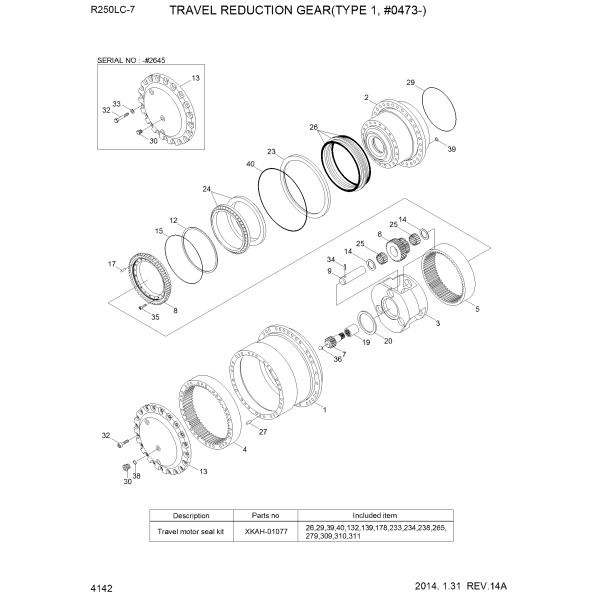

Pos.	Part No	Qty	Parts name	Comments
*.	@	[1]	TRAVEL MOTOR ASSY	SEE 4122
*-7.	XKAH-00901	[1]	REDUCTION GEAR ASSY
*-7.	XKAH-01627	[1]	REDUCTION GEAR ASSY
*-71.	XKAH-00902	[1]	HUB ASSY
*-71.	XKAH-01670	[1]	HUB ASSY
N1.	XKAH-00903	[1]	HUB
N1.	XKAH-01671	[1]	HUB
4.	XKAH-00904	[1]	RING GEAR(A)
4.	XKAH-01672	[1]	RING GEAR(A)
27.	XKAH-00431	[10]	PIN-PARALLEL
*-72.	XKAH-00905	[1]	SPINDLE ASSY
N2.	XKAH-00906	[1]	SPINDLE ASSY
8.	XKAH-00907	[1]	COUPLING GEAR
35.	XKAH-00428	[10]	BOLT-SOCKET
17.	XKAH-00437	[10]	PIN
*-73.	XKAH-00908	[1]	CARRIER ASSY
3.	XKAH-00909	[1]	CARRIER
6.	XKAH-00910	[3]	CLUSTER GEAR
9.	XKAH-00911	[3]	SHAFT
14.	XKAH-00912	[6]	COLLAR-THRUST
25.	XKAH-00913	[6]	BEARING-NEEDLE
5.	XKAH-00914	[1]	RING GEAR(B)
7.	XKAH-00445	[1]	GEAR-SUN
12.	XKAH-00442	[1]	PIECE-DISTENCE
13.	XKAH-00915	[1]	COVER
13.	XKAH-01674	[1]	COVER
15.	XKAH-00439	[1]	RING
19.	XKAH-00022	[1]	COUPLING
20.	XKAH-00436	[2]	PLATE-THRUST
23.	XKAH-00435	[1]	SEAL-RING
24.	XKAH-00434	[2]	BEARING-BALL
K26.	XKAH-00916	[2]	SEAL-FLOATING
K26.	XKAH-01675	[2]	SEAL-FLOATING
K29.	XKAH-00028	[1]	O-RING
30.	XKAH-00338	[3]	PLUG-PT
30.	XKAH-00032	[3]	PLUG-PF
32.	XKAH-00430	[20]	BOLT-HEX
32.	XKAH-01676	[20]	SOKET BOLT
33.	XKAH-00336	[20]	WASHER-SPRING
34.	XKAH-00429	[3]	PIN-PARALLEL
36.	XKAH-00033	[1]	BALL-STEEL
K39.	XKAH-00194	[2]	O-RING
K40.	XKAH-00427	[1]	O-RING
K.	XKAH-01077	[1]	SEAL KIT	SEE ILLUST
N.	@	[1]	NOT SUPPLIED PARTS

XKAH-00901 XKAH-01627 R210 HYUNDAI Travel Gearbox R210-7 R250-7 Final Drive Travel Reduction Gear
