DH220-5 EC210 Final drive VOE14528733 VOE14693056 VOE14693057 SA7117-30050 EC210 Travel gearbox

PRODUCT PARAMETERS

Product Description

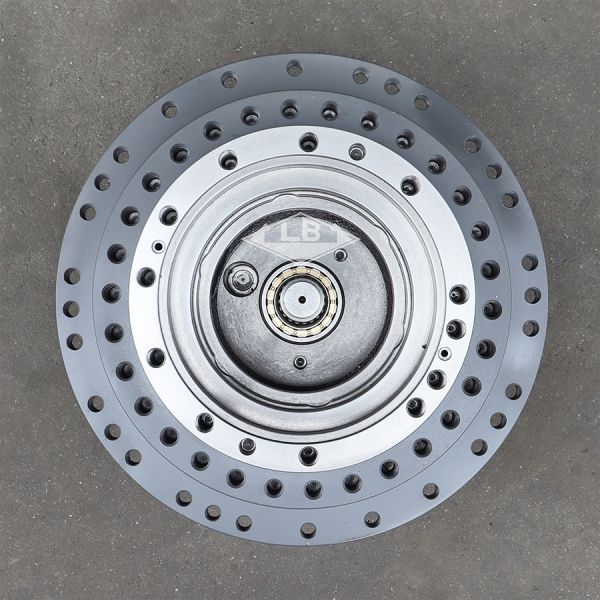

SA7117-30050 EC210 Travel Gear Box VOE14528733 VOE14693056 VOE14693057 DH220-5 EC210 Final Drive

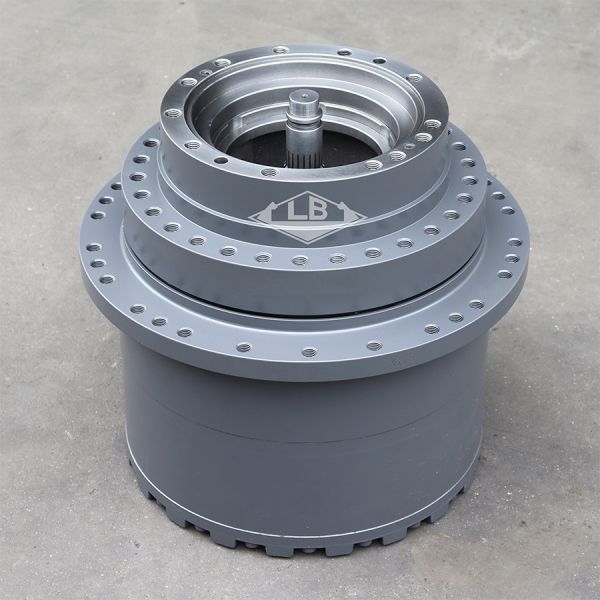

SA7117-30050 EC210 Travel Gear Box VOE14528733 VOE14693056 VOE14693057 DH220-5 EC210 Final Drive

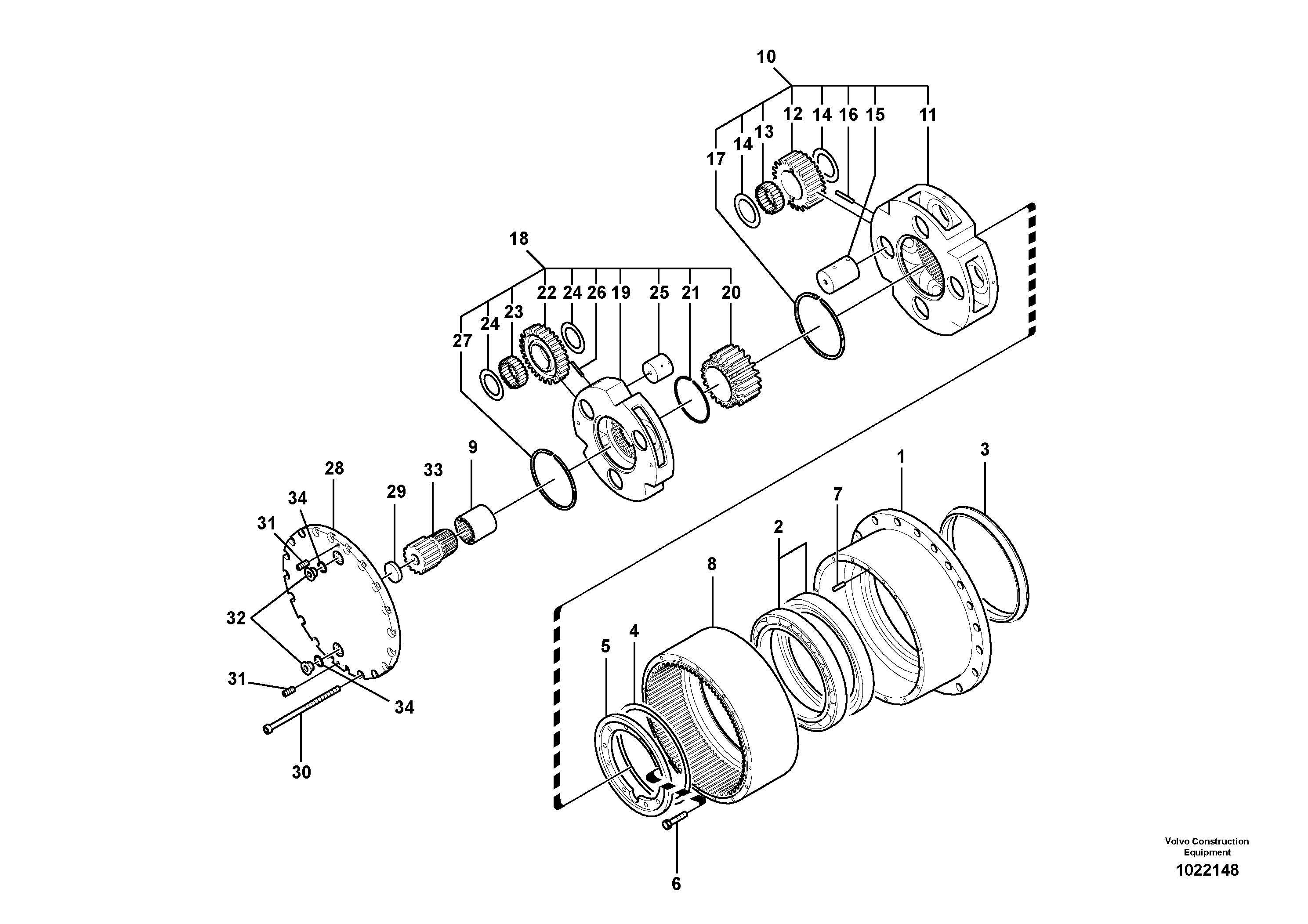

Pos.	Part No	Qty	Parts name	Comments
	VOE14528733	[1]	Travel gearbox	S/N -83936/-51379
	VOE14693056	[1]	Travel gearbox	S/N 83937-/51380-
1.	VOE14522475	[1]	Housing	S/N -83936/-51379
	VOE14693058	[1]	Housing	S/N 83937-/51380-
2.	SA7117-30110	[2]	Ball bearing
3.	VOE14729840	[1]	Seal
4.	SA7117-30140	[1]	Shim	0,1 Thick
	SA7117-30150	[1]	Shim	0,9 Thick
	SA7117-30160	[1]	Shim	1,0 Thick
	SA7117-30170	[1]	Shim	1,2 Thick
5.	SA7117-30130	[1]	Retainer
6.	VOE997446	[12]	Hexagon screw
7.	SA9324-21212	[2]	Pin
8.	SA7117-30190	[1]	Ring gear
9.	SA7117-30180	[1]	Flexible coupling
10.	VOE14528723	[1]	Planet carrier
11.	SA7117-30210	[1]	Planet carrier
12.	SA7117-30240	[4]	Planetary Gear
13.	SA7117-30230	[8]	Needle bearing
14.	SA7117-30220	[8]	Thrust washer
15.	VOE14528724	[4]	Pin
16.	SA9325-06012	[4]	Spring pin
17.	SA7117-30260	[1]	Thrust ring
18.	VOE14528727	[1]	Planet carrier
19.	VOE14528728	[1]	Planet carrier
20.	SA7117-30290	[1]	Sun gear
21.	SA7117-30300	[1]	Ring
22.	SA7117-30340	[3]	Planetary gear
23.	SA7117-30320	[3]	Needle bearing
24.	SA7117-30310	[6]	Thrust washer
25.	SA7117-30360	[3]	Pin
26.	VOE951955	[3]	Spring pin
27.	SA7117-30260	[1]	Thrust ring
28.	VOE14602566	[1]	Cover
29.	SA7117-15230	[1]	Pad
30.	SA7117-30370	[20]	Hexagon screw
31.	SA9023-11004	[2]	Set screw
32.	VOE14883848	[0002]	Plug
33.	SA7117-30330	[1]	Sun gear
34.	VOE983524	[0002]	O-ring
100.	VOE14526220	[1]	Overhaul kit

SA7117-30050 EC210 Travel Gear Box VOE14528733 VOE14693056 VOE14693057 DH220-5 EC210 Final Drive
