Specifications
Description

R220-9 R260-9 Excavator Final drive Travel reduction gearbox 39Q6-42100 39Q6-42101 39Q7-42100 39Q7-42101 R220-9 Travel g

PRODUCT PARAMETERS
Part name R220-9 R260-9 Travel gearbox
Equipment Apply to Hyundai EXCAVATOR
Part no. 39Q6-42100 39Q6-42101 39Q7-42100 39Q7-42101
Frame holes 20
Sprocket holes 20
Item condition New
Logo LB
Gross weight 345KG
MOQ 1 pc

Product Description

R220-9 R260-9 Travel Gearbox Excavator Final Drive 39Q6-42100 39Q6-42101R220-9 R260-9 Travel Gearbox Excavator Final Drive 39Q6-42100 39Q6-42101R220-9 R260-9 Travel Gearbox Excavator Final Drive 39Q6-42100 39Q6-42101

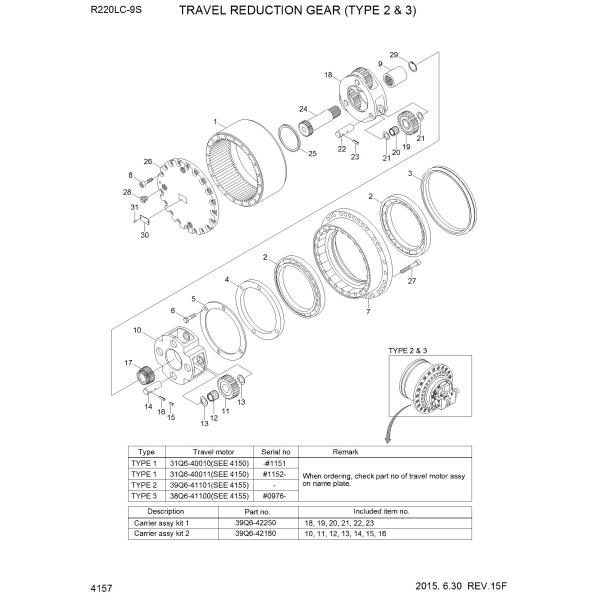

Parts on group TRAVEL REDUCTION GEAR (TYPE 2 & 3):

R220-9 R260-9 Travel Gearbox Excavator Final Drive 39Q6-42100 39Q6-42101

Pos. Part No Qty Parts name Comments
*. @ [1] TRAVEL MOTOR ASSY SEE 4155
*-2. 39Q6-42100 [1] TRAVEL REDUCTION GEAR
*-2. 39Q6-42101 [1] TRAVEL REDUCTION GEAR
1. 39Q6-42110 [1] GEAR-RING
2. 39Q6-42120 [2] BEARING-ANG.BALL
3. 39Q6-42130 [2] SEAL ASSY-FLOATING
4. 39Q6-42140 [1] RING-NUT
5. 39Q6-42150 [1] PLATE-LOCK
6. S017-120166 [4] BOLT-HEX
7. 39Q6-42160 [1] HOUSING
8. S129-070206 [20] BOLT-SOCKET,UNIFIED
9. 39Q6-42170 [1] COUPLING
k10. 39Q6-42190 [1] CARRIER 2
k11. 39Q6-42200 [4] GEAR-PLANATARY 2
k12. 39Q6-42210 [4] BEARING-NEEDLE 2
k13. 39Q6-42220 [8] WASHER-THRUST 2
K14. 39Q6-42230 [4] PIN-CARRIER 2
K15. S472-800164 [4] PIN-SPRING
K16. 39Q6-42350 [4] PIN-SOLID 2
17. 39Q6-42240 [1] GEAR-SUN 2
K18. 39Q6-42260 [1] CARRIER 1
K19. 39Q6-42270 [3] GEAR-PLANETARY 1
K20. 39Q6-42280 [3] BEARING-NEEDLE 1
K21. 39Q6-42290 [6] WASHER-THRUST 1
K22. 39Q6-42300 [3] PIN-CARRIER 1
K23. S472-600364 [3] PIN-SPRING
24. 39Q6-42310 [1] GEAR-SUN 1
25. 39Q6-42320 [1] PLATE-THRUST
26. 39Q6-42330 [1] COVER
27. S109-16110D [24] BOLT-SOCKET
28. P220-110205 [3] PLUG-HEX
29. S602-035001 [1] RING-RETAINING
30. 39Q6-42341 [1] NAME PLATE
30. 39Q6-42342 [1] NAME PLATE
30. 39Q6-42342 [1] NAME PLATE
31. 39Q6-41800 [2] RIVET
32. S631-024001 [3] O-RING
K. 39Q6-42250 [1] CARRIER ASSY KIT 1 SEE ILLUST
K. 39Q6-42180 [1] CARRIER ASSY KIT 2 SEE ILLUST
*-1. @ [1] TRAVEL MOTOR UNIT SEE 4155
K. 39Q6-42250 [1] CARRIER ASSY KIT 1 SEE ILLUST
K. 39Q6-42180 [1] CARRIER ASSY KIT 2 SEE ILLUST
