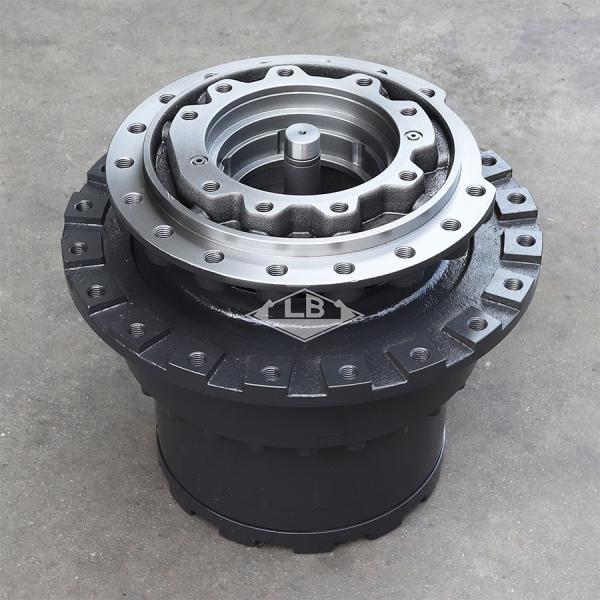

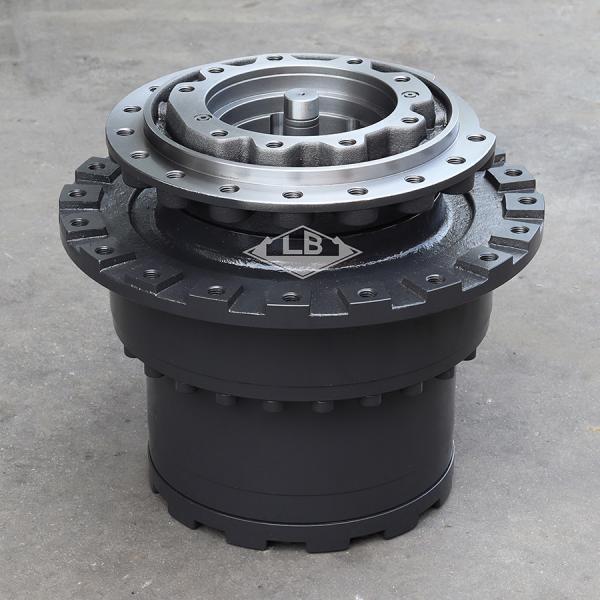

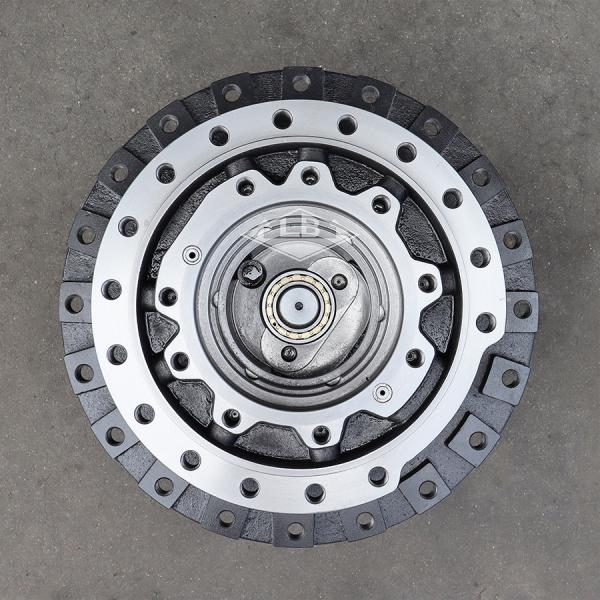

HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3
HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3
HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3
HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3
HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3
HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3
HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3
HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3
Specifications
Description

HITACHI ZX240-3 Final drive Travel reduction gearbox 9243839 9256989 ZX240-3 Travel gearbox

PRODUCT PARAMETERS
Part name ZX240-3 Travel gearbox
Equipment Apply to HITACHI EXCAVATOR
Part no. 9243839 9256989
Frame holes 16
Sprocket holes 20
Item condition New
Logo LB
Gross weight 248KG
MOQ 1 pc

Product Description

HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3

Parts on group TRAVEL DEVICE:

HITACHI ZX240-3 Final drive reduction Travel gearbox 9243839 9256989 ZX240-3

Pos. Part No Qty Parts name Comments
9243839 [1] TRAVEL DEVICE I 9256989 <for assembly of machine>
(9256989) [1] TRAVEL DEVICE <for transportation>
00. 9242907 [1] MOTOR;OIL I 9257553 <for assembly of machine>
00. (9257553) [1] MOTOR;OIL <for transportation>
02. 4634693 [1] SEAL;GROUP
03. 4246793 [2] BRG.;ROL.
04. 1032488 [1] DRUM
05. 1032489 [1] SPROCKET
06. J932055 [20] BOLT
07. A590920 [20] WASHER;SPRING
09. 3086531 [1] NUT
10. 4436242 [1] PIN;KNOCK
11. 4628766 [6] BRG.;NEEDLE
12. 1032487 [1] CARRIER
13. 3103053 [3] GEAR;PLANETARY
15. 4624830 [6] PLATE;THRUST
16. 4139975 [3] PIN
17. 4116309 [3] PIN;SPRING
18. 3103054 [1] GEAR;SUN
20. 1032490 [1] GEAR;RING
21. J931640 [28] BOLT
23. 1032486 [1] CARRIER
24. 4183819 [1] SPACER
25. 3103052 [3] GEAR;PLANETARY
26. 4445529 [3] BRG.;NEEDLE
27. 4210851 [6] PLATE;THRUST
28. 4309995 [3] PIN
29. 4246358 [3] PIN;SPRING
30. 3082149 [1] GEAR;SUN
32. 1032485 [1] CARRIER
33. 4401293 [1] SPACER
34. 3103051 [3] GEAR;PLANETARY
35. 4406589 [3] BRG.;NEEDLE
36. 4148080 [6] PLATE;THRUST
37. 4210853 [3] PIN
38. 4173093 [3] PIN;SPRING
39. 2049585 [1] SHAFT;PROP.
41. 2051690 [1] COVER
42. 4478346 [1] PIN;STOPPER
43. 4609016 [12] BOLT;SEMS
44. 4245797 [3] PLUG
46. +++++++ [1] NAME-PLATE
47. M492564 [2] SCREW;DRIVE
