ZX450-3 ZX470-3 Travel reduction gear 9251680 9263595 9186918 9203565 ZX450 Travel gearbox

PRODUCT PARAMETERS

Product Description

9251680 9263595 9186918 9203565 ZX450 Travel Gearbox ZX450-3 ZX470-3 Travel Reduction Gear

9251680 9263595 9186918 9203565 ZX450 Travel Gearbox ZX450-3 ZX470-3 Travel Reduction Gear

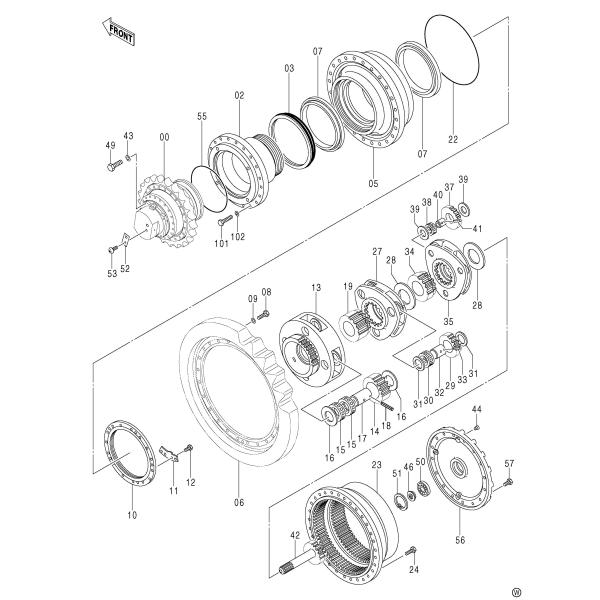

Pos.	Part No	Qty	Parts name	Comments
00-57.	9186918	[2]	TRAVEL DEVICE	I 9203565
			(for assembly of machine)
00-57.	9203565	[2]	TRAVEL DEVICE
			(for transportation)
00.	4431549	[1]	MOTOR;OIL	I 4481832
00.	4481832	[1]	MOTOR;OIL	I 4637796
00.	4637796	[1]	MOTOR;OIL
02.	1027942	[1]	HOUSING
03.	4344155	[1]	SEAL;GROUP
05.	1015882	[1]	DRUM
06.	1010956	[1]	SPROCKET
07.	4200411	[2]	BRG.;ROL.
08.	J932270	[24]	BOLT
09.	A590922	[24]	WASHER;SPRING
10.	3043140	[1]	NUT
11.	3043141	[1]	PLATE;LOCK
12.	J901222	[2]	BOLT
13.	1015883	[1]	CARRIER
14.	3053195	[4]	GEAR;PLANETARY
15.	4452484	[8]	BRG.;NEEDLE
16.	4219595	[8]	PLATE;THRUST
17.	4263903	[4]	PIN
18.	4207947	[4]	PIN;SPRING
19.	3053786	[1]	GEAR;SUN
22.	4203187	[1]	O-RING
23.	1018360	[1]	GEAR;RING
24.	J931845	[30]	BOLT
27.	1015523	[1]	CARRIER
28.	4263905	[2]	SPACER
29.	3053194	[3]	GEAR;PLANETARY
30.	4452483	[3]	BRG.;NEEDLE
31.	4201968	[6]	PLATE;THRUST
32.	4263902	[3]	PIN
33.	4203180	[3]	PIN;SPRING
34.	3053785	[1]	GEAR;SUN
35.	1015505	[1]	CARRIER
37.	3053098	[3]	GEAR;PLANETARY
38.	4452480	[3]	BRG.;NEEDLE
39.	4269295	[6]	PLATE;THRUST
40.	4263901	[3]	PIN
41.	4222030	[3]	PIN;SPRING
42.	2044685	[1]	SHAFT;PROP.
43.	A590918	[4]	WASHER;SPRING
44.	4279343	[3]	PLUG
46.	4288767	[1]	PIN;STOPPER
49.	J911860	[4]	BOLT
50.	4274541	[1]	BRG.;BALL
51.	991725	[1]	RING;RETAINING
52.	3053559	[1]	NAME-PLATE
53.	M492564	[2]	SCREW;DRIVE
55.	4271596	[1]	O-RING
56.	1023348	[1]	COVER
57.	4373463	[16]	BOLT;SHOE
101.	J932200	[40]	BOLT
102.	4089822	[40]	WASHER

9251680 9263595 9186918 9203565 ZX450 Travel Gearbox ZX450-3 ZX470-3 Travel Reduction Gear
