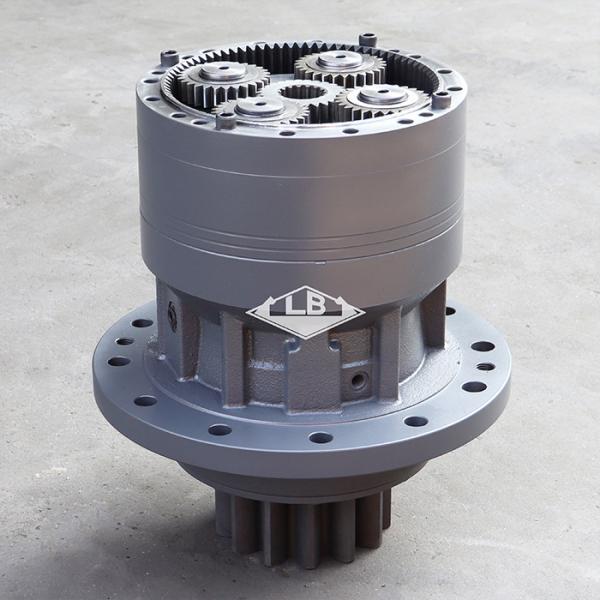

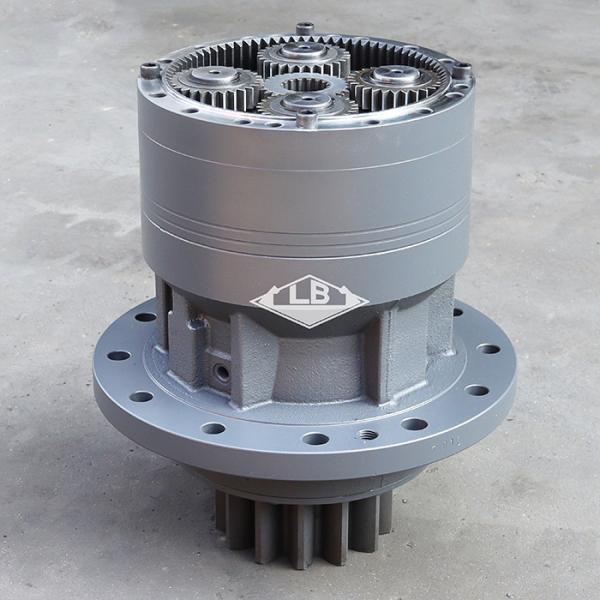

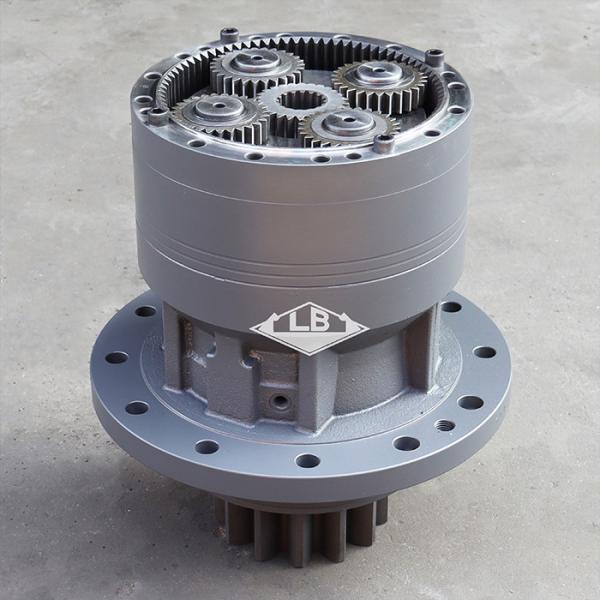

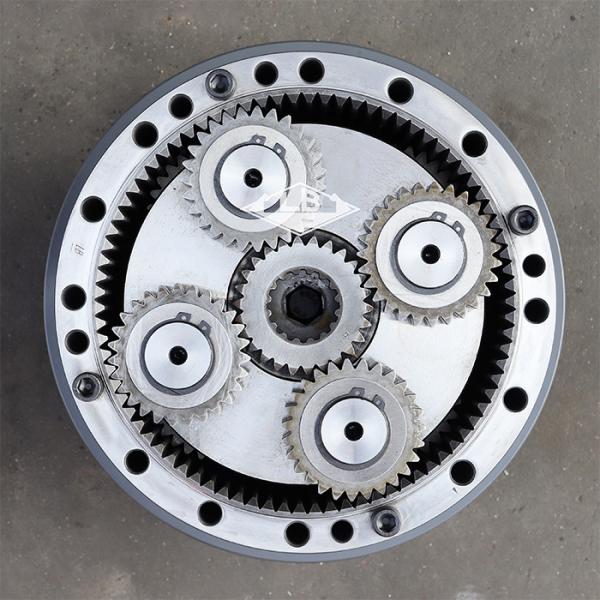

SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox
SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox
SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox
SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox
SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox
SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox
SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox
SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox
Specifications
Description
PRODUCT PARAMETERS
Part name
 SOLAR225 DX225 DH225 Swing gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. K1004160A 130426-00004 K1038203 404-00097C
NO.1 sun gear spline teeth 16 splines
Swing pinion shaft teeth 13T
Item condition New
Logo LB
Gross weight 180 KG
MOQ 1 pc


Product Description

SOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearboxSOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearboxSOLAR225 DX225 DH225 SWING REDUCTION GEAR K1004160A 130426-00004 2404-1063 130426-00010 K1038203 404-00097C DX225 swing gearbox

Pos. Part No Qty Parts name Comments
-. 404-00097C [1] REDUCTION GEAR ASS'Y
1. K1001235 [1] CASING
10. 230-00061 [1] CARRIER NO.2
11. 2114-1901A [4] WASHER;THRUST NO.2
12. 104-00050 [4] GEAR;PLANET NO.2
13. 110-00219 [4] BUSH NO.2
14. 123-00437A [4] PIN NO.2
15. S5741341 [4] PIN;SPRING
16. S0121061 [1] BOLT
17. 114-00548 [1] WASHER;THRUST NO.3
18. 104-00048 [1] GEAR;SUN NO.2
19. 2705-1030 [4] PIN;KNOCK
2. 2112-1248E [1] SHAFT;DRIVE
20. 230-00060A [1] CARRIER NO.1
21. 114-00527 [3] WASHER;THRUST NO.1
22. 104-00049A [3] GEAR;PLANET NO.1
23. 123-00435A [3] PIN ASS'Y NO.1
24. S2217471 [16] BOLT;SOCKET
25. 104-00047A [1] GEAR;SUN NO.1
26. S6500450 [1] RING;SNAP
27. 2181-1116D2 [2] PLUG
28. 2181-1116D4 [1] PLUG
29. 2140-1406 [1] PIPE;LEVEL GAUGE
3. 2412-1040 [1] PLATE
30. 2119-1065 [1] GAUGE;LEVEL
31. S5231090 [1] WASHER;DOUBLE TAP
32. 140-01374A [4] PIPE
33. 120-00144 [8] BOLT
4. 2109-9033 [1] BEARING;ROLLER
5. 2891-1421B [1] PLATE;COVER
6. S6500380 [3] RING;SNAP
7. 2180-1254 [1] SEAL;OIL
8. 109-00174 [1] BEARING;ROLLER
9. 104-00051A [1] GEAR;RING
