Specifications
Description
PRODUCT PARAMETERS
Part name

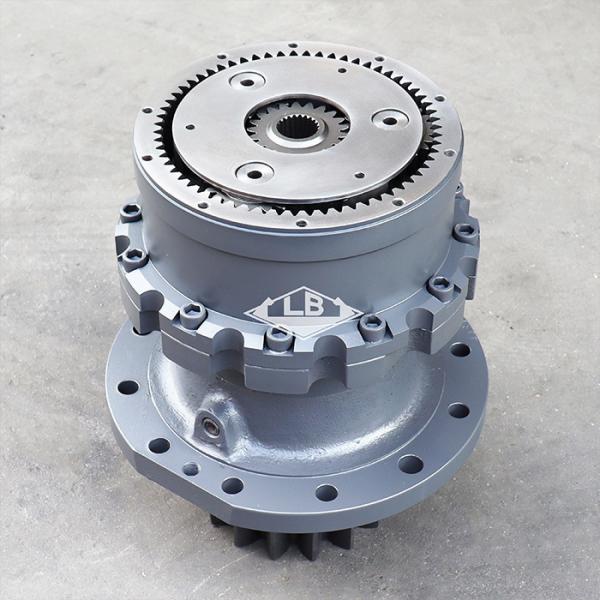

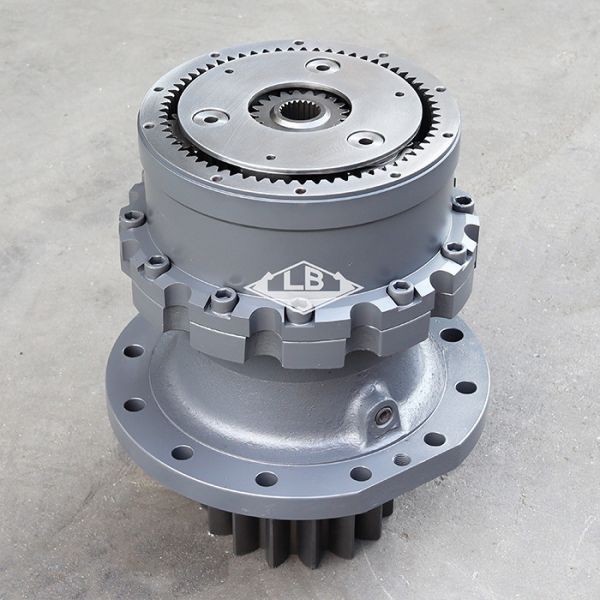

 R480LC-9 R520LC-9 Swing gearbox
Equipment Apply to HYUNDAI EXCAVATOR
Part no. 39QB-12100 39QB-12101 39QB-12102

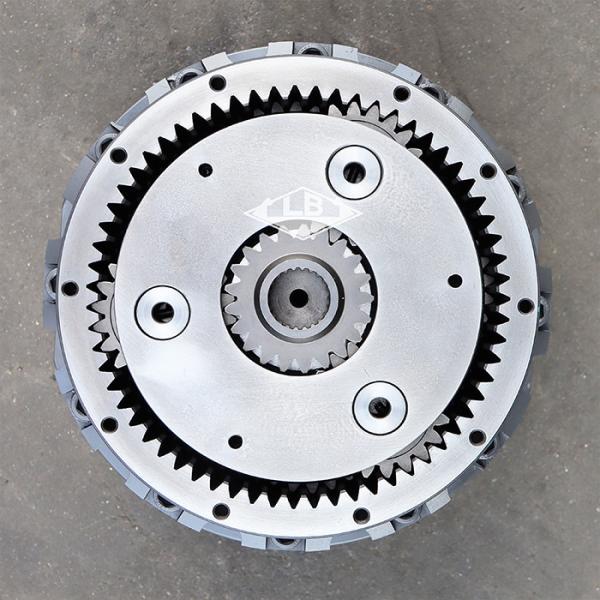

NO.1 sun gear spline teeth 22 splines
Swing pinion shaft teeth 15 T
Item condition New
Logo LB
Gross weight --
MOQ 1 pc


Product Description

R480LC-9 R520LC-9 SWING REDUCTION GEAR 39QB-12100 39QB-12101 39QB-12102 R480-9 SWING GEARBOXR480LC-9 R520LC-9 SWING REDUCTION GEAR 39QB-12100 39QB-12101 39QB-12102 R480-9 SWING GEARBOXR480LC-9 R520LC-9 SWING REDUCTION GEAR 39QB-12100 39QB-12101 39QB-12102 R480-9 SWING GEARBOX

Parts on group SWING REDUCTION GEAR (TYPE 2):

Pos. Part No Qty Parts name Comments
*-2. 39QB-12100 [1] SWING REDUCTION GEAR
*-2. 39QB-12101 [1] SWING REDUCTION GEAR
*-2. 39QB-12102 [1] SWING REDUCTION GEAR
1. 39QB-12110 [1] GEAR-RING
2. 39QB-12120 [1] SHAFT-DRIVE
3. 39Q6-12130 [1] BEARING-TAPER.MAIN
4. 39Q6-12140 [1] BEARING-TAPER
5. 39Q6-12150 [1] NUT-RING
6. 39QB-12160 [1] PLATE-LOCK,NUT RING
7. S017-120166 [4] BOLT-HEX
8. 39QB-12170 [1] CASING
8. 39QB-12171 [1] CASING
9. S109-100306 [10] BOLT-SOCKET
K10. 39QB-12190 [1] CARRIER 2
K11. 39QB-12200 [4] GEAR-PLANETARY 2
K12. 39QB-12210 [8] BEARING-NEEDLE 2
K13. 39QB-12220 [8] WASHER-THRUST 2
K14. 39QB-12230 [4] PIN-CARRIER 2
K15. S472-800364 [4] PIN-SPRING
K16. 39QB-12240 [1] GEAR-SUN 2
K17. 39QB-12260 [1] CARRIER 1
K18. 39QB-12270 [3] GEAR-PLANETARY 1
K19. 39Q6-12280 [3] BEARING-NEEDLE 1
K20. 39Q6-12290 [3] WASHER-THRUST 1,UPP
K21. 39Q6-12300 [3] WASHER-THRUST 1,LOW
K22. 39Q6-12310 [3] PIN-CARRIER 1
K23. S472-600324 [3] PIN-SPRING
K24. 39QB-12320 [1] GEAR-SUN 1
K25. 39QB-12330 [2] PLATE-THRUST
26. 39Q6-12340 [1] SLEEVE
27. S632-120001 [1] O-RING
28. 39Q6-12350 [1] SEAL-OIL
29. 39Q6-41450 [2] PIN-PARALLEL
30. S109-16045D [12] BOLT-SOCKET
31. 39QB-12360 [1] NAME PLATE
31. 39QB-12361 [1] NAME PLATE
31. 39QB-12362 [1] NAME PLATE
32. 39Q6-41800 [2] RIVET
33. P220-430204 [1] PLUG-HEX
K. 39QB-12250 [1] CARRIER ASSY KIT 1 SEE ILLUST
K. 39QB-12180 [1] CARRIER ASSY KIT 2 SEE ILLUST
